Size: 1/8"-4" threaded and socket weld type
Pressure:
Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)
Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)
Conection: Thread (NPT, BSP,RP, G) ,Socket Welding
Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.
Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;
Material: Stainless steel, Carbon steel and Duplex stainless steel

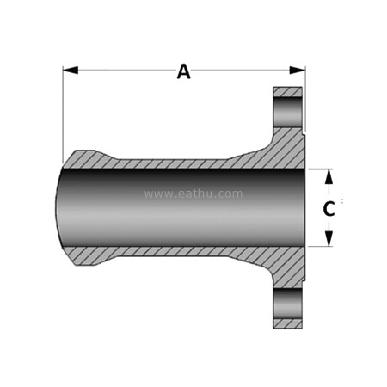

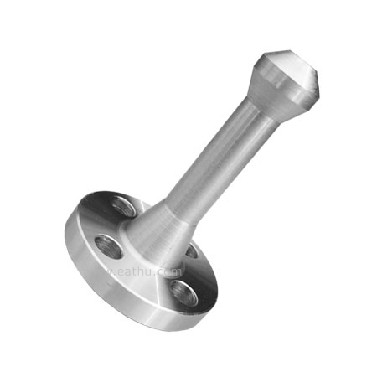

Flanged Nipple Outlet Dimension
PIPE | 150# | 300# | 600# | 1500# | 2500# | |||||
SIZE | A | C | A | C | A | C | A | C | A | C |
1/2 | 5.906 | --- | 5.906 | --- | 5.906 | --- | 5.906 | --- | 5.906 | --- |
3/4 | 5.906 | --- | 5.906 | --- | 5.906 | --- | 5.906 | --- | 5.906 | --- |
1 | 5.906 | --- | 5.906 | --- | 5.906 | --- | 5.906 | --- | 5.906 | --- |
2001/1/4 | 5.906 | --- | 5.906 | --- | 5.906 | --- | 5.906 | --- | 5.906 | --- |
2001/1/2 | 5.906 | --- | 5.906 | --- | 5.906 | --- | 5.906 | --- | 5.906 | --- |
2 | 5.906 | --- | 5.906 | --- | 5.906 | --- | 5.906 | --- | 6.496 | --- |
Note:All dimensions are in inches • Weights are based on Carbon Steel
