What is One-Way Valve
A one-way valve, also called a check valve, is a tool that lets liquid or gas flow one way. It stops flow from going backward. It makes sure the liquid or gas moves from the entry to the exit. It doesn’t let it return. The main job of a one-way valve is to keep flow going one way. It stops reverse flow in pipes. These valves are key in fields like plumbing, oil and gas, and chemical plants.
One-way valves come in different shapes. These include straight or right-angle designs. They can connect to pipes with threads, flanges, or plates. They are used in water systems and other places where flow direction matters.
People often use “one-way valve” and “check valve” to mean the same thing. But there are small differences. A one-way valve is a control-type valve. It manages pressure in the system. Its main goal is to keep pipe pressure steady. A check valve is a non-control type of one-way valve. Its job is to stop backflow. It doesn’t focus on holding system pressure. Check valves use the flow of the liquid or gas to open or close. Check valves can install in many positions, include flat, upright, or slanted pipes. But you must match the flow direction to the arrow on the valve body.
One-way valves often have a pointed core. This improves sealing. It’s great for jobs needing exact flow control. Check valves come in types like spring-loaded, gravity-based, or swing-style. Each fits specific uses.
A one-way valve works by letting liquid or gas flow one way. It blocks reverse flow. When pressure comes from the entry side, it pushes past spring force and friction. This opens the valve core. Liquid or gas flows smoothly from entry to exit.
To keep working well, there must be a pressure difference between entry and exit. If pressure comes from the exit side, the valve stays closed. Its design stops any backward flow.
Check valves work automatically. They use liquid pressure differences. These act on parts like discs or springs to open or close. When liquid flows forward, it pushes these parts. This opens a path. If liquid tries to flow backward, it presses the parts to seal tightly.
The main goal of check valves is to protect systems. They stop backflow problems like contamination or equipment harm. They are used in places like water networks and chemical plants. Keeping one-way flow is crucial there.
One-way valves are grouped by their inner parts. Ball valve type and cone valve type are two common kinds. Ball valve type one-way valves use a round ball to close. The ball is pushed against the valve seat by gravity or a spring. This ensures liquid flows one way. When forward pressure hits, the ball moves. This lets liquid pass. When pressure stops or reverses, the ball seals the valve.
Cone valve type one-way valves have a cone-shaped part. It works similarly. The cone’s tapered shape gives great sealing. This is good for high-pressure jobs where leaks must be stopped.
Straight-through and right-angle one-way valves differ in shape and setup. Straight-through valves let liquid flow in a straight line. This reduces resistance. It ensures fast flow. They’re great for systems needing clear paths.
Right-angle valves turn the flow 90 degrees. This is useful in tight spaces. It changes flow direction without losing function.

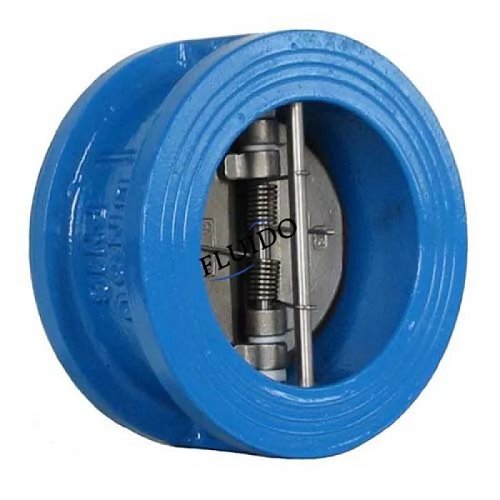

Spring-type check valves use a spring-loaded system. Forward pressure compresses the spring. This opens the valve for liquid to pass. When pressure drops or reverses, the spring pushes the disc back. This stops backflow. These are used where exact control over reverse flow is needed.
Gravity-type check valves use gravity to close their parts.

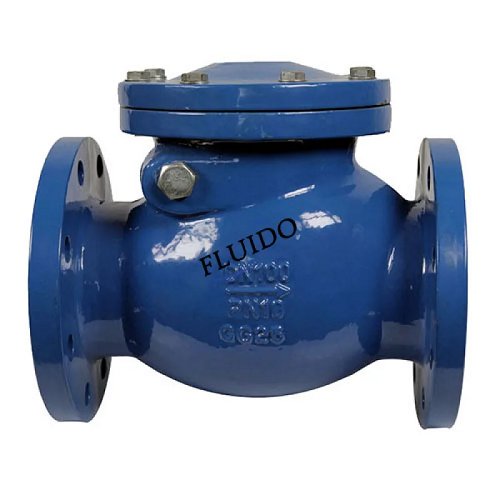

Swing-type check valves are a type of valve used to prevent backflow in piping systems. It operates automatically, allowing fluid to flow in one direction while preventing it from flowing backward.
Installing one-way and check valves correctly is key for good performance. You must match the liquid’s flow direction to the arrow on the valve body. Wrong alignment can block normal work. It can also hurt system efficiency.
Also, consider pipe size, pressure, and material fit when choosing a valve. For high-pressure systems, cone-type one-way valves may work better. They seal well.
Regular upkeep checks after installation are important. They spot issues like leaks or worn parts. Proper cleaning and lubrication of moving parts can make valves last longer.
FLUIDO offers all kinds of check valves and one-way valves, we focus on quality and customer happiness makes them a great choice for all your work needs. With over 20 years serving 35+ countries, FLUIDO offers many high-quality products. They meet diverse work needs.
All FLUIDO factories follow ISO9001 quality standards. Every product is tested before shipping. Whether you need custom pipe fittings or special valve solutions, FLUIDO delivers reliable items. They have European CE certification.
