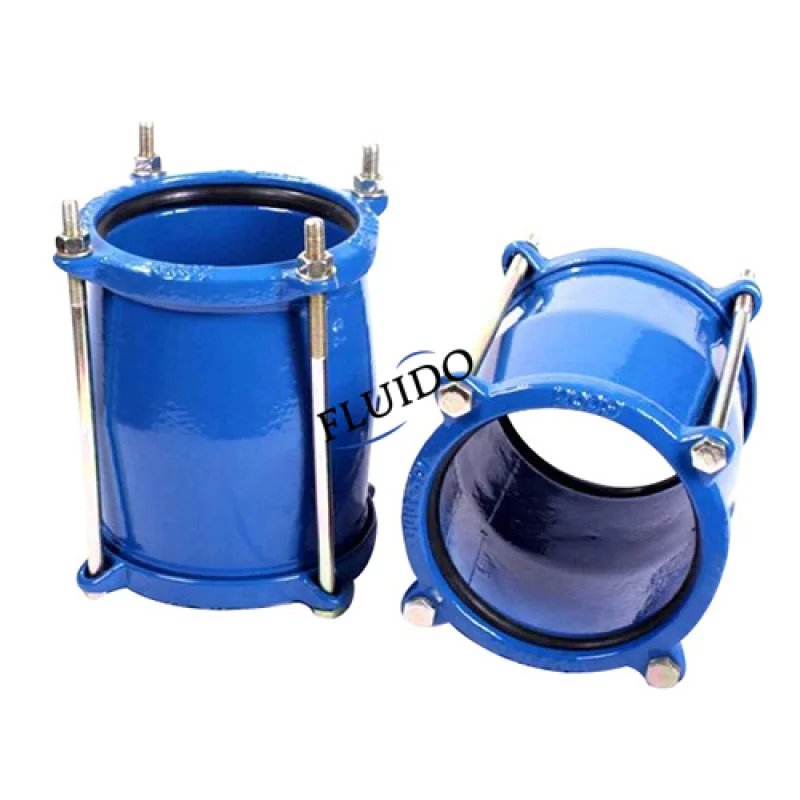

Gibault joints act as key mechanical couplings in today's pipeline systems. They are especially common in water supply, wastewater, and irrigation networks. These fittings make strong connections between plain-end pipes. They often link different materials like PVC, PE, ductile iron, or steel. Known for good flexibility and solid sealing power, Gibault joints handle small misalignments, heat expansion, and ground shifts. They do this without losing their strength or seal.
Most Gibault joints are made mainly from ductile iron. This gives them great strength and good protection against rust. The design includes a central sleeve, end rings or glands, and top-quality rubber gaskets—usually EPDM or NBR.
A Gibault joint works as a bolted mechanical coupling. It connects two plain-end pipes. Unlike stiff connections, it allows some angle bending and slight back-and-forth movement. This cuts down stress on the pipeline from ground settling, earthquakes, or temperature changes.
The whole unit has several carefully made parts that work together well:
· Sleeve/Body: Ductile iron EN GJS400-15. It forms the main housing that links the pipes.
· End Rings/Glands: Also ductile iron. They press the gasket to make a firm seal.
· Sealing Ring/O-Ring: EPDM for drinking water (temperature range 0°C-50°C, no frost) or NBR for other fluids. It gives zero-leak results.
· Fasteners: Carbon steel bolts with zinc plating or stainless steel choices for better rust protection.
· Coatings: Internal cement mortar or epoxy lining; external metallic zinc (min. 150g/m² per ISO 8179) plus bitumen or full epoxy.
This setup makes bolting simple. It also allows adjustable pressure to fit minor pipe shape issues or surface bumps.
Gibault joints bring several benefits. These make them a top choice in pipeline work: Flexibility is the biggest plus. The joint accepts angle bends and small movements. It lowers failure risks in loose soils or earthquake areas. Rust resistance comes from the ductile iron itself and strong coatings. This greatly lengthens useful life compared to older options.
Installation is another clear benefit. The bolted style needs no special welding or threading. Workers can put it together quickly, even in hard spots. This saves time on labor, cuts project delays, and lowers total costs.
Maintenance stays easy. The joint can be taken apart to check parts, swap gaskets, or fix pipes. No big digging is needed.
Gibault joints are widely used in water supply, wastewater, irrigation, and industrial piping systems. They provide reliable sealing, accommodate ground movement, and perform well under pressure and harsh conditions. Common applications include municipal water networks, sewage pipelines, agricultural irrigation, chemical plants, refineries, fire water systems, pump stations, and maintenance or repair projects, where quick installation helps reduce downtime.
The installation steps focus on being simple and fast:
1. Clean pipe ends well. Make sure no dirt remains and cuts are straight.
2. Place the Gibault joint over both pipe ends. Keep the sleeve in the middle.
3. Push end rings/glands on and add the gasket.
4. Tighten bolts slowly in a crisscross order to the right torque. This presses the gasket evenly.
5. Check the line-up and run a pressure test to make sure no leaks show.
Standard wrenches are enough—no fancy tools needed. The method works for quick fixes or new builds. Correct torque stops too much squeeze and keeps the seal good.
Gibault joints offer a trusted, adaptable answer for pipe connection problems. FLUIDO, as a leading manufacturer and supplier of ductile iron pipe fittings since 1994, makes high-quality Gibault joints under strict rules. It ships to more than 35 countries. As a dedicated factory focusing on ductile iron fittings, valves, and related items, FLUIDO provides dependable products at good prices for worldwide water system needs.
Gibault joints typically feature ductile iron bodies (grade 500-7/450-12), EPDM or NBR gaskets, and galvanized steel fasteners, with protective epoxy or bitumen coatings.
These joints suit plain-end PVC, PE, ductile iron, steel, and asbestos cement pipes, providing versatile compatibility in diverse systems.
Gibault joints target specific pipe outer diameters for precise fit and cost efficiency, while universal types accommodate wider ranges but may require more adjustment.
