Butt weld fittings are join pipes in pipeline systems. They’re needed in huge amounts for all sorts of industries, especially for big pipes. Butt weld means sticking pipe or fitting ends together with welding. It’s a strong steel pipe fitting that lets you branch off, switch flow direction, hook up extra gear, or shrink pipe size.

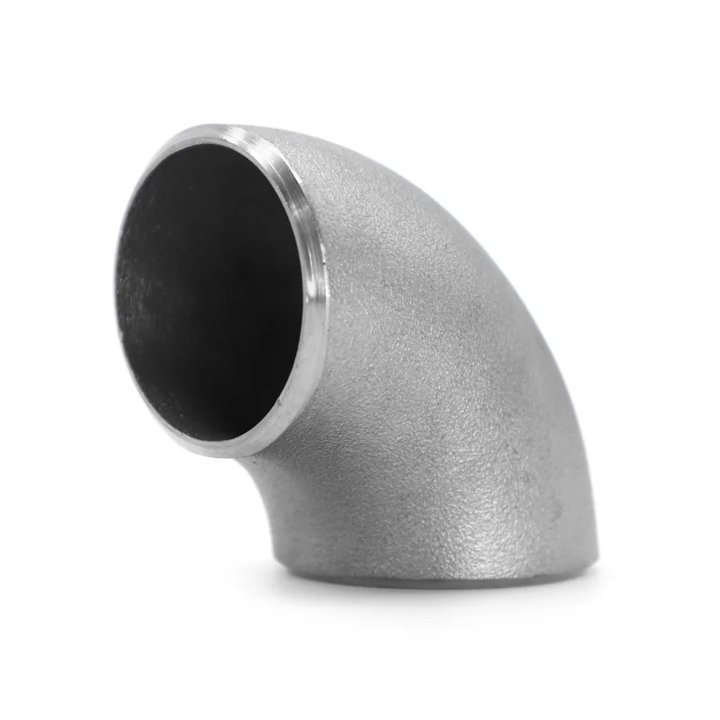

Butt weld elbows are changing where fluid goes in pipelines. They come in two kinds: long radius (LR) and short radius (SR). LR elbows have a curve 1.5 times the pipe’s width, while SR elbows match the pipe’s width. These options help folks design systems for tight spaces or special flow needs.
A butt weld tee, or equal tee, has a 90-degree branch off a straight pipe. It gives a spot to add extra equipment to a pipeline. This fitting helps spread or gather fluid from the main line. It’s great when three pipes need to connect at right angles.

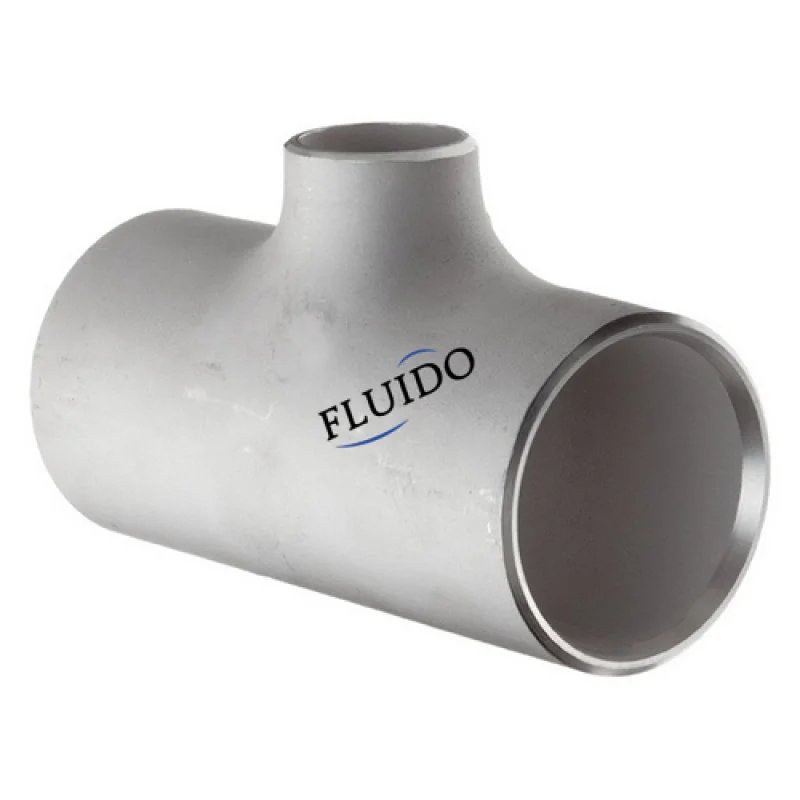

A reducing tee looks like an equal tee but has a smaller 90-degree branch than the straight pipe’s width. This lets you hook up smaller equipment or pipes. It’s a zippy way to mix smaller pipelines into bigger ones without messing up flow control.
Reducers come in two styles: concentric and eccentric. They tweak fluid flow speed and rate. A concentric reducer joins a big pipe to a smaller one with matching centers. An eccentric reducer creates a shift between the two pipes’ centers. Both are welded for a tight fit.
Stainless steel butt weld fittings are usually thin, often made in Schedule 10 ‘cause it’s budget-friendly. They fight off rust and are awesome for chemical plants or food-safe setups.
Carbon steel butt weld fittings are often made from ASTM A234 WPB or WPC, or MSS-SP-75 WPHY materials. They’re usually as thick as schedule 40 steel pipe fittings, STD, or 80. These fittings are super strong and used a ton in oil and gas pipelines.
Alloy steel butt weld fittings use materials like ASTM A234 WP1, WP5, WP9, WP11, WP22, or WP91. These alloys handle crazy high heat and pressure like pros.
Butt weld fittings are usually made with hot forming. First, a pipe gets cut to the right length. Then, it’s heated up and bent into the shape you want using molds. After that, heat treatment fixes the strength and zaps any leftover stress. This makes the fittings tough and ready to roll.
· Welding makes a super strong, safe connection.
· The solid metal structure boosts the whole piping system’s strength.
· Matching butt weld fittings with the right pipe schedules gives smooth flow inside.
· They offer bendy options with Long Radius, Short Radius, or 3R elbows.
· Butt weld fittings are usually cheaper than socket weld or threaded ones.
· They come in Schedule 10 for a thinner wall choice.
· Their beveled ends follow ASME B16.25 standards, so welding’s easy without extra prep.
Butt weld pipe fittings are key for linking stainless steel and carbon steel pipes. They help stick pipes, valves, and gear into the piping system. Plus, they let you:
· Switch the flow direction in a pipeline.
· Connect equipment or pipes together.
· Add branches, access points, or takeoffs for extra gear.
These jobs make them must-haves in places like petrochemical plants, power stations, water treatment setups, and more.
FLUIDO is a top maker and seller of steel valves, fittings, and flanges, serving over 35 countries for 20+ years. Besides making its own flanges, FLUIDO teams up with factories in Shandong and Hebei to offer one-stop shopping. Their quality shines through with ISO9001 by SGS and CE certifications.
Whether you need standard or custom butt weld pipe fittings for your project, FLUIDO delivers awesome results every time. Get started today.
Yup! Butt weld fittings come in tons of sizes, from 1 inch to 72 inches wide, with thicknesses for different schedules like Schedule 10 or Schedule 40.
A reducer, either concentric or eccentric, changes pipe size to tweak flow rate and pressure. Concentric ones keep centers lined up, while eccentric ones shift the centers.
