Camlock fittings, are handy tools for linking hoses and pipes quickly and safely. You’ll find them in all sorts of fields like factories, farming, chemical plants, oil and gas setups, drug making, and even military work. A camlock fitting is a fast way to hook up or take apart hoses and pipes without any hassle. They’re super useful in places where hoses need swapping often or when you don’t have tools nearby.
The setup of a camlock coupling has two main pieces: a male camlock adapter and a female coupler. Just pull the handles on the female coupler out, slide in the male adapter, and make sure it’s lined up right. Then, close both cam arms at the same time to lock it tight. This makes the grooved adapter sit snug against the gasket inside the coupler. Before you undo it, always release any pressure in the system. This stops fluid from spilling or anyone getting hurt.
Ease of use: You can hook up camlocks by hand. No tools needed, so putting them together is simple and friendly for anyone.
Quick to couple: You can make a connection in just a few seconds. There are no threads to mess with when joining the male and female parts.
Versatile: They work well for most liquids, powders, and gases.
Durable: Their basic design keeps dirt issues low and cuts down on early wear or damage.
Reliable: Made for repeated use, camlocks stay useful for a long time.
Cost-effective: When you compare them to other quick disconnect options, camlocks are easy on the wallet.

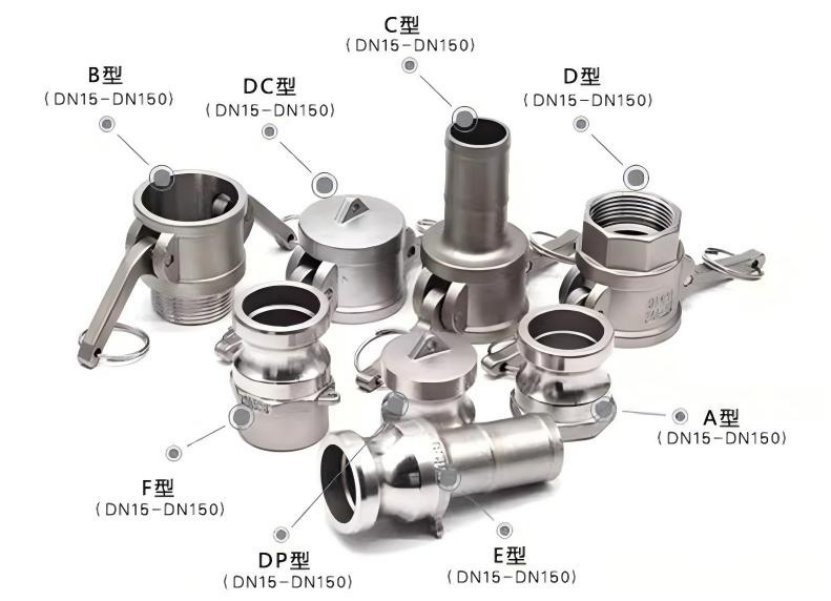

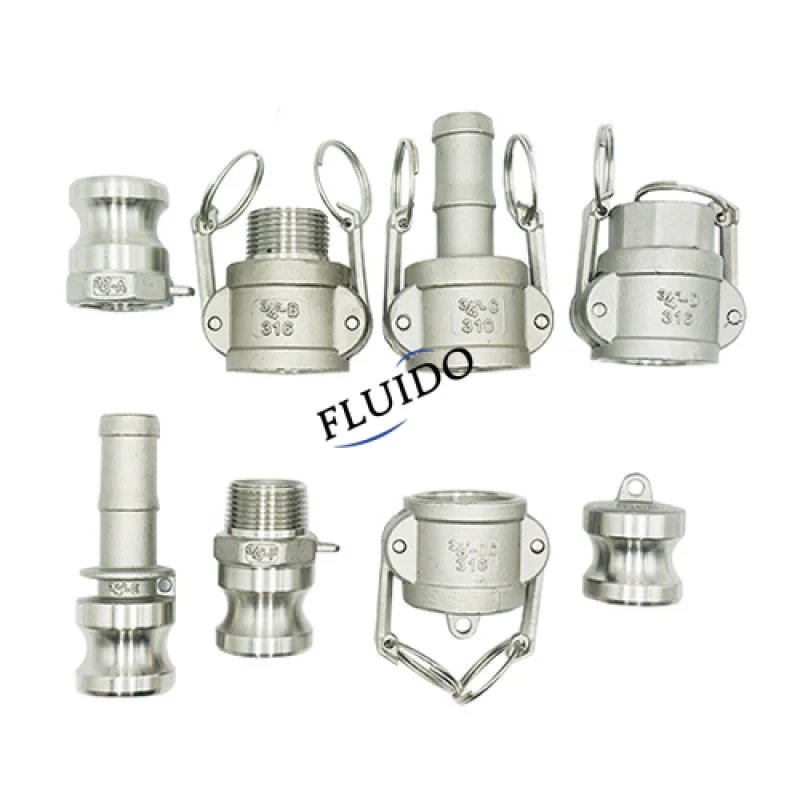

Each kind of camlock fitting is built for a special joining need:
A Type A Camlock connector has a male adapter on one side and a female thread on the other. It’s great for linking to tanks or gear with female-threaded openings.
This kind has a female coupler on one end and outer threads on the other. It hooks up smoothly to male-threaded pipe ends.
Type C connectors come with a female coupler and a hose barb. They’re perfect for fast hose attachments in fluid setups.
This one has inside threads and a female coupler. It joins straight to male-threaded pipes or machines.
This type offers a male adapter on one end and a hose tail on the other. It’s awesome for connecting hoses together.
This version has a male adapter plus outer threads. It’s used to connect directly to inside-threaded gear or pipes.
Dust caps for female couplers and dust plugs for male adapters shield unused ends from dirt. These extras keep things clean, especially in important jobs like food making or chemical work.
Camlock sizes go from ½ inch all the way to 12 inches. Camlock coupling sizes depend on their basic measurement. The male plug gets measured on the outside, while the female coupler is checked on the inside. Getting the size right is key to avoid leaks.
Aluminum strikes a nice mix of being light yet tough. It’s not heavy, costs less, and holds up well.
Stainless steel camlocks works great for long use in tough, high-pressure spots. These fittings fight off rust nicely, so they’re perfect for harsh chemicals or sea environments.
Brass is strong and resists rust at a cheaper price than stainless steel. It’s a common pick for drinking water systems.
Plastics like polypropylene are light and stand up to many chemicals. They’re good for harsh stuff but only in low-pressure setups.
How much heat a camlock can take depends more on the gasket than the metal. Common seal stuff like NBR and EPDM can deal with heat up to 80°C (176°F). For hotter conditions or strong chemicals, go for Viton or PTFE seals.
How much pressure a camlock can handle ties to its material and the working heat. Aluminum and plastic usually can’t take high pressure, but stainless steel does a solid job under heavier loads.
Seals are super important to stop leaks
Locking parts make things safer while in use:
· Automatic locking arms stop accidental unhooking.
· The R clips in camlock couplings keep the setup from coming apart by mistake.
Regular care might mean swapping out old gaskets or levers. You can also add chains to dust caps or plugs so they don’t get lost. A Camlock coupling chain keeps dust caps close so they’re ready when needed.
What is the use of a camlock hose fitting?
A camlock hose coupling is a quick way to join hoses.
What are stainless camlock fittings?
Stainless camlock fittings are tough and long-lasting.
What are aluminum camlock fittings?
Aluminum camlock fittings are light and easy to handle.
