Pressure Reducing Valves (PRVs) are also called pressure regulating valves. You find them in places like water systems, steam lines, oil and gas setups, and even aerospace. These devices lower high pressure coming into a system. They make it a safer, easier-to-handle pressure going out. They do this by balancing the incoming pressure with a spring’s push. This creates a neat way to control pressure. Their main job is to keep high pressure from harming tools and systems downstream.
The way a Pressure Reducing Valve works is all about adjusting high pressure to a set lower level. It keeps things steady. This happens by tweaking the valve’s opening and closing parts. The process uses the fluid’s energy smartly. It keeps the pressure downstream constant.
If the valve’s sensors notice the outlet pressure going up, they tell the valve to close a bit. If the outlet pressure drops, the valve opens more. This back-and-forth keeps the pressure just right. The system balances the spring’s force with the lower pressure to keep the output stable.
Pressure Reducing Valves have several parts that work together:
· Valve Body: This part keeps the flow steady. It controls pressure well. It often has a V port plug for precise flow tweaks.
· Diaphragm: This controls where the valve sits against the spring’s push.
· Adjustment Spring and Screw: These work with the diaphragm to move the valve to the right spot.
· Pilot Valve: In pilot-operated PRVs, this helps push pistons or diaphragms. It opens bigger main valves.
These parts make sure PRVs work great, even in tough places.
Pressure Reducing Valves do lots of jobs in different systems:
1. Pressure Stabilization: They keep downstream pressure steady, even if upstream pressure jumps around.
2. Protection Against Water Hammer: Sometimes, PRVs stop damage from sudden water flow changes.
3. Automatic Operation: They work all by themselves. No outside power is needed.
4. System Safety: They control high pressures. This protects equipment downstream from harm.
Direct acting PRVs are small and simple. The outlet pressure pushes against the spring to decide if the valve opens or closes. If the outlet pressure rises, the valve shuts bit by bit to keep things stable.
Features:
· Easy design, simple to fix.
· Fast response to inlet pressure changes.
· Good for low-pressure differences and small flows.

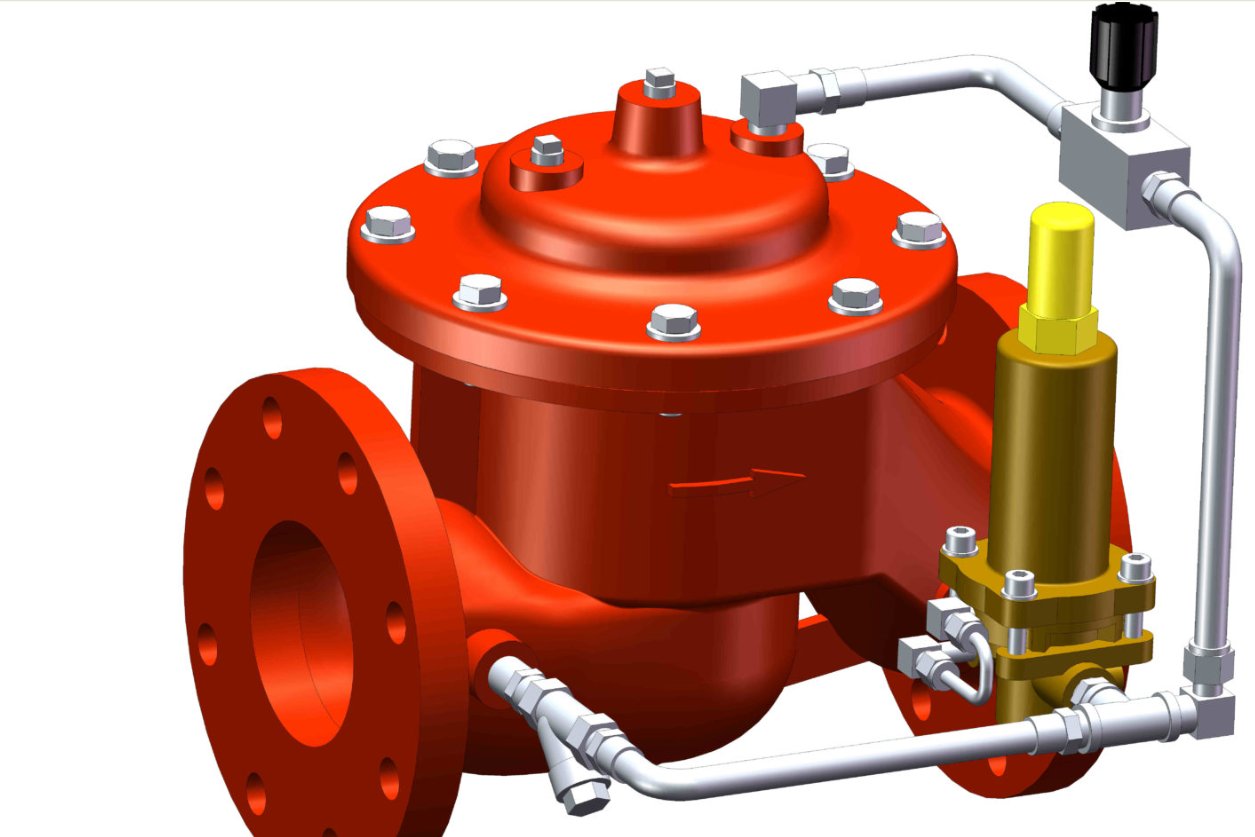

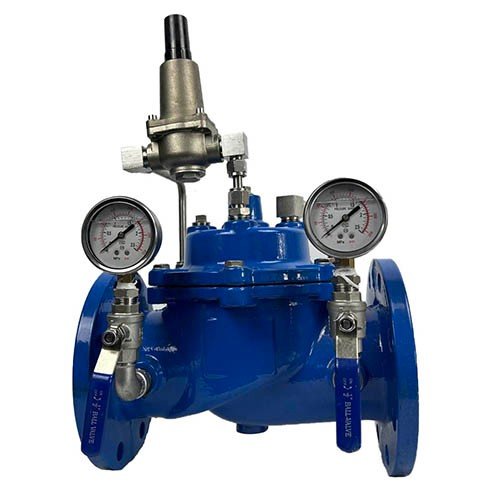

Pilot-operated PRVs are for jobs needing exact control over big loads. The outlet pressure hits a pilot spring first. This opens a pilot port. Fluid in the main valve creates pressure differences. This slowly opens or closes the main valve.
Features:
· Complex design with pilot and main valves.
· Slower response than direct acting valves.
· Super stable, even with changing pressures.
· Great for high-pressure differences and big flows, but leaks a bit more.
Pressure Reducing Valves (PRVs) are essential in many industries including maintaining precise downstream pressure, protecting equipment, and ensuring safety. They regulate pressure in air/gas systems (power tools, storage), water distribution (homes, factories), steam applications (engines, turbines), hydraulic presses, medical equipment (sterilizers, humidifiers), fuel-oil systems, and industrial lubrication systems, preventing damage and optimizing performance.
Both valves manage system pressures. But their jobs are different. Here’s a comparison:
Feature | Pressure Reducing Valve (PRV) | Pressure Relief Valve |
Purpose | Lowers high input to steady output | Releases extra pressure to protect gear |
Operation | Adjusts itself based on input changes | Opens only when pressure is too high |
Design | Complex; has direct or pilot setups | Simpler; often spring-loaded |
Application | Used for constant low pressure | Acts as a safety guard against too much pressure |
Flow Control | Manages flow while lowering pressure | Redirects flow when needed |
Maintenance | Needs regular checks due to constant use | Rarely needs fixing unless it opens |
A Pressure Reducing Valve adjusts fast to system changes. When demand is low downstream, pressure builds up. The diaphragm moves up because of this extra push. This shrinks the valve opening. It might even close fully if needed.
When demand rises downstream, pressure drops. The diaphragm moves down with the spring’s pull. This opens the valve more. More fluid flows through until the inlet and outlet pressures balance again.
This quick response keeps the set downstream pressure steady. It works no matter how the upstream supply or demand changes.
FLUIDO offers a big range of top-notch valves. They’re made for all kinds of jobs. With over 20 years of know-how, FLUIDO delivers trusty solutions worldwide. They have valves like butterfly valves, gate valves, globe valves, and custom ones too.
For great performance and long-lasting Pressure Reducing Valves, team up with FLUIDO for your next buy!
