What is a Lug Type Butterfly Valve
Author :Qingdao Fluido Industrial Co., Ltd
A lug type butterfly valve is a type of valve that is commonly used in various industries for regulating and controlling the flow of fluids. It belongs to the family of butterfly valves, which are known for their simple design and ease of operation. The term "lug" refers to the lugs or protrusions on the valve body that allow it to be bolted between two pipe flanges.

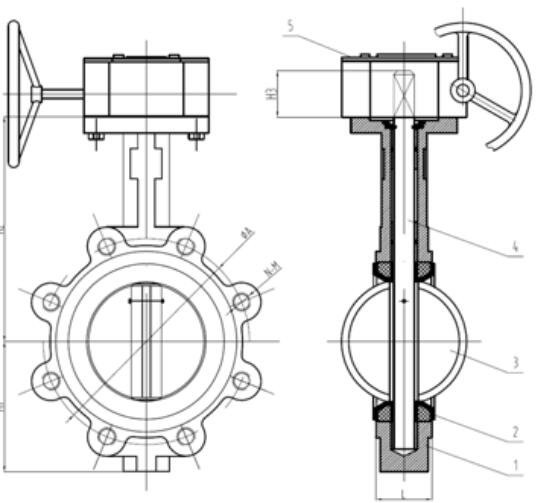

The main components of a lug type butterfly valve include the valve body, disc, stem, seat, and actuator. The valve body is typically made of cast iron, ductile iron, or stainless steel and is designed to withstand high pressures and temperatures. The disc, also known as the butterfly, is attached to the stem and rotates within the valve body to control the flow of fluids. The seat provides a sealing surface for the disc, ensuring a tight shut-off when the valve is closed.
One of the key features of a lug type butterfly valve is its versatility. It can be used in both low-pressure and high-pressure applications, making it suitable for a wide range of industries such as water treatment, oil and gas, chemical, and power generation. The lug design allows for easy installation and removal without disrupting the pipeline, making it a popular choice for applications that require frequent maintenance or repairs.
The operation of a lug type butterfly valve is relatively simple. When the valve is fully open, the disc is perpendicular to the flow and allows for maximum flow. As the valve is closed, the disc rotates to a parallel position, gradually reducing the flow until it is completely shut off. The actuator, which can be manual, electric, or pneumatic, is used to control the position of the disc.
One of the advantages of a lug type butterfly valve is its excellent throttling capability. It can be used to regulate the flow of fluids by adjusting the position of the disc, allowing for precise control. Additionally, the design of the valve minimizes pressure drop across the valve, resulting in energy savings and increased efficiency.
In conclusion, a lug type butterfly valve is a versatile and reliable valve used in various industries for regulating and controlling fluid flow. Its simple design, ease of installation, and excellent throttling capability make it a popular choice for many applications. Whether it is for water treatment, oil and gas, chemical, or power generation, the lug type butterfly valve provides efficient and effective flow control.
If you want to know the sizes details of lug type butterfly valve, please click lug type butterfly valve. Or contact Qingdao Fluido to get more information: email@example.com
