In fluid control systems, check valves and one-way valves are super important parts. They make sure fluid flows one way and doesn’t go backward.
To get the differences between check valves and one-way valves, we first need to know what each one is. A one-way valve is a general name for any valve that lets fluid flow one way but stops it from going back. A check valve, though, is a specific, standard type in this group. It’s built for tough, tricky jobs.

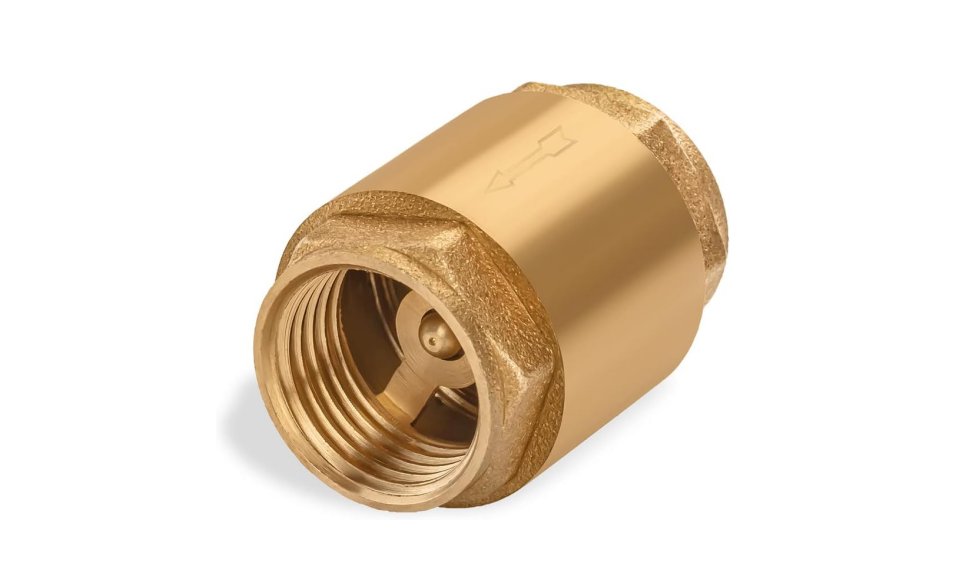

A one-way valve, sometimes called a non-return valve or clack valve, is a broad term. It covers any valve that lets fluid, like liquid or gas, move in one direction while blocking reverse flow. These valves are known for their job, not a set design or rule. You see them in simple things like bicycle tire valves, aquarium water flow valves, or drinking fountain valves. One-way valves are usually basic, cheap, and used in low-pressure, less important systems.

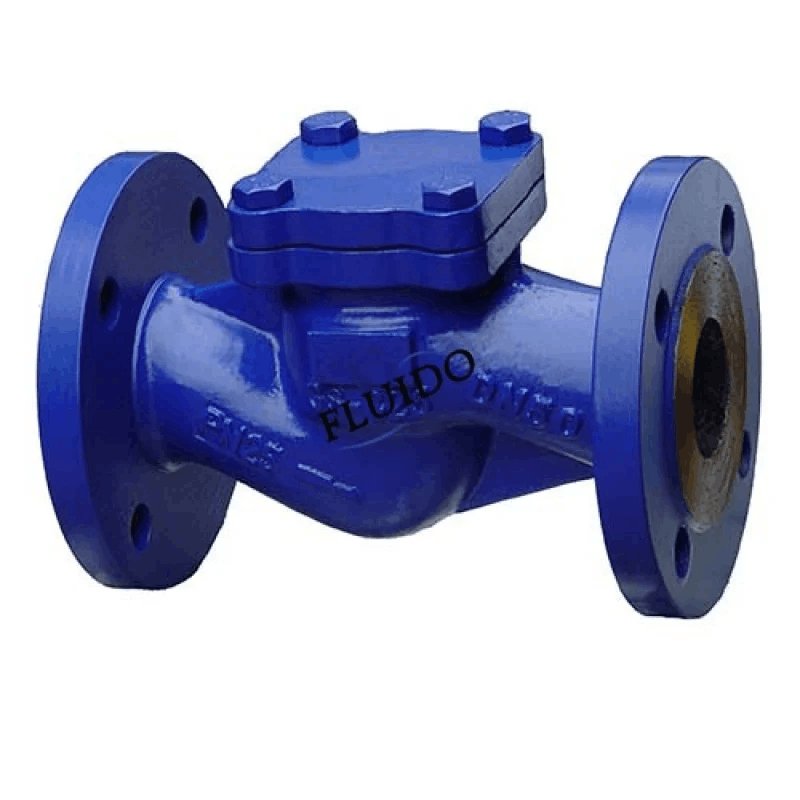

A check valve is an automatic valve. It opens or closes based on the fluid’s movement to stop backflow. Check valves are made for industrial jobs. They follow strict rules like API 594, ASME B16.34, or GB/T 13932-2019.
Check valves and one-way valves differ in how they’re built, how exact they are, where they’re used, what rules they follow, how they’re set up, and how much care they need. Let’s look at these differences in six main areas.
One-Way Valves: These focus on simple tasks with basic designs. Common types include:Ball-Type One-Way Valves, Diaphragm-Type One-Way Valves, Gravity-Type One-Way Valves.
Check Valves: These are made for industrial strength with standard designs. Types include:Swing Check Valves, Lift Check Valves, Butterfly Check Valves.
· One-Way Valves: These give basic flow control. They don’t need exact opening pressure or sealing performance.
· Check Valves: These offer precise work, with:
o Set opening pressures (0.02–0.1MPa).
o Controlled closing speeds (e.g., 3–10 seconds for slow-closing valves to avoid water hammer).
o Strict sealing rules (GB/T 13927-2008), ensuring no leaks in critical systems like petrochemical pipelines.
o Ability to handle extreme conditions, like high heat (up to 425°C) or harsh fluids.
· One-Way Valves: These are used in low-pressure, small-flow, less critical systems, like:
o Home appliances, such as water purifier valves or aquarium pumps.
o Small equipment, like air compressor exhaust valves.
· Check Valves: These are used in high-pressure, high-flow, critical systems, like:
o City water supply, to stop pump backflow.
o Petrochemical pipelines, to avoid fluid mixing.
o HVAC systems, to keep things running smoothly.
o Power plants, to ensure boiler feedwater flow.
· One-Way Valves: These don’t have specific rules. They can use flexible materials like plastic or rubber. They only need simple tests, like air-blow checks.
· Check Valves: These must follow strict rules, such as:
o API 594 and ASME B16.34 for petrochemical valves.
o GB/T 13932-2019 for iron swing check valves.
o ISO 13702 for oil and gas pipeline valves.
These rules require strong materials, pressure tests, and sealing performance to ensure reliability in important jobs.
· One-Way Valves: These need little care to install. They can go in any direction (horizontal or vertical). They use simple connections, like threading or snap-fits.
· Check Valves: These need careful setup, including:
o Lining up with the flow direction (shown by arrows on the valve body).
o Matching the nominal diameter (DN) and pressure (PN) to the pipeline.
o Using pro tools, like torque wrenches for flange connections, and sealing gaskets.
Check valves and one-way valves are different but share a main purpose and a layered connection. They work together across various uses.
Both valve types use the fluid’s pressure difference to allow one-way flow. For example, a one-way valve in a bicycle tire opens when air pressure beats the spring. A swing check valve opens when fluid pressure pushes the disc. It closes when backflow or gravity kicks in.
· One-Way Valves: These handle low-cost, low-precision needs in home or small-scale settings.
· Check Valves: These meet high-reliability, high-precision needs in industrial and city systems, keeping things safe and efficient.
