In big industries like petrochemicals, nuclear energy, and biopharmaceuticals, flange connections are key to piping systems. They keep things secure and free from leaks. A special feature called the "water line" stands out. These are tiny grooves, either round or spiral, on the flange’s sealing face. They’re not just for looks. These grooves are a clever engineering trick. They use ideas from fluid movement, material science, and sealing know-how to work well.

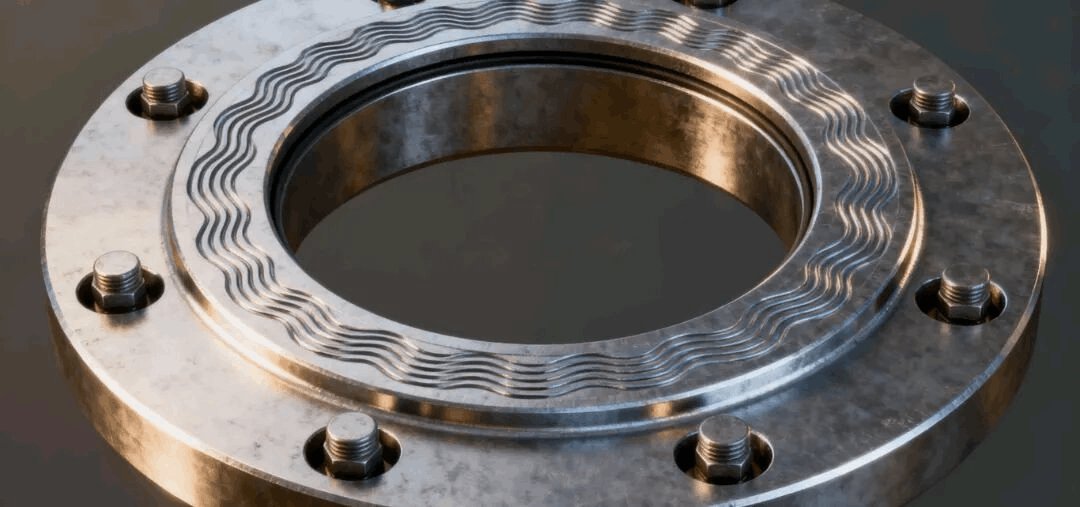

Water lines, also called serrations or concentric grooves, are carefully made features on a flange’s sealing face. They look like ripples in water, which is how they got their name. These grooves are designed to meet standards like ASME B16.5, EN 1092-1, and GB/T 9124. Their details—like groove width, depth, spacing, and number—depend on the flange’s size, pressure rating (e.g., Class 150 to 2500), and the type of fluid they seal.
For example, a DN100 Class 300 carbon steel flange might have 2-3 round grooves. Each groove could be 1.5-2mm wide, 0.3-0.5mm deep, and spaced 5-8mm apart. These measurements aren’t random. They balance good sealing with what’s possible to make. If a groove is too shallow (less than 0.2mm), it won’t seal well. If it’s too deep (more than 0.8mm), it might squash the gasket too much, making it wear out faster.
Water lines come in three main types:
1. Single-Groove Water Lines: These are simple and cheap. They’re used in low-pressure, normal-temperature systems, like water pipelines.
2. Multi-Groove Water Lines: These have 2-5 grooves. They’re great for medium-to-high-pressure systems, like oil pipelines. The extra grooves create more barriers for better sealing.
3. Spiral Water Lines: These are rare. They’re used in super high-pressure or shaky conditions, like nuclear reactor pipelines. They make leaks harder and handle vibrations well.
Flange sealing works by pressing a gasket with bolts to fill tiny gaps and stop leaks. Water lines make this better with three main tricks: medium interception, gasket embedding, and pressure self-sealing.
In industrial pipelines, fluids (gases, liquids, or mixes) try to leak along the flange-gasket edge when under pressure. A smooth sealing face lets fluids escape in a straight line. But water lines change this. They make a twisty, maze-like path. Each groove acts like a wall, redirecting the fluid. It creates low-pressure zones, based on Bernoulli’s principle, which weakens the fluid’s push. Tests show that flanges with three water lines cut leaks by over 80% compared to smooth faces. For small gases like hydrogen or methane, they can improve sealing by up to 90%.
Water lines let gaskets, especially soft ones like asbestos rubber or flexible graphite, sink into the grooves when bolts press them. This forms a "ridge-and-groove" lock. It boosts contact area by 30-50%, making leak paths longer. This improves sealing strength. It also stops gaskets from sliding or warping when pressure or temperature changes. In petrochemical jobs, this cuts failure rates by over 60% compared to smooth flanges. Groove depth must match gasket hardness (e.g., 0.4-0.5mm for flexible graphite, 0.2-0.3mm for metal-clad gaskets) to avoid gaps or over-squashing.
In high-pressure systems, fluids can weaken bolt pressure, causing gaskets to lift off. Water lines fix this. They let fluid enter grooves, creating small pressure pockets. These pockets push back on the gasket, adding to the bolt’s force. This keeps the seal tight. For Class 1500 flanges, when pressure jumps from 10MPa to 20MPa, smooth flanges lose 25-30% of sealing pressure. Water-lined flanges lose only 5-8%. This makes them perfect for high-pressure jobs like oil wellheads.
Water lines help systems stay stable in ways beyond just stopping leaks. They handle issues like temperature changes, shaking, and setup mistakes.
Pipelines in places like petrochemicals or LNG face big temperature swings (e.g., -162°C for LNG, 400°C+ for refining). Flanges and gaskets expand at different rates, which can create gaps or squash gaskets too much. Water lines soak up these stresses. They let gaskets adjust to flange movement, keeping contact. In tests with temperature swings (-20°C to 300°C), water-lined flanges stayed leak-free after 50 cycles. Smooth flanges failed after 10.
In shaky settings, like near pumps or compressors, water lines act like a cushion. Gaskets sunk into grooves absorb shaking energy. This stops bolts from loosening and prevents tiny slides at the sealing edge. In nuclear jobs with 50-100Hz vibrations, spiral water-lined flanges showed bolt loosening of just 0.02mm after 18 months. Smooth flanges had 0.15mm loosening. This meets strict “zero-leak” standards.
Setup mistakes, like misalignment, can cause uneven gasket pressure. Water lines help by letting gaskets fit into grooves. This makes up for small errors in parallelism (≤0.1mm/m) or coaxiality (≤0.2mm). In city pipelines, water-lined flanges had a 95% setup success rate. This cut rework rates from 18% to 3%.
Flange sealing water lines may be small, but they carry years of engineering smarts. They use medium interception, gasket embedding, and pressure self-sealing to ensure strong sealing in all kinds of conditions. They handle temperature, shaking, and setup challenges, making them a key part of industrial reliability. From petrochemical plants to nuclear reactors, water lines are quiet heroes keeping systems safe and efficient.
