Comprehensive Guide to Pipeline Expansion Joints

Pipeline expansion joints (also known as expansion fittings, compensators, or expansion connectors) are essential components in piping systems. They connect equipment such as pumps, valves and pipework via full-bolt flanges, permitting measured displacement and helping to absorb stresses. FLUIDO, with decades of experience as a manufacturer, supplier and factory of pipeline components, presents this detailed guide to help understanding, selection and application of expansion joints.

What is a Pipeline Expansion Joint?

An expansion joint is a device installed between two pipe ends (or between equipment and pipe) using bolted flanged connections or welds. Its purpose is to allow for displacement (axial, lateral or angular) and thus protect connected equipment under pressure, temperature changes or vibration. It’s designed to absorb the axial thrust, thermal movement or structural movement in pipelines, thereby improving installation flexibility and equipment longevity.

Expansion joints enable the piping system and the supplementary equipment (valves, pumps, etc.) to act as a single integrated assembly with controlled movement allowance. In effect, they relieve axial forces induced by thermal expansion or contraction of piping systems.

Classification of Expansion Joints by Structural Form

Expansion joints are commonly classified by structure into three main types: U-bend (or bent-pipe) type, bellows (metal) type, and telescopic (sleeve) type. Each has distinct features and typical usage.

1. Bent-Pipe / U-Shape Expansion Joint
In this design, a straight pipe is bent into a U-shape or other loop form so that its elasticity accommodates movement. Advantages: high strength, long service life, and in‐situ fabrication is possible. Disadvantages: large footprint, high steel consumption, greater frictional resistance. These types are widely used in steam pipelines and long, straight runs.

2. Bellows (Metal Corrugated) Expansion Joint
This uses a corrugated (metal) bellows element as the flexible medium. The most typical direction is axial (along the pipe axis) to compensate length changes. Components include the metal bellows, end-pipes, flanges, guide tubes, and sometimes external hardware. The connections may be flanged or welded (in buried systems generally welded).

3. Telescopic / Sleeve Expansion Joint
Consists of inner and outer concentric tubes that slide relative to each other, sealed via packing or other means. Installed with guide supports, these units allow axial movement. Advantages: low friction, compact size; disadvantages: poorer sealing and higher requirement on fixed support thrust. Commonly used in water pipelines or low-pressure steam lines.

Classification of Expansion Joints by Material

Expansion joints also divide by construction material: rubber (elastomeric) type, metal type, fabric/fibre type (non-metallic). Each suits different application conditions.

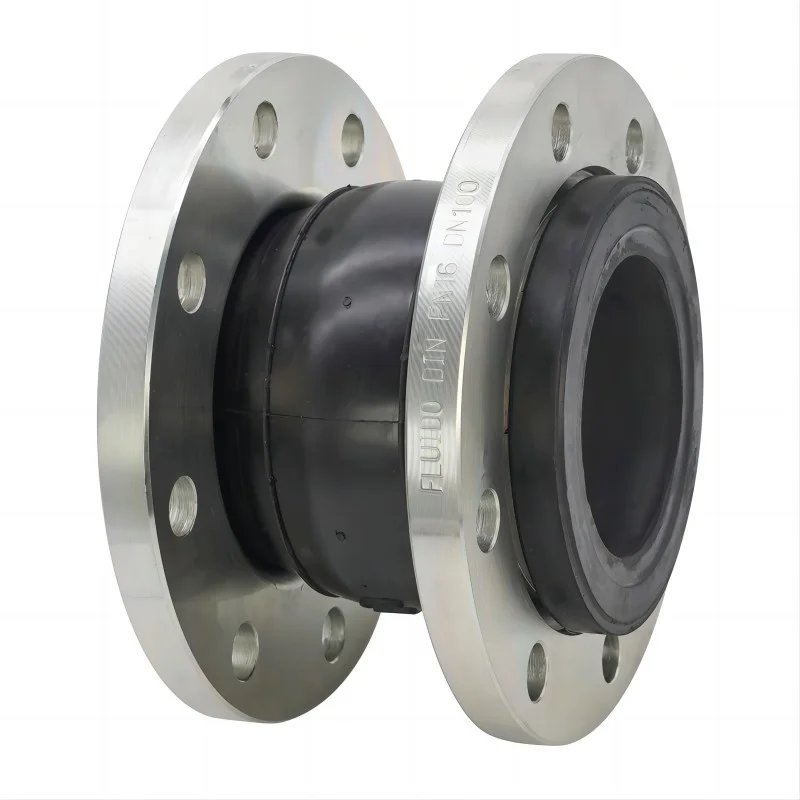

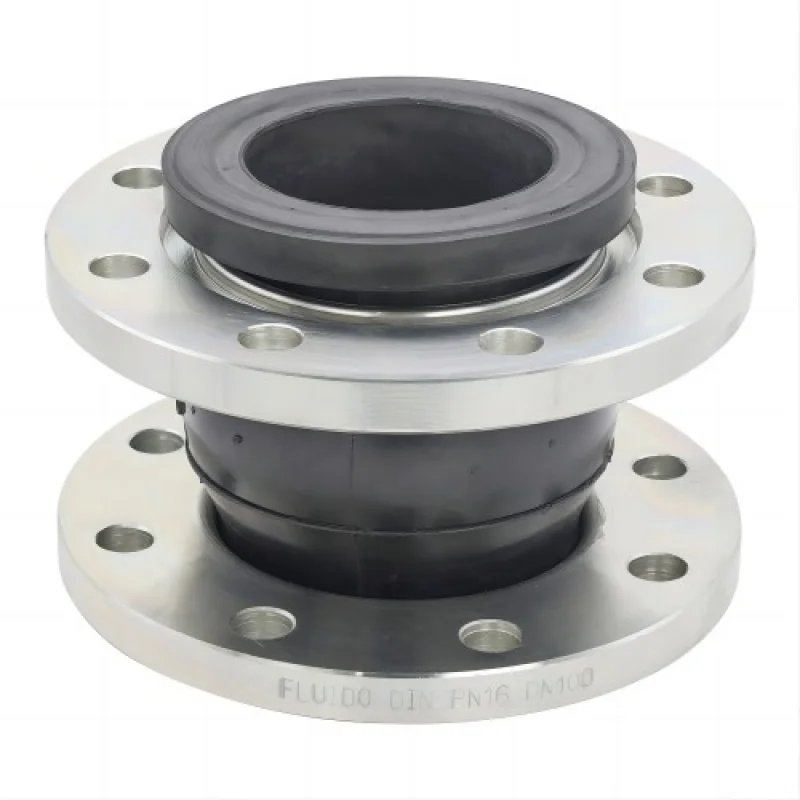

Rubber Expansion Joints

Lightweight, space-efficient, easy to install and maintain.

Can accommodate axial, lateral, angular displacements and misalignment.

Excellent vibration and noise isolation.

Metal Expansion Joints

Large compensation range, high temperature and pressure resistance.

Common in power plants, petrochemical or steam pipelines.
Design must account for fatigue life, corrosion, welding and movement cycles.

Selection Guide: Characteristics and Usage

Practical Tips & Best Practices

Specify movement requirements (axial, lateral, angular) and choose appropriate type.

Material selection should match operating temperature, pressure and corrosive media.

Support and guide system must be properly designed to avoid undue loads on expansion joints.

Install and align properly – incorrect flange alignment or unsuited supports reduce life.

Fatigue life consideration – metal bellows in particular must be designed for expected cycles.

Maintenance planning – although many joints claim “maintenance-free”, periodic inspections help maximize life (especially rubber or fabric types exposed to UV or corrosive conditions).

FAQ

Q1: What is the main difference between a bellows expansion joint and a sleeve (telescopic) type?
Bellows type uses a corrugated metal tube to absorb motion; sleeve type uses inner/outer tubes sliding. Bellows offers better sealing and high-pressure capability; sleeve type is simpler but less suitable for high pressure or harsh service.

Q2: How much movement can an expansion joint absorb?
That depends on type and design: for example a large metal bellows may handle several hundred mm of axial motion; fabric joints may accommodate multi-axis deflection. The specification must be matched to pipe movement, thermal growth or seismic allowance.

Q3: Can rubber expansion joints be used for high temperature steam service?
Generally no, rubber types have limited temperature ratings (often ≤100-200 °C depending on compound). For high temperature steam, metal bellows are the usual solution.

Q4: Why is flange face selection important for expansion joint installation?
Flange faces (flat, raised, male/female, tongue & groove, ring-joint) influence sealing integrity, gasket choice and resistance to pressure. Matching flanges correctly ensures reliable sealing and service life.
