Different Types of Pipe Fittings in Fire Fighting

Pipe fittings form basic parts in any fire safety setup. They link pipe sections. They turn water direction. They make side paths. They shift sizes. They offer safe links to pumps, valves, hydrants, sprinklers, standpipes and other key gear. In a fire, these parts must handle strong inside forces. Such forces often go from 175 psi to 500 psi. They stay fully without leaks. They fight rust from water and outside weather.

Threaded Pipe Fittings

Threaded fittings mark one of the early and still usual link ways in fire safety pipes. This holds true in smaller size parts.

Typical Applications in Fire Fighting Systems

· Fire department connections (Siamese inlets)

· Hose valves and threaded outlets on standpipes

· Sprinkler drops and branch lines in light-hazard occupancies

· Temporary test connections and drain valves

Advantages and Practical Limitations

The key pluses of threaded joints lie in their plain design, fair low price and simple take-apart for upkeep or checks. Yet, they usually limit to name sizes of 4 inches or less in most fire safety rules. This stems from harder leak-free joins at bigger sizes and more turns. Too much tighten can harm threads. Also, many put-together and take-apart times may weaken the close over time.

Grooved Pipe Fittings

Grooved mechanical-joint fittings have turned into the field norm for most new fire sprinkler, standpipe and private fire service main setups around the world.

How Grooved Joints Function

The setup uses a rolled or cut groove close to the end of both pipe and fitting. A two-part or split coupling house then presses a tough rubber gasket. This gasket is often EPDM. It wraps around pipe ends as bolts tighten. Thus, it forms a firm, force-tight joint. No weld, thread or exact flange match is needed.

Types of Grooved Couplings

· Rigid couplings – zero-flex joints for stable alignment

· Flexible couplings – allow angular deflection (typically ½°–1° per joint) and axial movement

· Reducing couplings – transition between different pipe sizes

· Shouldered couplings – used mainly in mining and specialized systems

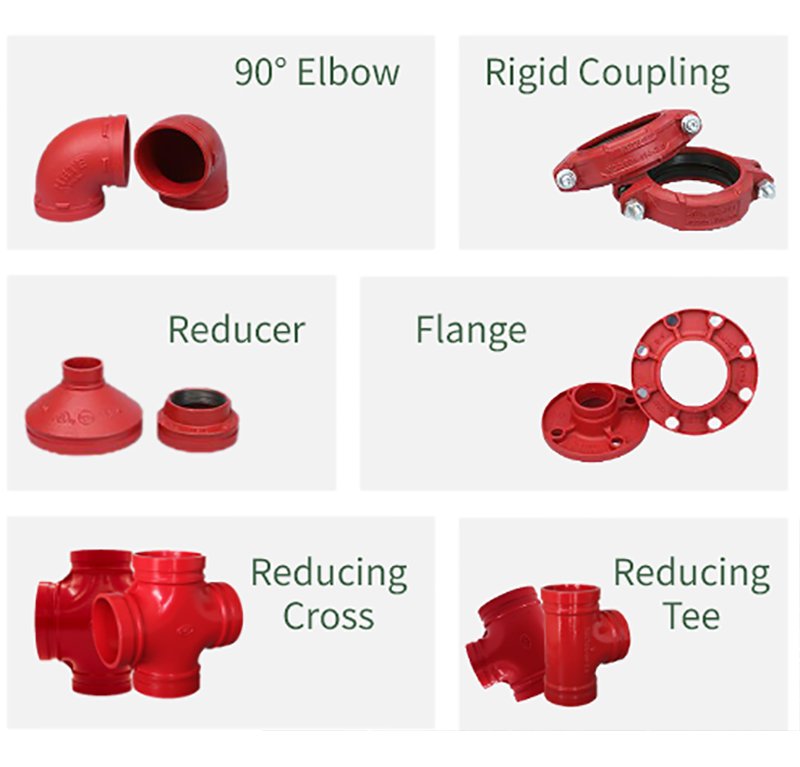

Most Commonly Used Grooved Fittings

The usual line covers 90° and 45° elbows, same and smaller tees, mechanical outlet tees. These add sides without cutting pipe parts. It includes crosses, caps, plugs, grooved-to-threaded adapters, grooved-to-flanged adapters, drain elbows with test ports, and air-release eccentric reducers. Special drain elbows and test elbows stop water build in open lines. They also ease regular system tests.

Key Benefits in Fire Protection Projects

Grooved setups cut setup time a lot. This often drops by 40–60% from welded or threaded pipes. They remove open-fire risks in build work. They bring natural bend that fits shake moves.

Flanged Pipe Fittings

Flanged links give the top strength and most lasting joint kind often used in fire safety pipes.

Typical Locations and Uses

Flanged fittings stand as the top pick at fire pump pull and push headers. They link to big butterfly valves, gate valves and check valves. They connect fire department links with large inlets. They shift between different pipe stuffs. They suit spots with strong shakes, mainly near diesel fire pumps.

Strengths and Trade-offs

Flanged joints bring great firmness and power. This makes them perfect for high-burden and high-shake spots. They let easy take-apart for checks, fixes or pump/valve upkeep. The chief minuses include higher stuff cost, more weight, harder line-up needs.

Other Important Pipe Fittings in Fire Systems

Elbows and Direction Changes

· 90° standard elbows

· 45° and 22.5° elbows (lower friction loss)

· Long-radius elbows for high-flow mains

Tees and Branching Fittings

· Equal tees

· Reducing tees

Transition and Closure Fittings

· Concentric and eccentric reducers

· Caps and plugs

· Blind flanges

Specialty Fire Protection Fittings

· Drain valves and test elbows

· Grooved × grooved eccentric reducers for air release

Partner with FLUIDO as Your Trusted Manufacturer and Supplier

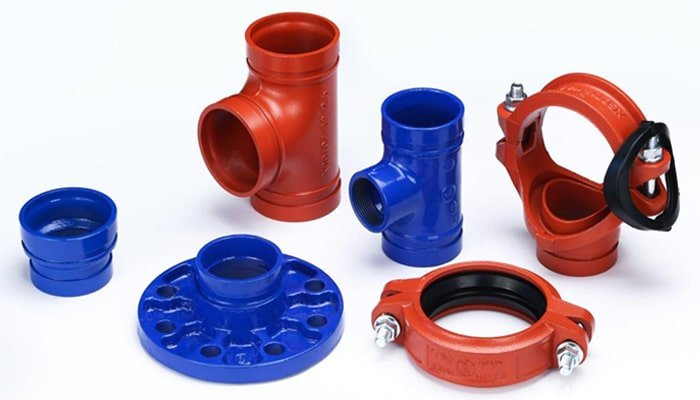

FLUIDO acts as a pro manufacturer and supplier of UL/FM-certified ductile iron grooved pipe fittings. These fit fire safety uses. The item line holds rigid and flexible couplings, 90° and 45° elbows, same and smaller tees, mechanical tees, crosses, reducers, caps, grooved flange adapters and varied special goods. All get made to ASTM A536 rules with exact cut and steady red RAL 3000 epoxy coat.

Ask for price quotes, tech sheets, samples, check papers or talk long-run supply pacts today.
