Fluorine-lined valves represent a critical advancement in industrial fluid control systems, particularly in environments where corrosion poses a significant threat to operational integrity.
These valves feature an inner lining made from fluoropolymers such as polytetrafluoroethylene (PTFE), perfluoroalkoxy alkane (PFA), or fluorinated ethylene propylene (FEP). This lining is applied to the valve's pressure-bearing components, typically constructed from steel or iron, creating a robust barrier against aggressive chemical media. The result is a valve that combines the structural strength of metal with the unparalleled chemical inertness of fluoroplastics.
The concept of fluorine lining emerged in the mid-20th century as chemical processing industries expanded, demanding materials that could withstand concentrated acids, alkalis, and oxidants without degradation. Today, these valves are essential in sectors like petrochemicals, pharmaceuticals, and water treatment, where even minor leaks can lead to costly downtime or safety hazards.
By preventing direct contact between corrosive fluids and the valve body, fluorine-lined designs extend service life and minimize maintenance needs, making them a staple in modern process engineering.
Fluorine-lined valves, also known as fluoroplastic-lined corrosion-resistant valves, are engineered by molding or embedding fluoropolymer resin onto the inner walls of metal valve bodies or the outer surfaces of internal components. This process leverages the unique properties of fluoropolymers, which exhibit exceptional resistance to chemical attack. PTFE, for instance, remains stable against nearly all known chemicals except molten alkali metals and elemental fluorine, operating effectively from -200°C to 260°C depending on the variant.
The lining process ensures a seamless, non-porous surface that inhibits permeation and corrosion. Unlike unlined metal valves, which may require frequent replacement in harsh conditions, fluorine-lined variants provide zero leakage and bubble-tight shutoff. This design is not limited to valves; similar linings are applied to pressure vessels and piping accessories, forming a cohesive system for fluid handling. In practice, these valves handle media such as hydrochloric acid, sulfuric acid, nitric acid, and organic solvents, where traditional materials like stainless steel would erode rapidly.
Key benefits include low friction coefficients for smooth operation, dimensional stability under thermal cycling, and compliance with stringent standards like ISO 9001 and CE. As industries prioritize sustainability, the durability of these valves reduces waste from premature failures, aligning with global efforts to enhance process efficiency.
Fluorine-lined valves come in various configurations to suit diverse flow control requirements. Each type is tailored for specific pressure ratings, sizes, and actuation methods, ensuring versatility across applications.
Fluorine-lined ball valves utilize a spherical disc to regulate flow, offering quarter-turn operation for quick shutoff. The valve body is typically WCB, CF8, CF8M, CF3, or CF3M with fluoropolymer lining, while the ball core matches these materials for uniformity. Seats are crafted from PFA, PTFE, or FEP, providing enhanced sealing.
Available in diameters from DN15 to DN350 and pressure classes PN10, PN16, or 150LB, these valves support manual, gear, electric, or pneumatic actuation. Their hallmark is reliable corrosion resistance and sealing integrity, making them ideal for strong acids and alkalis. In chemical plants, they prevent media buildup in the cavity, ensuring consistent performance even in slurry-laden flows.

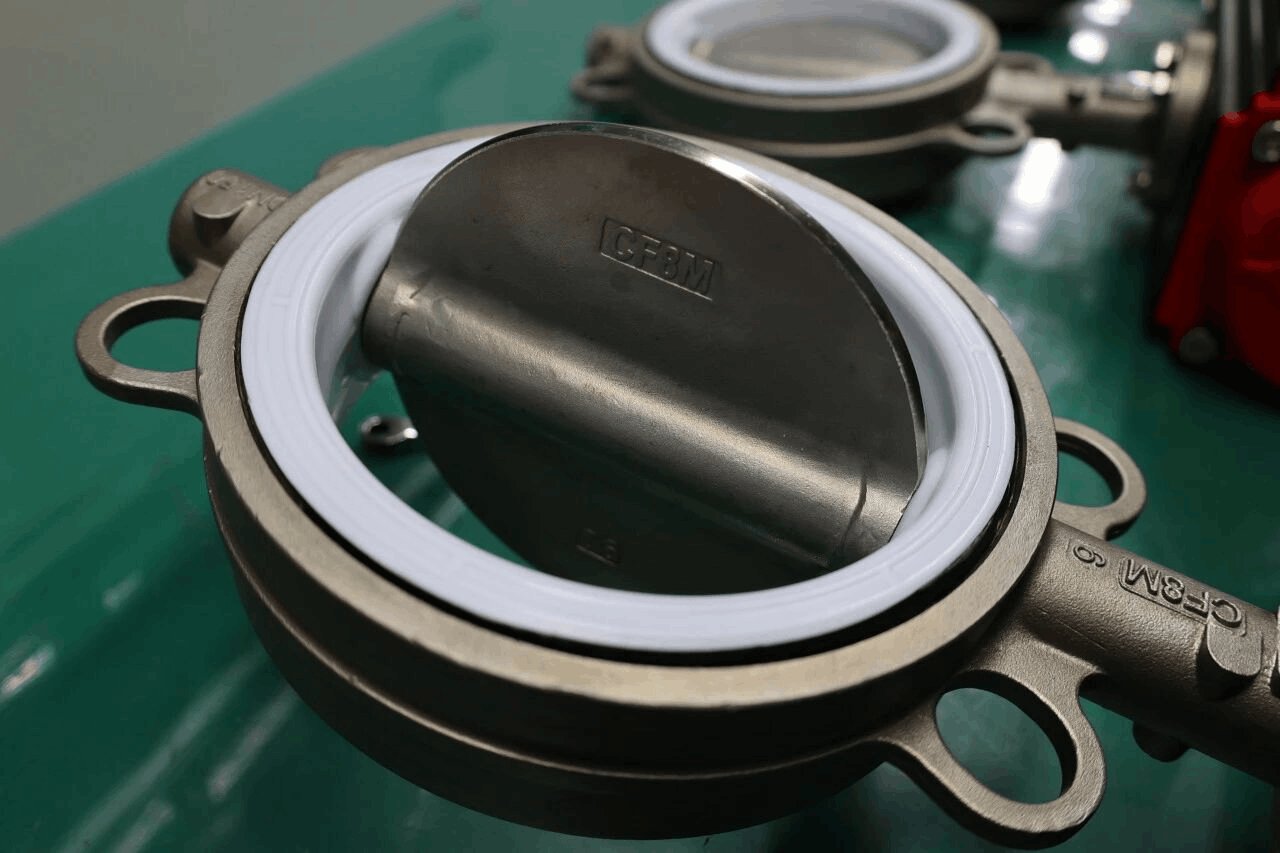

These valves employ a rotating disc mounted on a stem to throttle or isolate flow. The body and disc are lined with WCB or stainless steel variants plus fluoropolymers, paired with PFA/PTFE/FEP seats. Sizes range from DN50 to DN500, with pressures up to PN16 or 150LB, and actuation options mirroring ball valves.
Strengths lie in strong corrosion resistance, stable performance, low aging, reduced friction, and ease of molding for precise dimensions. Widely used in larger pipelines, they excel in ultra-pure water systems and aggressive chemical transport, where full 360-degree lining ensures bubble-tight closure regardless of flow direction.

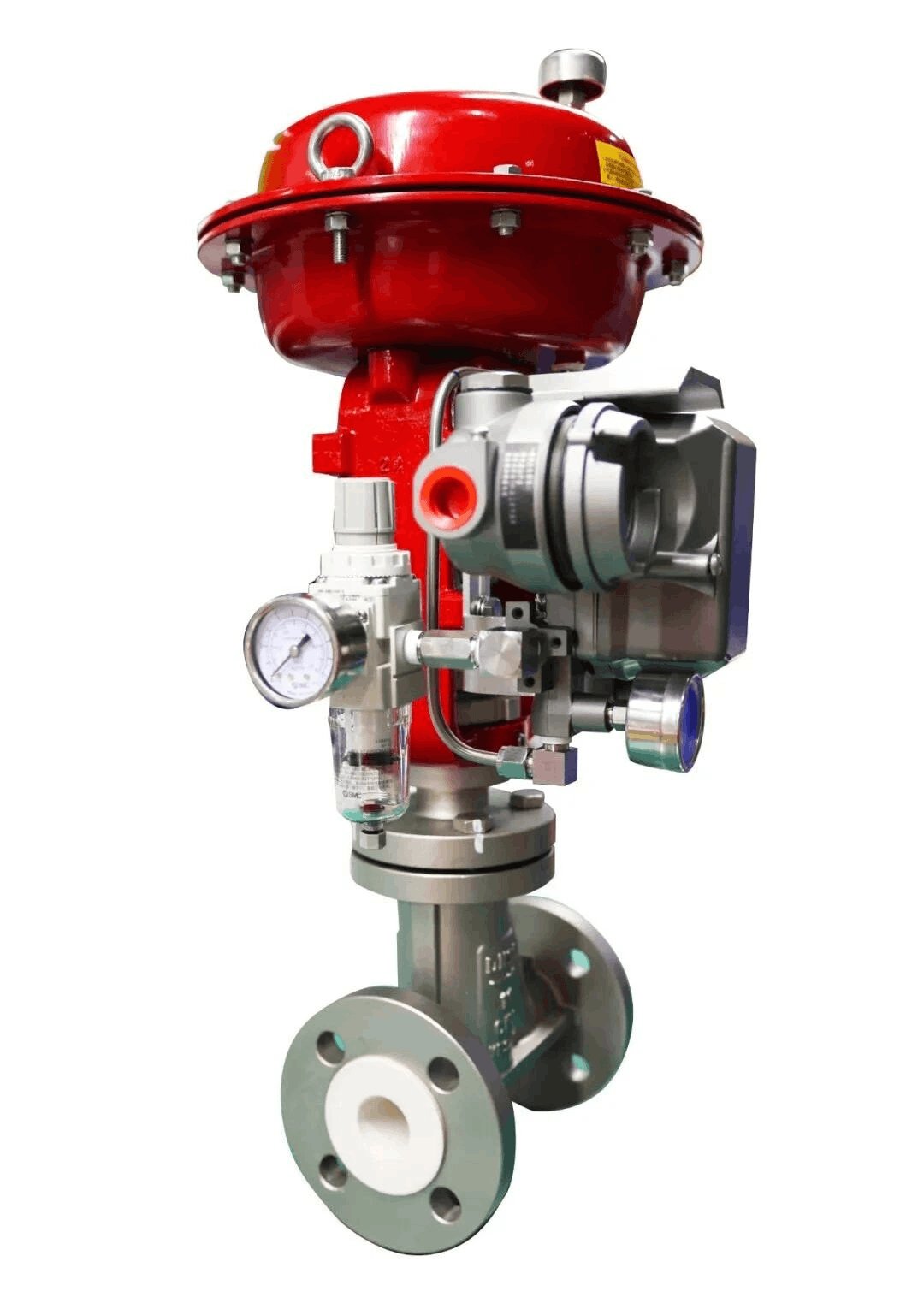

Designed for precise flow modulation, these valves feature lined bodies and trim components similar to ball valves, with sizes up to DN200. They handle the same pressures and drives, emphasizing corrosion resistance for regulatory duties in corrosive streams.
In pharmaceutical production, they maintain exact dosing of reactive intermediates, leveraging low-torque designs for automation integration.
Preventing backflow, these swing or lift designs incorporate lined bodies in WCB/CF8M variants with PFA/PTFE/FEP linings. Covering DN15 to DN400 and PN10-150LB, they suit media like sulfuric, hydrofluoric, hydrochloric, and nitric acids.
Their non-slam closure protects pumps in corrosive recirculation loops, with minimal pressure drop enhancing system efficiency.
Other variants, such as gate, globe, diaphragm, and discharge valves, extend the lineup for specialized needs like bottom-outlet draining in reactors.
Producing high-quality fluorine-lined valves demands precision to avoid defects like voids or delamination. Two primary methods—compression molding and injection molding—dominate, each suited to production scales and complexities.
This traditional technique involves placing powdered, granular, fibrous, or flaked fluoropolymers (FEP/F46 or PFA) into a mold cavity within the valve body. The mold closes and heats in a furnace to a molten state, where pressure forces the material to flow and fill the cavity uniformly. Cooling solidifies the lining into a non-meltable structure, achieving thicknesses of 3-8mm.
Ideal for multi-variety, small-batch runs, it yields low internal stresses and superior permeation resistance, perfect for complex geometries like valve internals. However, longer cycles and higher labor demands limit scalability.
A modern approach, injection molding heats fluoropolymers in a barrel before injecting the melt into a closed mold via plunger or screw. This high-rate process excels for medium-sized valves in batch production, delivering high-precision parts with embedded metals.
Advantages include short cycles, automation potential, and stable quality for intricate shapes. Drawbacks encompass higher equipment costs and complex molds, unsuitable for low-volume custom work.
Fluorine-lined valves are especially relevant in industries where corrosive fluids are encountered and service life, maintenance intervals and process reliability are critical. Typical sectors include:
Chemical processing (strong acids/alkalis, organic solvents, halogen media)
Pharmaceutical production (solvent systems, aggressive cleaning fluids, ultra-pure media)
New energy and battery manufacturing (electrolytes, aggressive media)
Environmental engineering (wastewater treatment, flue gas desulfurization, mining leaching)
Specialty manufacturing (plating lines, chlor-alkali, pulp & paper)
