People new to picking valves often ask: Can globe valves and gate valves be used the same way? The quick answer is no. You shouldn’t swap them except in rare, short-term cases with strict rules. Using the wrong valve can make systems work poorly, use more energy, break early, or even cause danger. Let’s look at how globe valves and gate valves differ, how they perform.

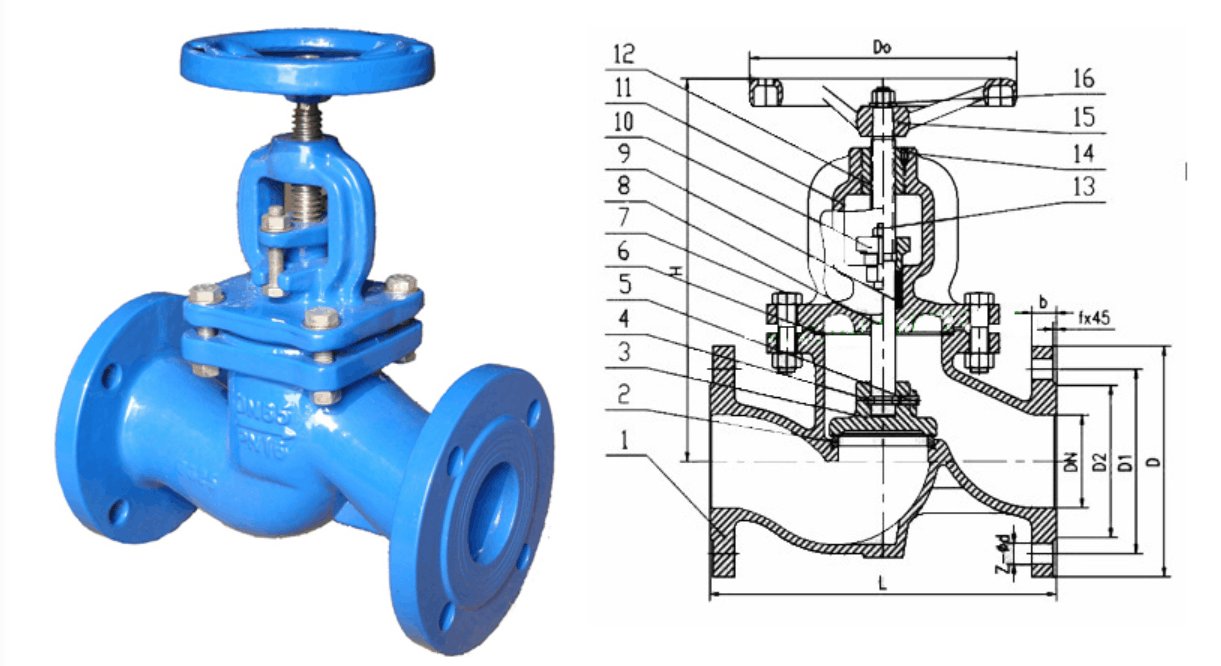

A globe valve has a round or Z-shaped body inside. It uses a disc or plug tied to a stem. You turn a handwheel to move the stem. This pushes the disc against a seat to close or lifts it to open or control flow. This setup makes globe valves great for adjusting flow and sealing tightly when closed.
· Key Features:
o Controls flow precisely, like a faucet.
o Good for frequent use and flow adjustment.
o Has more flow resistance because of its S-shaped path.

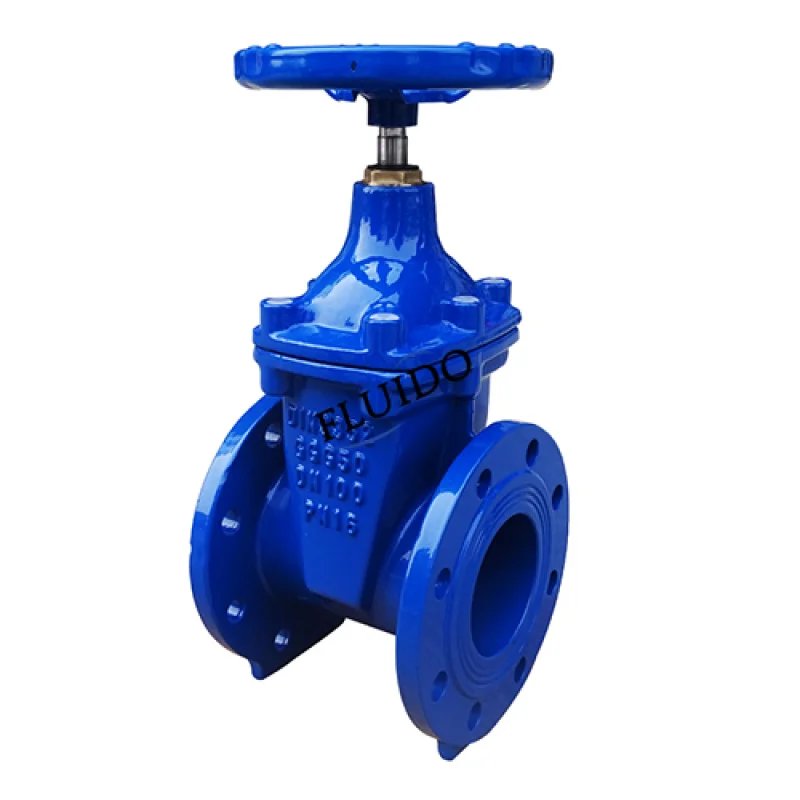

A gate valve has a wedge or flat gate. It moves up and down via the stem to fully open or close the flow. When open, the gate moves out of the way completely. This makes a straight path. Gate valves are made for on/off use, not flow control.
· Key Features:
o Very little flow resistance when fully open, like a straight pipe.
o Not good for adjusting flow, as it can harm the gate and seat.
o Best for systems that don’t need frequent changes.
· Globe Valve: Awesome for adjusting flow. The disc and seat let you control how much fluid passes, perfect for things like sampling valves or pressure control.
· Gate Valve: Bad for adjusting flow. Opening it partway makes the gate shake and wear out from fluid hitting it. This can break the seal and cause leaks.
· Problem with Misuse: Using a gate valve to adjust flow can ruin its sealing parts. This leads to leaks and poor system performance.
· Globe Valve: Has high flow resistance. The S-shaped path makes the fluid change direction a lot, which causes pressure loss.
· Gate Valve: Has very low resistance when fully open. The flow path is almost straight, like the pipe itself.
· Problem with Misuse: Putting a globe valve in a main pipeline needing low resistance raises energy costs. It makes pumps work harder.
· Globe Valve: Opens and closes faster. The stem doesn’t move far.
· Gate Valve: Takes longer to open or close. The gate needs more stem movement.
· Problem with Misuse: Using a gate valve where quick action is needed is slow and not practical.
· Globe Valve: Seals well. The disc and seat aren’t easily damaged by flowing fluid.
· Gate Valve: Seals great when fully open or closed. But adjusting flow can damage it, causing leaks.
· Problem with Misuse: Using either valve wrong hurts their sealing. This raises repair costs and risks.
· Globe Valve: Needs to be installed in a specific direction. An arrow on the valve shows the right flow path (often low-in, high-out).
· Gate Valve: Works with flow from either side.
· Problem with Misuse: Putting a globe valve in the wrong direction can make it hard to use or cause damage.
· Globe Valve: Best for adjusting flow, frequent use, or systems where some pressure loss is okay, like in sampling or instrumentation.
· Gate Valve: Great for stopping flow completely, low resistance, or rare use, like in main pipelines or equipment shutoff.
· Problem with Misuse: Using a globe valve for shutoff wastes energy. Using a gate valve for flow control wears it out fast.
In rare emergencies, a globe valve can act as a gate valve for full open or close tasks. But only if:
· The globe valve matches the pipeline’s pressure rating and size.
· It’s installed in the right flow direction (check the arrow).
· It’s used only for on/off, not flow adjustment.
· The system can handle higher pressure loss.
· You plan to replace it with a gate valve soon.
Even then, this is a last resort. It’s not efficient and can cause problems.
Picking the right valve depends on your pipeline’s needs. Here’s a simple guide to help:
Choose a Globe Valve When You Need:
· Flow or pressure control: For precise adjustments in flow tasks.
· Frequent use: For systems needing regular opening and closing.
· Some pressure loss: Where energy efficiency isn’t the top concern.
· Low leak risk: The design pushes pressure up, reducing stem leaks.
Choose a Gate Valve When You Need:
· Full flow or complete shutoff: For isolation with little flow resistance.
· Low pressure drop: In main pipelines or pump outlets where energy matters.
· Rare use: For systems where the valve stays open or closed for a long time.
What is the main difference between a globe valve and a gate valve?
Globe valves are made for controlling flow and adjusting it. They use a disc that moves against a seat. Gate valves are for full on/off use. They have a gate that fully opens or closes the path.
Can I use a gate valve to regulate flow?
No, gate valves aren’t good for that. Opening them partway can cause shaking and wear. This damages the seal and causes valve failure.
Why does a globe valve have higher flow resistance?
Its S-shaped path makes fluid change direction a lot. This causes more pressure loss than the straight path of a gate valve.
Are globe valves directional?
Yes, they need to be installed in the right flow direction. An arrow on the valve shows this. Wrong installation can cause problems or damage.
