Globe Valve

Getting A Quote With Fluido Is Free.
Try It Now

Get A Free Quote

Globe Valves are available in various sizes, ranging from 2–80", material can be Cast Steel, Stainless Steel, Cast Iron, Alloy Steel, Forged Steel and available. If you need special globe valve specifications, please contact us to inquire about your valve requirements.

We can supply Glove Valves, Flanged Globe Valves, Cast Steel Globe Valves Meeting API, ANSI, BS, DIN, JIS Standards.


Applicable standards:


Steel glboe valves, BS 1873 / API 600

Steel valves, ASME B16.34

Face to face, ASME B16.10

Flanges end, ASME B16.5

Buttwelding ends, ASME B16.25

Inspection and test, API 598


Design description:


Straight patteren body design

OS & Y,outside screw and yoke

BB,Bolted bonnet

Yoke intergral with bonnet

Rising stem and handwheel

Loose disc,choice of plug or ball

Renewable seat ring

Impact handwheel for 10" & above

Horizontal servece

Flanged or buttwelding ends

Available with bg operator

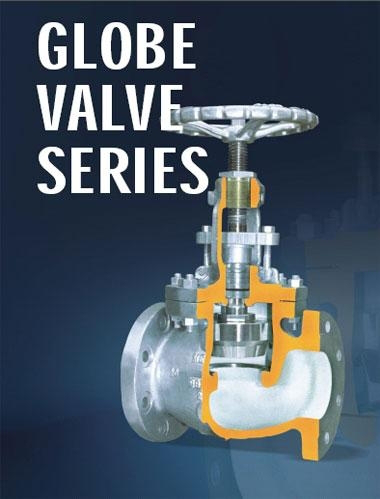

Globe Valve Series

 A globe valve is a type of valve used for regulating flow in a pipeline, consisting of a movable disk-type element and a stationary ring seat in a generally spherical body.


Globe Valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug can be screwed in to close (or shut) the valve. The plug is also called a disc. In globe valves, the plug is connected to a stem which is operated by screw action in manual valves. Typically, automated valves use sliding stems. Automated globe valves have a smooth stem rather than threaded and are opened and closed by an actuator assembly. When a globe valve is manually operated, the stem is turned by a hand wheel.


 Globe valves are used for applications requiring throttling and frequent operation. For example, globe valves or valves with a similar mechanism may be used as sampling valves, which are normally shut except when liquid samples are being taken. Since the baffle restricts flow, they're not recommended where full, unobstructed flow is required.
