Socket Weld Union

Forged Pipe Fittings

Manufacturer of ASME B16.11 3000LB, 6000LB, 9000LB Forged Pipe Fittings in China.


Product Name: elbow, tee, cap, bushing, coupling, pipe nipple, hex, nipple, weldolet, threadolet, sockolet, socket, cap, cross, flangolet, union, swage nipple, etc..


Size: 1/8"-4" threaded and socket weld type


Pressure:

Socket weled : 3000LB  6000LB  9000LB (sch80 sch160 xxs)

Threaded : 2000LB  3000LB  6000LBS (sch80 sch160 xxs)


Conection: Thread (NPT, BSP,RP, G) ,Socket Welding


Type: Elbow,Tee,nipple,full coupling, half coupling,lateral,cross,cap, plug,hex head nipple, swage nipple,union,weldolet,sockolet, threadolet, nipolet, elbolet, latrolet etc.


Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;


Surface Treatment: Sand blasting, Anti-rust oil, Galvanized, Polished, black.


Wall thickness: SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.


Material:

Stainless steel: A182 F304/304L, A182 F316/316L, A182 F321, A182 F310S, A182 F347H, A182 F316Ti, A182 F317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541, 254Mo and etc.

Carbon steel: ASTM A105, A350LF2, Q235, St37, 20#, 16Mn, St45.8, A42CP, E24 , A515 Gr60, A515 Gr 70, A420 WPL6 etc.

Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc.

Pipeline steel: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc.

Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H, C22, C 276, Monel400, Alloy20 etc.

Cr-Mo alloy: A182 F11,A182 F5, A182 F22, A182 F91, A182 F9, 16mo3 etc.


Application: Petroleum Chemical,Refinery, Pharmacy Industry, Food & Beverage Industry, Sea Water Desalination,Paper Making, Shipbuilding Industry, Electric power, Offshore & onshore oil&gas, Mining Industry, Water Treatment, Mechanical Making, Chemical fertilizer etc.


Package: Cartons in wooden cases.

MOQ: to be negotiated.

Sample: Available

Price: >>DOWNLOAD the forged fittings newest price list from PRICE LIST AND TECH

Service: Customized OEM

Payment term: T/T or L/C

Delivery:7-30days according to order quantity.

Introduction

Pipe union, is a kind of common pipe fittings to connect two pipes which can be easily installed and disassembled without destroy the pipes or cause any deformation of the pipes. The types of pipe unions are equal union and reducer union.Pipe union is machined by die forging of round steel or ingot.It’s connection forms are socket weld union and threaded union.

Socket weld union is to insert the pipes to the socket holes and welding the pipes and union together.The main manufacturing standard is ASME B16.11 and MSS SP 83.


 The socket weld union is composed of two socket ends and one nut. Compared with the prior art, the design is reasonable, the operation is simple and practical, and the operation quality and convenience are improved.


 The socket weld union can be widely used in pipes of different sizes, as well as in water meters and valves. It is very convenient to install, use and repair because of the socket structure, and also has high leak-proof ability, which has great market prospect.

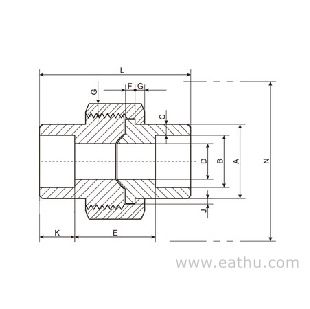

Socket Weld Union Dimension

NomPipeSocketSocketWaterLayingMaleNutThreadsBearingDepthLengthClear
PipeEndBoreWallWayLengthFlange(Min.)Per(Min.)ofAssem.Assem.
Size(Min.)Dia.(Min.)Bore
(Min.)
25.4mm
SocketNom.Nut










(Min.)


ABCDEFGHJKLN
1/8"21.811.183.187.5922.43.183.18161.249.741.450.8
10.676.0719.1
1/4"21.814.613.310.0122.43.183.18161.249.741.450.8
14.18.4819.1
3/8"25.918.033.5113.2826.93.433.43141.379.74655.9
17.5311.7620.6
1/2"31.222.234.0916.5626.93.683.68141.59.74958.4
21.7315.0420.6
3/4"37.127.564.2721.6931.84.064.06111.6812.756.966
27.0520.1725.4
1"45.534.294.9827.4134.34.574.45111.8512.76278.7
33.7825.8826.2
1-1/4"54.943.055.2835.8140.65.335.21112.1312.771.194
42.5534.2932.5
1-1/2"61.549.155.5441.6642.25.845.59102.3112.776.5111.8
48.6440.1334
2"75.261.626.0553.2645.56.66.35102.6915.786.1132.1
61.1151.7437.3
2-1/2"91.774.457.6764.2461.77.497.1183.0715.7102.4149.9
73.8161.1952.1
3"109.290.428.3179.4563.88.26883.5315.7109175.3
89.7976.453.6

(1) Dimensions in Millimeters.

(2) Average of socket wall thickness around periphery shall be no less than listed values. The minimum values are permitted in localized areas.

(3) Upper and lower values for each size are the respective maximum and minimum dimensions.


Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, the standard export packaging is done in wooden cases. All forged fittings are marked with Grade, Lot No, Size, Degree, and our trademark. On special requests, we can also, make custom marking on our products.

Quality Assurance

At MetalGoods, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report.
