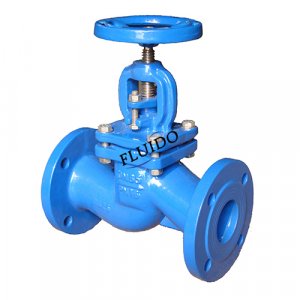

DIN3356 Cast Iron Globe Valve
Basic Design: DIN3356
Face to Face: DIN3202-F1
Flanges: DIN2533 PN16
Testing: DIN3230
| PRESSURE TEST TO DIN3230 | |||
| DN | Pressure Rating(PN) | Hydro-Test Pressure(MPa) | |
| Body | Seat | ||
| 15-300 | 10 | 1.5 | 1.1 |
| 15-300 | 16 | 2.4 | 1.76 |

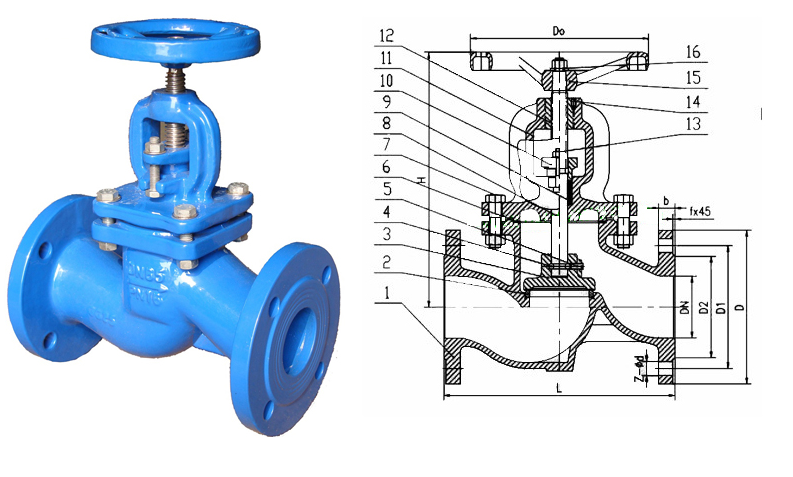

Technical Specifications of DIN3356 Cast Iron Globe Valve:
| MATERIALS | ||
| ITEM | PARTS NAME | MATERIAL |
| 1 | BODY | CAST IRON |
| 2 | SEAT RING | BRASS/STAINLESS STEEL |
| 3 | DISC | CAST IRON+BRASS/STAINLESS STEEL |
| 4 | STEEL BALL | |
| 5 | BOLT | CARBON STEEL |
| 6 | GASKET | GRAPHITE |
| 7 | BOLT NUT | CARBON STEEL |
| 8 | STEM | STAINLESS STEEL |
| 9 | PACKING | GRAPHITE |
| 10 | GLAND | CAST IRON |
| 11 | BONNET | CAST IRON |
| 12 | STEM NUT | BRASS |
| 13 | BOLT NUT | CARBON STEEL |
| 14 | BOLT | CARBON STEEL |
| 15 | WHEEL | CAST IRON |
| 16 | NUT GASKET | CARBON STEEL |
Parts and Materials of DIN3356 Cast Iron Globe Valve:
| DN | L | D | D1 | D2 | b | Z-∮d | f | H | DO |
| 15 | 130 | 95 | 65 | 47 | 14 | 4-14 | 2 | 170 | 80 |
| 20 | 150 | 105 | 75 | 58 | 16 | 4-14 | 2 | 170 | 80 |
| 25 | 160 | 115 | 85 | 68 | 16 | 4-14 | 2 | 190 | 100 |
| 32 | 180 | 140 | 100 | 78 | 18 | 4-18 | 2 | 210 | 120 |
| 40 | 200 | 150 | 110 | 88 | 18 | 4-18 | 3 | 220 | 120 |
| 50 | 230 | 165 | 125 | 102 | 20 | 4-18 | 3 | 235 | 140 |
| 65 | 290 | 185 | 145 | 122 | 20 | 4-18 | 3 | 275 | 160 |
| 80 | 310 | 200 | 160 | 138 | 22 | 8-18 | 3 | 335 | 240 |
| 100 | 350 | 220 | 180 | 158 | 24 | 8-18 | 3 | 375 | 240 |
| 125 | 400 | 250 | 210 | 188 | 26 | 8-18 | 3 | 425 | 280 |
| 150 | 480 | 285 | 240 | 212 | 26 | 8-23 | 3 | 490 | 320 |
| 200 | 600 | 340 | 295 | 268 | 30 | 12-23 | 3 | 620 | 360 |
| 250 | 730 | 405 | 355 | 320 | 32 | 12-27 | 3 | 705 | 400 |
