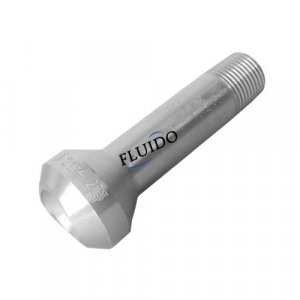

Manufacturer of ASME B16.11 3000LB, 6000LB, 9000LB Forged Pipe Fittings in China.
Porduct Name: elbow, tee, cap, bushing, coupling, pipe nipple, hex, nipple, weldolet, threadolet, sockolet, socket, cap, cross, flangolet, union, swage nipple, etc..
Size: 1/8"-4" threaded and socket weld type
Pressure:
Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)
Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)
Conection: Thread (NPT, BSP,RP, G) ,Socket Welding
Type: Elbow,Tee,nipple,full coupling, half coupling,lateral,cross,cap, plug,hex head nipple, swage nipple,union,weldolet,sockolet, threadolet, nipolet, elbolet, latrolet etc.
Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;
Surface Treatment: Sand blasting, Anti-rust oil, Galvanized, Polished, black.
Wall thickness: SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.
Material:
Stainless steel: A182 F304/304L, A182 F316/316L, A182 F321, A182 F310S, A182 F347H, A182 F316Ti, A182 F317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541, 254Mo and etc.
Carbon steel: ASTM A105, A350LF2, Q235, St37, 20#, 16Mn, St45.8, A42CP, E24 , A515 Gr60, A515 Gr 70, A420 WPL6 etc.
Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc.
Pipeline steel: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc.
Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H, C22, C 276, Monel400, Alloy20 etc.
Cr-Mo alloy: A182 F11,A182 F5, A182 F22, A182 F91, A182 F9, 16mo3 etc.
Application: Petroleum Chemical,Refinery, Pharmacy Industry, Food & Beverage Industry, Sea Water Desalination,Paper Making, Shipbuilding Industry, Electric power, Offshore & onshore oil&gas, Mining Industry, Water Treatment, Mechanical Making, Chemical fertilizer etc.
Package: Cartons in wooden cases.
MOQ: to be negotiated.
Sample: Available
Price: >>DOWNLOAD the forged fittings newest price list from PRICE LIST AND TECH
Service: Customized OEM
Payment term: T/T or L/C
Delivery:7-30days according to order quantity.
Socket Weld Outlet Dimension
| Out-Let | Reducing Way | |||||||||
| Pipe | C | D | F | J | E | |||||
| NPS | (Min.) | (Min.) | ||||||||
| 3000 | 6000 | 3000 | 6000 | 3000 | 6000 | 3000 | 6000 | 3000 | 6000 | |
| 1/8" | 13.7 | --- | 10.8 | --- | 22 | --- | 9.7 | --- | 10.4 | --- |
| 1/4" | 13.7 | --- | 14.2 | --- | 22 | --- | 9.7 | --- | 10.4 | --- |
| 3/8" | 19.1 | --- | 17.6 | --- | 25.9 | --- | 9.7 | --- | 12.7 | --- |
| 1/2" | 21.3 | 16.6 | 21.8 | 21.8 | 31.4 | 38 | 9.7 | 9.7 | 16 | 23.9 |
| 3/4" | 26.7 | 21.2 | 27.2 | 27.2 | 37.1 | 44 | 12.7 | 12.7 | 16 | 25.4 |
| 1" | 33.4 | 27 | 33.9 | 33.9 | 45.5 | 57 | 12.7 | 12.7 | 22.4 | 28.7 |
| 1-1/4" | 42.2 | 35.8 | 42.7 | 42.7 | 57 | 54 | 12.7 | 12.7 | 22.4 | 30.2 |
| 1-1/2" | 48.3 | 41.2 | 48.8 | 48.8 | 64 | 76 | 12.7 | 12.7 | 23.9 | 31.8 |
| 2" | 60.3 | 51.6 | 61.2 | 61.2 | 76 | 92 | 15.8 | 15.8 | 23.9 | 36.6 |
| 2-1/2" | 73.2 | --- | 73.9 | --- | 92 | --- | 15.8 | --- | 25.4 | --- |
| 3" | 88.9 | --- | 89.8 | --- | 109.2 | --- | 15.8 | --- | 30.2 | --- |
| 4" | 114.3 | --- | 115.2 | --- | 140 | --- | 19.1 | --- | 30.2 | --- |
| Out-Let | Staight Way | ||||
| Pipe | C | D | F | J | E |
| NPS | (Min.) | (Min.) | |||
| 3000 | |||||
| 1/8" | --- | --- | --- | --- | --- |
| 1/4" | 11.5 | 14.2 | 22 | 9.7 | 10.4 |
| 3/8" | 14.5 | 17.6 | 25.9 | 9.7 | 12.7 |
| 1/2" | 16.5 | 21.8 | 31.4 | 9.7 | 16 |
| 3/4" | 21.5 | 27.2 | 37.1 | 12.7 | 16 |
| 1" | 27.2 | 33.9 | 45.5 | 12.7 | 22.4 |
| 1-1/4" | 36 | 42.7 | 57 | 12.7 | 22.4 |
| 1-1/2" | 42 | 48.8 | 64 | 12.7 | 23.9 |
| 2" | 53 | 61.2 | 76 | 15.8 | 23.9 |
| 2-1/2" | 65 | 73.9 | 92 | 15.8 | 25.4 |
| 3" | 80 | 89.8 | 109.2 | 15.8 | 30.2 |
| 4" | 104 | 115.2 | 140 | 19.1 | 30.2 |
(1) Dimensions in Millimeters.
(2) Socket in accordance with ASME B16.11
(3) 3000LBS outlet size 4 and less fit a number of run pipe sizes and the fitting are marked accordingly.
Conventional Run Size Combinations
| OUTLET SIZE | ||||||||||||
| 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | ||
| RUN SIZE | Reducing Way | 3/8"~3/4" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 5" |
| (Main Pipe) | 1"~36" | 3/4"~1-1/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 4" | 6" | |
| 1-1/2"~36" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 4" | 5" | 8" | |||
| 1-1/2"~3" | 2"~3" | 2-1/2" | 3" | 3-1/2" | 4" | 5" | 6" | 10" | ||||
| 3-1/2"~36" | 3-1/2"~6" | 3" | 3-1/2"~5" | 4"~5" | 5"~6" | 6" | 8" | 12"~14" | ||||
| 8"~36" | 3-1/2"~4" | 6"~8" | 6"~10" | 8"~10" | 8" | 10" | 16"~18" | |||||
| 5"~10" | 10"~36" | 12"~36" | 12"~18" | 10"~14" | 12"~16" | 20"~24" | ||||||
| 12"~36" | 20"~36" | 16"~36" | 18"~36" | 26"~36" | ||||||||
| Straight Way | 3/8"~36" | 1/2"~36" | 3/4"~36" | 1"~36" | 1-1/4"~1-1/2" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 5" | |
| 2"~36" | 2"~3" | 2-1/2"~4" | 3"~3-1/2" | 3-1/2"~4" | 4" | 6" | ||||||
| 3-1/2"~36" | 5"~36" | 4"~6" | 5"~8" | 5" | 8" | |||||||
| 8"~36" | 10"~36" | 6" | 10" | |||||||||
| 8"~12" | 12"~16" | |||||||||||
| 14"~36" | 18"~36" | |||||||||||
Note:Each charted outlet size is designed to fit number of run pipe size.
