Steel Pipe Nipple BS EN10241
ISO 9001/BSI/SGS Approved: Pipe nipple, socket, coupling, nipple barrel, nipple swage, extension threaded nipple.
Steel Pipe Nipple Extension Nipple Long Threaded Pipes BSP NPT Standard Sch40 Pipes Nipple Barrel Nipple Swage Hose Nipple King Nipple Extension Nipple
Material: BS EN 10241
Standard Thread: ISO7/1 R , G thread, BSP thread
Dimensions: ASTM A733, ISO49, DIN2950, EN10242
Chemical Propety: (C %2.4-2.9),(Si %1.4-1.9),(Mn %0.4-0.65),(P% <0.1),(S% <0.2%)
Physical Property: Tensile strength>=350Mpa, Elongation>=10%,Hardness<=150HB
Testing Pressure: 2.5MPa
Working Pressure: 1.6MPa
Schedule: 40/80/160/XXS
Surface: Galvanized / Black / Sandblast
Schedule: Medium/Heavy

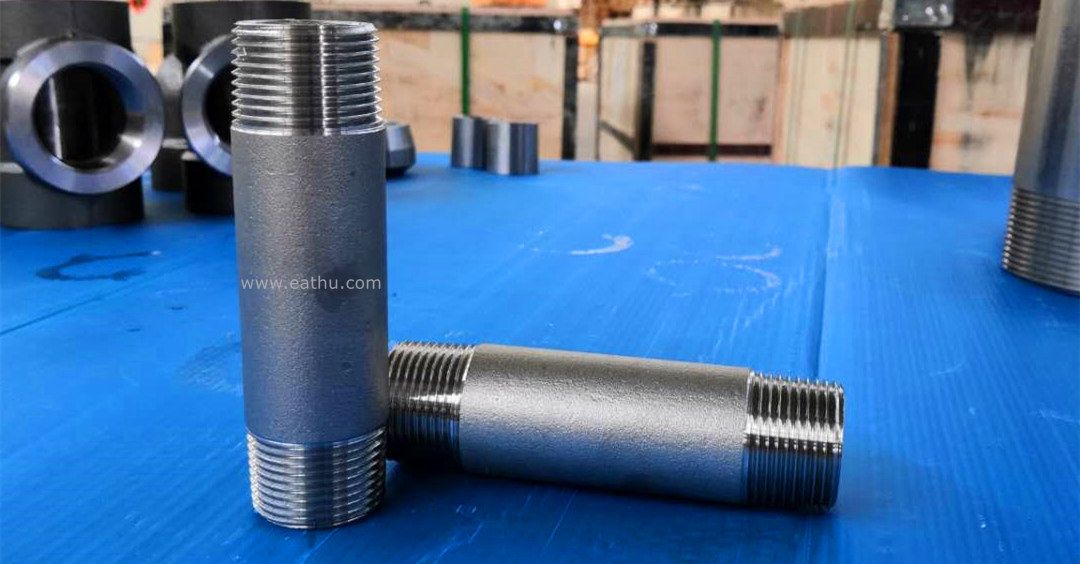

Steel Pipe Nipple BS EN10241

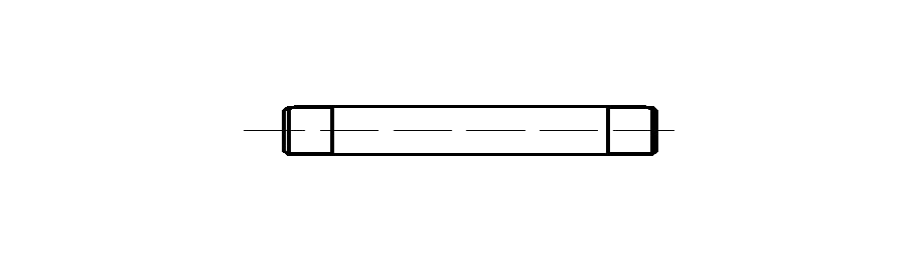

Steel Pipe Nipple BS EN10241
Size | CLOSE | Length(mm) | |||||||||||||
6 | ¡¡ | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
8 | 27 | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
10 | 28 | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
15 | 37 | - | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
20 | 39 | - | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
25 | 46 | - | - | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
32 | 51 | - | - | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
40 | 51 | - | - | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
50 | 60 | - | - | - | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
65 | 69 | - | - | - | - | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
80 | 75 | - | - | - | - | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | 400 | |
100 | 87 | - | - | - | - | - | 100 | 120 | 150 | 180 | 200 | 250 | 300 | 400 | |
125 | 96 | - | - | - | - | - | - | 120 | 150 | 180 | 200 | 250 | 300 | 400 | 500 |
150 | 96 | - | - | - | - | - | - | 120 | 150 | 180 | 200 | 250 | 300 | 400 | 500 |
Noted: Other lengths and size available. Grooved end, SQ end and Bevel end available. Contact Eathu for details.
