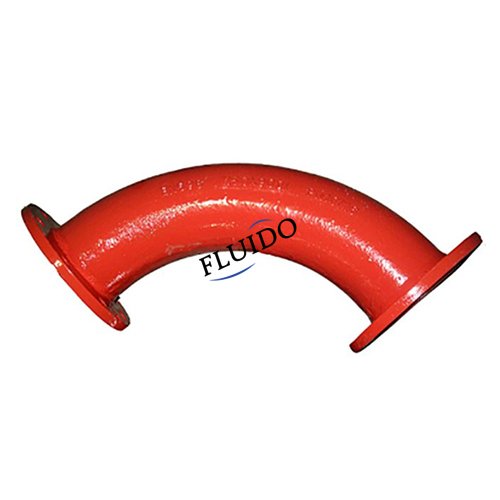

90° Double Flanged Long Radius Bend

Ductile Iron Pipe Fitting For DI Pipe

Types: Dismantling Joint, Universal Flange Adaptor, Universal Coupling, Ductile Iron Loose Flange Joint, DI Pipe Fitting, Saddle for PVC Pipe, Repair Clamp, Qucick Flange Adaptor, Gibault Joint, Restrained Flange Adaptor, Restrained Coupling, Valve, etc.

Material: MATERIAL: Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083 for ductile iron fitting body and retainer, EPDM/NBR for ring, steel zinced/dacro for stub.


Introduction






Specification: DN50-DN2000(2"-80"), available with PN10, PN16, PN25 and PN40 flanges

Ductile Iron Flange Fittings Standard: ISO2531, ISO4179, ISO8179, BS EN 545, BS EN598, BS4772, ISO7005-2, EN1092-2:1997, DIN2501, GBT13295

Flange: PN10, PN16 or PN25 drilling in accordance with ISO 7005-2/EN 1092-2.

Fluid Temperature: 0°C-50°C, excluding frost.

Pipe ends: Spigot, socket or flanges.

Internal coating: Cement mortar lining comply with ISO4179 or bitumen painting (Ave. min.70 micron) or Fusion Bonded Epoxy Coating

External coating: Sprayed metallic zinc coating (min.150g/m²) according to ISO8179 + bitumen painting (min.70 micron) or epoxy powder coating or epoxy painting or according to customer’s requirements.

Types: Dismantling Joint, Universal Flange Adaptor, Universal Coupling, Ductile Iron Loose Flange Joint, DI Pipe Fitting, Saddle for PVC Pipe, Repair Clamp, Qucick Flange Adaptor, Gibault Joint, Restrained Flange Adaptor, Restrained Coupling, Valve, etc.

Material: MATERIAL: Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083 for ductile iron fitting body and retainer, EPDM/NBR for ring, steel zinced/dacro for stub.

Application: Municipal Use, Waterworks Pipelines, Piping Fittings, Water Engineering, Potable Water Use, Irrigation Use, Water Supply Project Use, Water Treatment Plants Use, Pumping Stations, Water Utility Sectors, Water-Supply Pressure Pipeline, Potable Water Pumping Station, Stormwater Lines, Fire Water Pumping Station, Fresh Water Pumping Station, ect.

Test: In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test.


Dimensions of 90° Double Flanged Long Radius Bend

DNLMass (kg)standard
PN10PN16PN25
8038013.813.813.8EN545
100400181819EN545
150450303030EN545
2005004645.549.7EN545
25055066.465.273.2EN545
30060090.889.5101EN545
350650115121138.4EN545
400700146.4157.4180EN545
450750180197221EN545
500800222.6252.6275.8EN545
600900332379407.6EN545
