Ball Check Valve

Check Valve & Y Strainer

Ball Check Valve

Threaded ends DN32 to DN80

Flanged ends DN40 to DN300

Threaded type BSP according to ISO 228-1

Flanged type EN 1092-2 PN16 and AS4087 (AS2129 Table E)

Maximum working pressure 16 bars

Operating temperatures 10°C ~ 80°C

Seating according to category A standard ISO 5208

Minimum backpressure for tightness 0.3 bar to 0.5 bar

Face to Face dimensions for flanged type according to EN-558-1 serie 48 (DIN3202 F6)

Introduction

Flanged Ball Check Valves also known as check valves, its role is to prevent the flow of media in the pipeline. Open and close parts rely on the flow of media and force to open or close, in order to prevent the backflow of media valves called check valves.


Applications

Pumping stations for clean, sewage water and loaded or viscous fluids.


Technical performance

Full bore ensured

Self cleaning ball

Low pressure drop

Silent

Removeable bonnet for cleaning or changing the ball with out disassembly out of the pipeline

Horizontal and vertical installation in the pipeline



Test

Seat: 1.1x normal pressure

Body: 1.5x normal pressure


Threaded Ball Check Valve


Material Specification


ItemPart NameMaterial
1BodyDuctile Iron
2BonnetDuctile Iron
3BallSteel+NBR
Steel+EPDM

4Bonnet GasketNBR
EPDM

5BoltingStainless Steel



Dimensions (mm)


SizeLBHWeight (kg)
DN3213550722
DN4014560852
DN50175701003
DN65200901255
DN802481081607.5

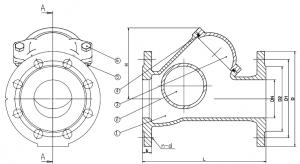

Flanged Ball Check Valve

Material Specification




ItemPart NameMaterial
1BodyDuctile Iron
2BonnetDuctile Iron
3BallSteel+NBR
Steel+EPDM

4Bonnet GasketNBR
EPDM

5BoltingStainless Steel



Dimensions (mm)


SizeLEN 1092-2 PN16AS 2129 table EbHWeight (kg)
DD1D2n-dDD1D2n-d
DN40180150110844-1915098784-1419906
DN502001651251024-19165114904-18191006.5
DN652401851451224-191851271034-181912511
DN802602001601388-192001461224-181913614.4
DN1003002201801588-192201781548-181918520
DN1253502502101888-192502101868-181919630.4
DN1504002852402128-232852352078-221926542.3
DN20050034029526812-233402922648-222034073.5
DN25060040535532012-2740535632812-2222420128
DN30070046041037812-2746040637412-2624.5480180

Big size Ball Check Valve


Material Specification



ItemPart NameMaterial
1BodyGGG40
2BallSteel + NBR
3BonnetGGG40
4Bonnet GasketNBR
5BoltSS304
6NutSS304



SizeLDEN 1092-2 PN10EN 1092-2 PN16bH
D1D2n-dD1D2n-d
DN35080052046042916-3247042916-2826.5615
DN40090058051548016-2852548016-3128680
DN450100064056554820-2858554820-3130791
DN500115071562060920-2865060920-3431.5866
DN600135084072572020-3177072020-37361110
