DIN Angle Globe Valve

Globe Valve

DIN Angle Globe Valve

DIN cast iron angle globe valve

Face to face: DIN3202-F32

Flange drilled: DIN2532/2533

Normal pressure: PN10/16

Size: DN15-DN300


Introduction

Material:

Cast iron or ductile iron body

Brass or bronze seat

Cast iron or ductile iron disc

Stainless steel stem

Cast iron or ductile bonnet

Cast iron or ductile hand wheel


The following are some of the typical applications of Cast Iron Angle globe valves:

* Cooling water systems where flow needs to be regulated

* Fuel oil system where flow is regulated and leaktightness is of importance

* High-point vents and low-point drains when leaktightness and safety are major considerations

* Feedwater, chemical feed, condenser air extraction, and extraction drain systems


MATERIALS
ITEMPARTS NAMEMATERIAL
1BODYCAST IRON
2SEAT RINGBRASS/STAINLESS STEEL
3SEAT RINGCAST IRON+BRASS/STAINLESS STEEL
4GASKETGRAPHITE
5BOLT NUTCARBON STEEL
6STEMSTAINLESS STEEL
7PACKINGGRAPHITE
8GLANDCAST IRON
9BONNETCAST IRON
10STEM NUTBRASS
11BOLT NUTCARBON STEEL
12BOLTCARBON STEEL
13WHEELCAST IRON
14NUT GASKETCARBON STEEL
15BOLTCARBON STEEL

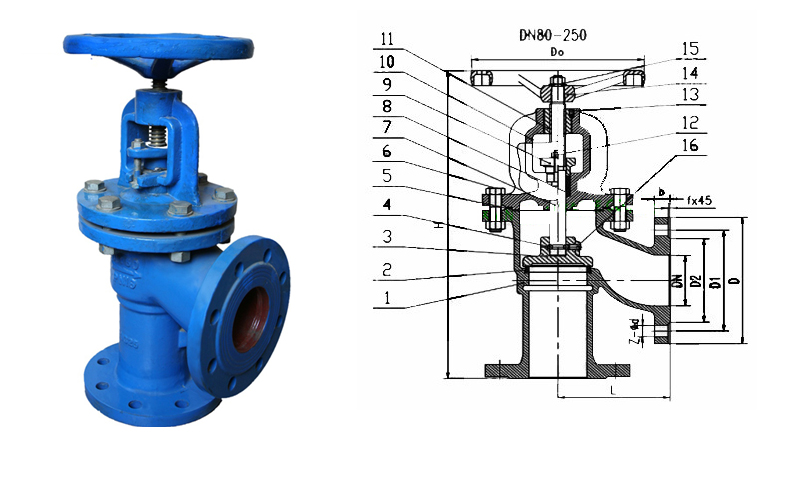

Dimensions (mm) of DIN Angle Globe Valve:
DNLDD1D2bZ-∮dfHDO
1590956547144-14226080
20951057558164-14228080
251001158568164-142290100
3210514010078184-142315120
4011515011088184-183345120
50125165125102204-183370140
65145185145122204-183415160
80155200160138228-183480240
100175220180158248-183545240
125200250210188268-183620280
150225285240212268-233700320
2002753402952683012-233845360
2503254053553203212-2731025400
