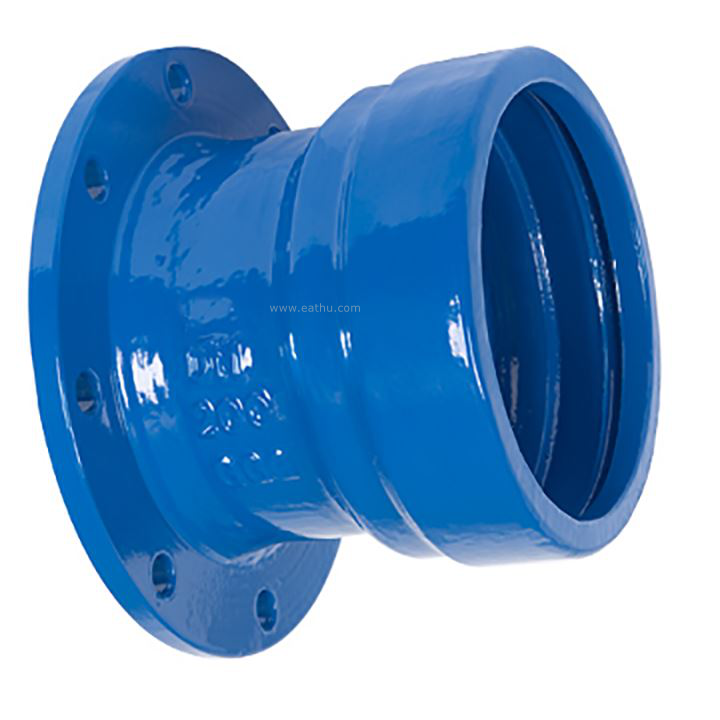

T-type Flanged Socket

Ductile Iron Push-on Fitting EN545 ISO2531

T-type Flanged Socket

Introduction


DI Socket Fittings With Push-on On Joint(Tyton Joint)


Specification: DN50-DN2000(2"-80"), available with PN10, PN16, PN25 and PN40 flanges

Ductile Iron Flange Fittings Standard: ISO2531, ISO4179, ISO8179, BS EN 545, BS EN598, BS4772, ISO7005-2, EN1092-2:1997, DIN2501, GBT13295

Flange: PN10, PN16 or PN25 drilling in accordance with ISO 7005-2/EN 1092-2.

Fluid Temperature: 0°C-50°C, excluding frost.

Pipe ends: Spigot, socket or flanges.

Internal coating:

Cement mortar lining comply with ISO4179 or bitumen painting (Ave. min.70 micron) or Fusion Bonded Epoxy Coating

External coating:

Sprayed metallic zinc coating (min.150g/m²) according to ISO8179 + bitumen painting (min.70 micron) or epoxy powder coating or epoxy painting or according to customer’s requirements.

Types:

Dismantling Joint, Universal Flange Adaptor, Universal Coupling, Ductile Iron Loose Flange Joint, DI Pipe Fitting, Saddle for PVC Pipe, Repair Clamp, Qucick Flange Adaptor, Gibault Joint, Restrained Flange Adaptor, Restrained Coupling, Valve, etc.

Material:

MATERIAL: Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083 for ductile iron fitting body and retainer, EPDM/NBR for ring, steel zinced/dacro for stub.

Application:

Municipal Use, Waterworks Pipelines, Piping Fittings, Water Engineering, Potable Water Use, Irrigation Use, Water Supply Project Use, Water Treatment Plants Use, Pumping Stations, Water Utility Sectors, Water-Supply Pressure Pipeline, Potable Water Pumping Station, Stormwater Lines, Fire Water Pumping Station, Fresh Water Pumping Station, ect.

Test: In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test.


Push on joint can assembled by pushing the spigot through the gasket in the socket of the mating component, and permits significant angular deflextion both during and after installation and which can accept a light offset of the centreline. As the Ductile Iron Push-on joint fitting manufacturer in China and Ductile Iron Push-on joint fitting factory, we hope working with you, we are eager to get your inquiries and establish long term mutual benefit cooperation relationship.

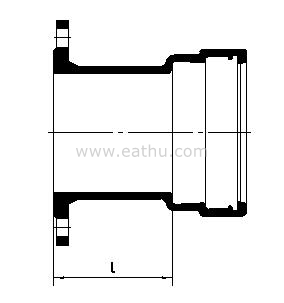

Dimensions of T-type Flanged Socket

DNLMass (kg)standard
PN10PN16PN25PN40
801307.47.47.47.4ISO2531/EN545
100130999.59.5ISO2531/EN545
12513511.511.512.113.4ISO2531/EN545
15013514.214.21617.3ISO2531/EN545
20014020.5202227.5ISO2531/EN545
2501452827.531.541.5ISO2531/EN545
3001503736.54257.5ISO2531/EN545
350155454856ISO2531/EN545
400160556071ISO2531/EN545
5001707893104ISO2531/EN545
600180108135149ISO2531/EN545
700190144159216ISO2531/EN545
