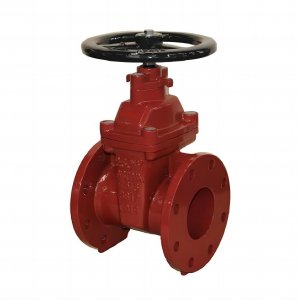

DIN3202 Cast Steel Gate Valve

Gate Valve

DIN3202 Cast Steel Gate Valve

1.Design and Manufacture:DIN3352 or DIN EN12288

2.Face to Face:DIN3202 or DIN EN558

3.Pressure: PN16-PN40

4.Size:DN50~DN600;1/2"-24"

5.Material:WCB,Bronze,Brass,Stainless steel

6.Type: Rising Stem, BB, FB, OS&Y

7.Operating temperature :-196℃~600℃

Introduction


DIN3202 Cast Steel Gate Valve

1.Design and Manufacture:DIN3352 or DIN EN12288

2.Face to Face:DIN3202 or DIN EN558

3.Pressure: PN16-PN40

4.Size:DN50~DN600;1/2"-24"

5.Material:WCB,Bronze,Brass,Stainless steel

6.Type: Rising Stem, BB, FB, OS&Y

7.Operating temperature :-196℃~600℃

8.Medium: water oil gas and so on

9.Operation: Hand Wheel. Gear Devices, Electric, Etc

10. Flanged End: DIN2543-2546 or DIN EN1092

11.Test&Inspection: DIN3230 or din en12266


Technical Specifications of DIN3202 Cast Steel Gate Valve:

NO.PARTASTM Material
WCBLCBWC6CF8(M)CF3(M)
1BODYA216 WCBA352 LCBA217 WC6A351 CF8(M)A351 CF3(M)
2GATEA216 WCB+13CrA352 LCB+13CrA217 WC6+STLA351 CF8(M)A351 CF3(M)
3SEATA105+13CrA105+13CrA217 WC6+STLA351 CF8(M)+STL6A351 CF3(M)+STL6
4STEMA182 F6A182 F6A182 F6A182 F304/F316A182 F304L/F316L
5BONNET BOLTA193 B7A320 L7A193 B16A193 B8(M)A193 B8(M)
6BONNET NUTA194 2HA194 7A194 4A194 8(M)A194 8(M)
7GASKETSS304+GRAPHITEPTFE/SS304+GRAPHITEPTFE/SS316+GRAPHITE
8BONNETA216 WCBA352 LCBA217 WC6A351 CF8(M)A351 CF3(M)
9BACKSEATA182 F6A182 F6A182 F6--
10PACKINGFLEXIBLE GRAPHITEPTFE/FLEXIBLE GRAPHITE
11GLANDA182 F6A182 F6A182 F6A182 F304A182 F304L/F316L
12GLAND FLANGEA216 WCBA352 LCBA217 WC6A351 CF8(M)A351 CF3(M)
13GLAND EYEBOLTA193 B7A193 B8A193 B8
14NUTA194 2HA194 8A194 8
15PINAISI 1025AISI 1025
16STEM NUTBRONZEBRONZE
17HANDWHEEL NUTAISI 1035AISI 1035
18SCREWASTM A36ASTM A36
19HANDWHEELA536 60-40-18A536 60-40-18
20BEARING GLANDAISI 1035AISI 1035
21GREASE NIPPLEBRASSBRASS
22NAMEPLATESS304SS304

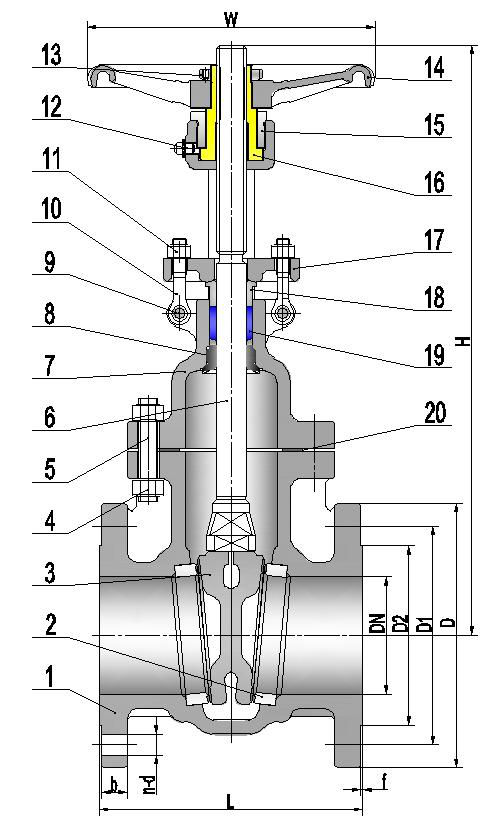

Parts and Materials of DIN3202 Cast Steel Gate Valve:

NPS23456810121416182024
L250270280300325350400450500550600650700800
D165185200235270300360425485555620670730745
b2022242426283032343840464858
n-d4-208-228-248-248-268-2812-3012-3216-3416-3816-4020-4620-4820-58
