EN545 90° Double Flanged Bend

Ductile Iron Pipe Fitting For DI Pipe

Types: Dismantling Joint, Universal Flange Adaptor, Universal Coupling, Ductile Iron Loose Flange Joint, DI Pipe Fitting, Saddle for PVC Pipe, Repair Clamp, Qucick Flange Adaptor, Gibault Joint, Restrained Flange Adaptor, Restrained Coupling, Valve, etc.

Material: MATERIAL: Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083 for ductile iron fitting body and retainer, EPDM/NBR for ring, steel zinced/dacro for stub.


Introduction


Specification: DN50-DN2000(2"-80"), available with PN10, PN16, PN25 and PN40 flanges

Ductile Iron Flange Fittings Standard: ISO2531, ISO4179, ISO8179, BS EN 545, BS EN598, BS4772, ISO7005-2, EN1092-2:1997, DIN2501, GBT13295

Flange: PN10, PN16 or PN25 drilling in accordance with ISO 7005-2/EN 1092-2.

Fluid Temperature: 0°C-50°C, excluding frost.

Pipe ends: Spigot, socket or flanges.

Internal coating: Cement mortar lining comply with ISO4179 or bitumen painting (Ave. min.70 micron) or Fusion Bonded Epoxy Coating

External coating: Sprayed metallic zinc coating (min.150g/m²) according to ISO8179 + bitumen painting (min.70 micron) or epoxy powder coating or epoxy painting or according to customer’s requirements.

Types: Dismantling Joint, Universal Flange Adaptor, Universal Coupling, Ductile Iron Loose Flange Joint, DI Pipe Fitting, Saddle for PVC Pipe, Repair Clamp, Qucick Flange Adaptor, Gibault Joint, Restrained Flange Adaptor, Restrained Coupling, Valve, etc.

Material: MATERIAL: Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083 for ductile iron fitting body and retainer, EPDM/NBR for ring, steel zinced/dacro for stub.

Application: Municipal Use, Waterworks Pipelines, Piping Fittings, Water Engineering, Potable Water Use, Irrigation Use, Water Supply Project Use, Water Treatment Plants Use, Pumping Stations, Water Utility Sectors, Water-Supply Pressure Pipeline, Potable Water Pumping Station, Stormwater Lines, Fire Water Pumping Station, Fresh Water Pumping Station, ect.

Test: In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test.

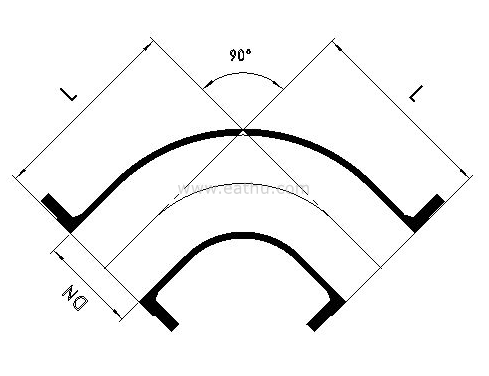

EN545 90° Double Flanged Bend

DNLMass (kg)standard
PN10PN16PN25PN40
401405.25.25.25.2ISO2531/EN545
501506.56.56.56.5ISO2531/EN545
601607.37.37.17.1ISO2531/EN545
651658.28.288ISO2531/EN545
801659.69.69.69.8ISO2531/EN545
10018011.911.912.913ISO2531/EN545
12520015.615.616.919.5ISO2531/EN545
15022020202226.5ISO2531/EN545
2002603130.534.545ISO2531/EN545
2503505049.55777ISO2531/EN545
300400707081111ISO2531/EN545
3504509296113ISO2531/EN545
400500116127149ISO2531/EN545
450550147163184ISO2531/EN545
500600181211235ISO2531/EN545
600700272325353ISO2531/EN545
700800395422ISO2531/EN545

800900533572ISO2531/EN545

9001000698745ISO2531/EN545

10001100907990ISO2531/EN545

1100120011641234ISO2531

1200130014631573ISO2531

1400135019482062ISO2531

1500140022732449ISO2531

1600145026632841ISO2531

1800150033483572ISO2531
