180° Return Elbow

Butt Welding Pipe Fittings

Size: 1/2"-80"/DN15-DN2000

Technical: Forged and pushing

Material: Carbon Steel, Stainless Steel, Alloy Steel

Carbon Steel:ASTM, A234WPB, A234WPC, A420WPL6, Q235,10#, A3, Q235A, 20G, 16Mn, DIN St37, St45.8, St52.4, St.35.8, St.35.8.

Stainless Steel:1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti,00Cr17Ni14Mo2 304 304L 316 316L

Alloy Steel:16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1,A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70

Standard: ASME/ANSI B16.9, B16.11, B16.28, JIS B2311, B2312, B2312, B2316 ASTM A403 MSS SP-43, SP-83, SP-97

Model: 45°/ 90°/180 LR/SR Elbow, Reducers, Tee, Bends, Cap, Cross.

Type: Seam Or Seamless

End: beveled end

Surface: Black Paint/Rust-proof Oil/Hot Dipped Galvanized

Wall Thickness: SCH10/10S, SCH20/20S, STD, SCH40/40S, XS, SCH80,SCH100, SCH120, SCH140, SCH160, XXS etc.(for ANSI),SGP(for JIS)

Elbow Angles: 30/45/60/90/180°

Connection: Welding

Shape:Equal, Reducing

Certificate: ISO -9001:2000, API, CCS

Application:Petrochemical & Gas industry, Power industry, Valve industry, Water works, Shipbuilding industry, Construction etc

Packing: Plywood Pallets/ Wooden Case Or As Per your Specification

MOQ: to be negotiated.

Sample: Available

Price: >>Get newest price list

Service: Customized OEM

Pakage: wooden case & pallet

Payment term: T/T or L/C

Delivery:7-30days according to order quantity.


Butt weld 180 return elbow is a kind of  butt weld fittings.

There are two types of butt weld 180 elbow, Butt weld 180 long radius elbow(180 LR elbow) and Butt weld 180 short radius elbow(180 SR elbow).The difference between them is the center to end distance.LR elbow center to end is 1.5 times of norminal pipe size,SR elbow center to end is equal to the norminal pipe size. Buttweld elbows below 24 inches are produced by cutting, heating and bending seam or seamless steel pipes; pipe elbows of larger sizes are made from welded pipes or steel plates.

ASME B16.9: 180D Return S/R

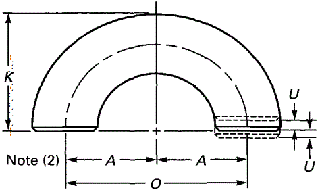

Technical Drawing of 180D Return S/R Buttwelding(ASME B16.9)

Dimensions of 180D Return Short Radius BW(ASME B16.9)

Norminal PipeOutsideCenter to CenterBack to Face
Size (NPS)DiameterOK

*All dimensions are in mm unit(inch unit data sheet is also available upon request).

*Check the tolerances and materials for butt welding pipe fittings from "Price List and Techinical"

*Tolerances of dimensions are in conformance with ASME B16.9

Butt welding pipe fittings standard:

ASME B16.49-2007 Factory-Made,Wrought Steel, Buttwelding Induction Bends for Transportation and

ASME-B16.9-2007 Factory-Made Wrought Butt Welding Fitting

DIN2617-1991 Steel butt-welding pipe fittings

JIS G3452 SGP 1997  Steel Butt-welding pipe fittings for ordinary use

Weight for butt welding pipe fitting

Tolerances for ASME DIN JIS MSS Butt Welding Pipe Fittings

Wall Thickness Schedules (ASME B36.10 B36.19)
