Blind Flange

Flange

1. Blind Flange Size: 1/2"-60"(DN10-DN1500)


2. Blind Flange Types: Slip-On flange, Welding Neck flange, Blind flange, Socket Welding flange, Threaded flange, Lap Joint flange, Plate flange, Long Welding Neck and  flat flange etc;


3. Blind Flange Material:

Carbon steel: ASTM A105/SA105N; ASTM A350 LF1; LF2; CL1/CL2, CT20;16MN;RST37.2;S235JR;P245GH;P250GH;P250GHM; C22.8;Q235;15CrMo

Stainless steel: ASTM A182, SS303; SS304/304L; SS316/316L; F321; F347; 316Ti; A182F317/317L; SS400;SF440

Alloy Steel:ASTM A182 A182 F12,F11,F22,F5,F9,F91,F51,F53,F55,F60,F44,F304H,F316H,F317H,F321H,F347H,INCONEL 600,625,825,etc.


4. Blind Flange Wall Thickness: Sch5, Sch10, Sch20 , Sch30, STD, Sch40, XS,Sch80, Sch100, Sch120, Sch140, XXS, Sch160;


5. Blind Flange Connection Type: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small-Tongue, Groove, etc


6. Blind Flange Pressure Rating:

ANSI B16.5: Class 150 Flanges-Class 2500 Flanges;

DIN: 6Bar 10Bar 16Bar 25Bar 40Bar 63Bar

JIS: 5K Flanges-30K Flanges

EN1092-1: 6Bar 10Bar 16Bar 25Bar 40Bar 63Bar 100Bar


7. Blind Flange Surface treatment: Anti-rust oil, black / yellow / transparent / electric galvanized / hot galvanized.


8. Blind Flange Sealing Surface: FF, RF, MFM, TG, FF


9. Blind Flange Heat Treatment: Normalizing, Annealing, Quenching Tempering.


10. Blind Flange Standard:

(1) ANSI B16.5, A105 150LB / 300LB / 600LB / 900LB / 1500LB / 2500LB

(2) DIN 2573 PN6 / DIN 2576 PN10 / DIN2502 PN16 / DIN2503 P25-40 / DIN2566 PN16 / DIN2631-2635 RST37.2 OR C22.8

(3) JIS SS400 OR SF440 5K / 10K / 16K / 20K / 30K

(4) UNI 2276 / 2277 / 2278 / 6084 / 6089 / 6090 / 2544 / 2282 / 6091-6093

(5) EN1092 PN6 / PN10 / PN16 / PN25 / PN40 / TYPE1 TYPE2 TYPE 5 TYPE 12 TYPE 13

(6) BS4504 SANI1123 1000/3, 1600/3, 2500/3, T/D, T/E, T/F carbon steel flange

(7) AS2129 TABLE D / TABLE H / TABLE E carbon steel flange

(8) GOST 12820-80 / 12821-80 carbon steel flange


11. Blind Flange Tolerance: according to the standard.

12. Blind Flange Certification: ISO9001:2000 , API, CE

13. Blind Flange Package: Plywood pallet or case.

14. Blind Flange Delivery time: At the earliest ,within the period required by customer.

15. Blind Flange Payment term: T/T or L/C

16. Blind Flange Sample: available

17. Blind Flange Price: >>Get newest price list

Introduction

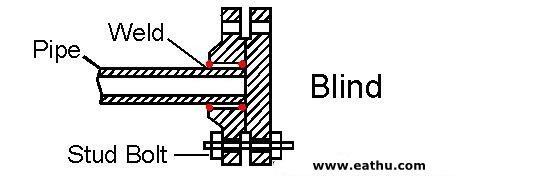

 Blind Flange, is also called BL flange. There is no hole in the center, and the function is to close or isolate the pipeline. Mainly used for pipe ends or as heads. Blind flange can be used in an existing operation flow, or for future expansion requirements. It also permits easy access to the interior of a line or vessel, once it has been sealed and must be reopened.

Eathu can supply carbon steel bind flange and stainless steel blind flange.Size range of blind flange:1/2”-24”,customize up to 48”;pressure of blind flange:150LBS/300LBS/400LBS/600LBS/900LBS/1500LBS/2500LBS.The face type:FF,RF,MFM,RTJ,TG.


RTJ blind flange normally use for high pressure occasion which from PN6.3 to PN25.0;RF blind flange normally use for PN0.25 to PN25.0

As the blind flange manufacturers in China,EATHU can also supply OEM flanges according to customers’ drawings or designs.

Welcome to contact Eathu for more information.


Dimensions and Weight Chart for ASME/ANSI B16.5 Class150 Blind Flange

PipeFlangeRaised  FaceDrilling TemplateApprox. Weight
Norm.O DDbgNumberlk
sizein.in.in.in.in.in.Pounds

mmmmmmmmmmmmKgs
1/2"0,843,500,441,3840,622,380,9
21,388,911,235,115,760,50,42
3/4"1,053,880,501,6940,622,751,3
26,798,612,742,915,769,90,61
1"1,3154,250,562,0040,623,121,9
33,4108,014,250,815,779,20,86
1 1/4"1,664,620,622,5040,623,502,6
42,2117,315,763,515,788,91,17
1 1/2"1,905,000,692,8840,623,883,4
48,3127,017,573,215,798,61,53
2"2,3756,000,753,6240,754,755,3
60,3152,419,191,919,1120,72,42
2 1/2"2,8757,000,884,1240,755,508,7
73,0177,822,4104,619,1139,73,94
3"3,507,500,945,0040,756,0010,9
88,9190,523,9127,019,1152,44,93
3 1/2"4,008,500,945,5080,757,0013,6
101,6215,923,9139,719,1177,86,17
4"4,509,000,946,1980,757,5015,4
114,3228,623,9157,219,1190,57,00
5"5,56310,000,947,3180,888,5019,0
141,3254,023,9185,722,4215,98,63
6"6,62511,001,008,5080,889,5024,9
168,3279,425,4215,922,4241,311,3
8"8,62513,501,1210,6280,8811,7543,2
219,1342,928,4269,722,4298,519,6
10"10,7516,001,1912,75121,0014,2563,4
273406,430,2323,925,4362,028,8
12"12,7519,001,2515,00121,0017,0095,2
323,8482,631,8381,025,4431,843,2
14"14,021,001,3816,25121,1218,75128
355,6533,435,1412,828,4476,358,1
16"16,023,501,4418,50161,1221,25167
406,4596,936,6469,928,4539,876,0
18"18,025,001,5621,00161,2522,75206
457,2635,039,6533,431,8577,993,7
20"20,027,501,6923,00201,2525,00269
508698,542,9584,231,8635,0122
24"24,032,001,8827,25201,3829,50408
609,6812,847,8692,235,1749,3185


Dimensions and Weight Chart for ASME/ANSI B16.5 Class300 Blind Flange

PipeFlangeRaised  FaceDrilling TemplateApprox. Weight
Norm.O DDbgNumberlk
sizein.in.in.in.in.in.Pounds

mmmmmmmmmmmmKgs
1/2"0,843,750,561,3840,622,621,4
21,395,214,235,015,766,50,64
3/4"1,054,620,621,6940,753,252,4
26,7117,315,742,919,082,51,11
1"1,3154,880,692,0040,753,503,1
33,4123,917,550,819,088,91,39
1 1/4"1,662,250,752,5040,883,883,9
42,2133,319,063,522,398,51,79
1 1/2"1,906,120,812,8840,754,505,9
48,3155,420,673,219,0114,32,66
2"2,3756,500,883,6280,885,007,0
60,3165,122,391,922,3127,03,18
2 1/2"2,8757,501,004,1280,885,8810,7
73,0190,525,4104,622,3149,34,85
3"3,508,251,125,0080,886,6215,0
88,9209,528,4127,022,3168,16,81
3 1/2"4,009,001,195,5080,887,2519,2
101,6228,630,2139,722,3184,18,71
4"4,5010,001,256,1980,887,8825,3
114,3254,031,7157,222,3200,111,5
5"5,56311,001,387,3180,889,2534,4
141,3279,435,0185,722,3234,915,6
6"6,62512,501,448,50120,8810,6246,0
168,3317,536,5215,922,3269,720,9
8"8,62515,001,6210,62121,0013,0075,6
219,1381,041,1269,725,4330,234,3
10"10,7517,501,8812,75161,1215,25117
273444,547,7323,928,4387,353,3
12"12,7520,502,0015,00161,2517,75174
323,8520,750,8381,031,7450,878,8
14"14,023,002,1216,25201,2520,25231
355,6584,253,8412,831,7514,3105
16"16,025,502,2518,50201,3822,50302
406,4647,757,1469,935,0571,5137
18"18,028,002,3821,00241,3824,75386
457,2711,260,4533,435,0571,5175
20"20,030,502,5023,00241,3824,75487
508774,763,5584,235,0628,6221
24"24,036,002,7527,25241,6232,00747
609,6914,469,8692,241,1812,8339


Dimensions and Weight Chart for ASME/ANSI B16.5 Class600 Blind Flange

PipeFlangeRaised  FaceDrilling TemplateApprox. Weight
Norm.O DDbgNumberlk
sizein.in.in.in.in.in.Pounds

mmmmmmmmmmmmKgs
1/2"0,843,750,561,3840,622,621,7
21,395,314,235,115,766,50,76
3/4"1,054,620,621,6940,753,252,8
26,7117,315,742,919,182,61,28
1"1,3154,880,692,0040,753,503,5
33,412417,550,819,188,91,60
1 1/4"1,665,250,812,5040,753,884,9
42,2133,420,663,519,198,62,23
1 1/2"1,906,120,882,8840,884,507,2
48,3155,422,473,222,4114,33,25
2"2,3756,501,003,6280,755,009,1
60,3165,125,491,919,1127,04,15
2 1/2"2,8757,501,124,1280,885,8813,5
73,0190,528,4104,622,4149,46,13
3"3,508,251,255,0080,886,6218,6
88,9209,631,8127,022,3168,18,44
3 1/2"4,009,001,385,5081,007,2524,2
101,6228,635,1139,725,4184,211,0
4"4,5010,751,506,1981,008,5038,1
114,3273,138,1157,225,4215,917,3
5"5,56313,001,757,3181,1210,5064,8
141,3330,244,5185,728,4266,729,4
6"6,62514,001,888,50121,1211,5079,5
168,3355,6 47,8215,928,4292,136,1
8"8,62516,502,1910,62121,2513,75130
219,1419,1 55,6269,731,8349,358,9
10"10,7520,002,5012,75161,3817,00215
273508,063,5323,935,1431,897,5
12"12,7522,002,6215,00201,3819,25273
323,8558,866,5381,035,1489,0124
14"14,023,752,7516,25201,5020,75333
355,6603,369,9412,838,1527,1151
16"16,027,003,0018,50201,6223,75471
406,4685,876,2469,941,1603,3214
18"18,029,253,2521,00201,7525,75599
457,2743,082,6533,444,5654,1272
20"20,032,003,5023,00241,7528,50769
508812,888,9584,244,5723,9349
24"24,037,004,0027,25242,0033,001174
609,6939,8101,6692,250,8838,2533
