ISO2531 45° Double Flanged Bend

Ductile Iron Pipe Fitting For DI Pipe

Types: Dismantling Joint, Universal Flange Adaptor, Universal Coupling, Ductile Iron Loose Flange Joint, DI Pipe Fitting, Saddle for PVC Pipe, Repair Clamp, Qucick Flange Adaptor, Gibault Joint, Restrained Flange Adaptor, Restrained Coupling, Valve, etc.

Material: MATERIAL: Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083 for ductile iron fitting body and retainer, EPDM/NBR for ring, steel zinced/dacro for stub.


Introduction



Specification: DN50-DN2000(2"-80"), available with PN10, PN16, PN25 and PN40 flanges

Ductile Iron Flange Fittings Standard: ISO2531, ISO4179, ISO8179, BS EN 545, BS EN598, BS4772, ISO7005-2, EN1092-2:1997, DIN2501, GBT13295

Flange: PN10, PN16 or PN25 drilling in accordance with ISO 7005-2/EN 1092-2.

Fluid Temperature: 0°C-50°C, excluding frost.

Pipe ends: Spigot, socket or flanges.

Internal coating: Cement mortar lining comply with ISO4179 or bitumen painting (Ave. min.70 micron) or Fusion Bonded Epoxy Coating

External coating: Sprayed metallic zinc coating (min.150g/m²) according to ISO8179 + bitumen painting (min.70 micron) or epoxy powder coating or epoxy painting or according to customer’s requirements.

Types: Dismantling Joint, Universal Flange Adaptor, Universal Coupling, Ductile Iron Loose Flange Joint, DI Pipe Fitting, Saddle for PVC Pipe, Repair Clamp, Qucick Flange Adaptor, Gibault Joint, Restrained Flange Adaptor, Restrained Coupling, Valve, etc.

Material: MATERIAL: Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083 for ductile iron fitting body and retainer, EPDM/NBR for ring, steel zinced/dacro for stub.

Application: Municipal Use, Waterworks Pipelines, Piping Fittings, Water Engineering, Potable Water Use, Irrigation Use, Water Supply Project Use, Water Treatment Plants Use, Pumping Stations, Water Utility Sectors, Water-Supply Pressure Pipeline, Potable Water Pumping Station, Stormwater Lines, Fire Water Pumping Station, Fresh Water Pumping Station, ect.

Test: In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test.

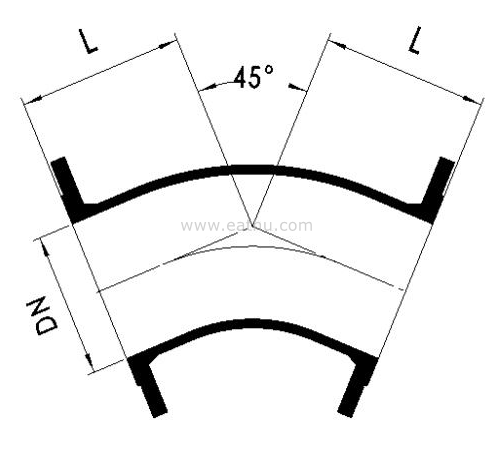

ISO2531 45° Double Flanged Bend

DNLMass (kg)standard
PN10PN16PN25PN40
401404.54.54.54.5ISO2531/EN545
501505.65.65.65.6ISO2531/EN545
601606.16.15.95.9ISO2531/EN545
651656.96.96.76.7ISO2531/EN545
809088


1001309.39.39.39.3ISO2531/EN545
959.59.5


14011.311.312.412.4ISO2531/EN545
12515014.614.615.918.5ISO2531/EN545
1501121717


20016018.518.520.524.5ISO2531/EN545
13026.426


18027.5273141.5ISO2531/EN545
2501453837.4


35055546282ISO2531/EN545
24545.845.5EN545-B

30015556.556


400787788118ISO2531/EN545
27563.763.2EN545-B

350298768389ISO2531/EN545
300768389EN545-B
4001967384


32496107129ISO2531/EN545
32596107129EN545-B
450349116.2132ISO2531/EN545

350120135157EN545-B
500375145175198ISO2531/EN545
600396211.3264.3292.3

600426212266294ISO2531/EN545
700478296326ISO2531/EN545

800529403442211.3ISO2531/EN545
900581519567ISO2531/EN545

1000632668751ISO2531/EN545

1100694857927ISO2531/EN545

120075010501178ISO2531/EN545

140077513881524ISO2531/EN545

150081016771853ISO2531/EN545

160084519152119ISO2531/EN545

180091024652717ISO2531/EN545

200098031493455ISO2531/EN545

220088034463804ISO2531

240094542774719ISO2531

2600100551755695ISO2531
