Steel Pipe Nipple ASTM A733

Pipe Nipple And Coupling

ISO 9001/BSI/SGS Approved: Pipe nipple, socket, coupling, nipple barrel, nipple swage, extension threaded nipple.

Steel Pipe Nipple Extension Nipple Long Threaded Pipes BSP NPT Standard Sch40 Pipes Nipple Barrel Nipple Swage Hose Nipple King Nipple Extension Nipple

Material: ASTM A53/A106/A333/S304/S304L/S316/S316L

Standard Thread: NPT(ASME B1.20.1,B16.3), BSPT(ISO 7/1), R , G thread

Dimensions: ASTM A733, ISO49, DIN2950, EN10242

Chemical Propety: (C %2.4-2.9),(Si %1.4-1.9),(Mn %0.4-0.65),(P% <0.1),(S% <0.2%)

Physical Property: Tensile strength>=350Mpa, Elongation>=10%,Hardness<=150HB

Testing Pressure: 2.5MPa

Working Pressure: 1.6MPa

Schedule: 40/80/160/XXS

SurfaceGalvanized / Black / Sandblast

Inquire Now

Share to:

Introduction

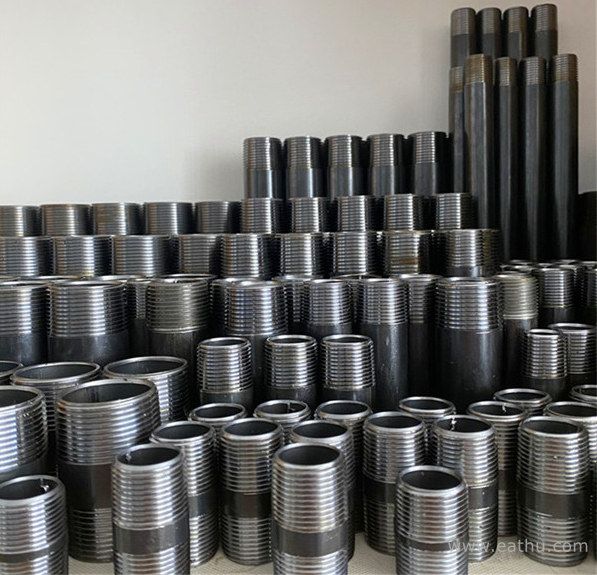

Steel Pipe Nipple ASTM A733

Type of Nipple	1/8	1/4	3/8	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	3-1/2	4	5	6	8
CLOSE	3/4	7/8	1	11/8	13/8	1-1/2	15/8	13/4	2	2-1/2	25/8	23/4	27/8	3	31/8	31/2
Short and long type	1-1/2	1-1/2	1-1/2	1-1/2	1-1/2	…	…	…	…	…	…	…	…	…	…	…
	2	2	2	2	2	2	2	2	…	…	…	…	…	…	…	…
	2-1/2	2-1/2	2-1/2	2-1/2	2-1/2	2-1/2	2-1/2	2-1/2	2-1/2	…	…	…	…	…	…	…
	3	3	3	3	3	3	3	3	3	3	3	…	…	…	…	…
	31/2	31/2	31/2	31/2	31/2	31/2	31/2	31/2	31/2	31/2	31/2	…	…	…	…	…
	4	4	4	4	4	4	4	4	4	4	4	4	4	…	…	…
	4-1/2	4-1/2	4-1/2	4-1/2	4-1/2	4-1/2	4-1/2	4-1/2	4-1/2	4-1/2	4-1/2	4-1/2	4-1/2	4-1/2	4-1/2	…
	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5
	5-1/2	5-1/2	5-1/2	5-1/2	5-1/2	5-1/2	5-1/2	5-1/2	5-1/2	5-1/2	5-1/2	5-1/2	5-1/2	5-1/2	5-1/2	5-1/2
	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6
	7	7	7	7	7	7	7	7	7	7	7	7	7	7	7	7
	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
	9	9	9	9	9	9	9	9	9	9	9	9	9	9	9	9
	10	10	10	10	10	10	10	10	10	10	10	10	10	10	10	10
	11	11	11	11	11	11	11	11	11	11	11	11	11	11	11	11
	12	12	12	12	12	12	12	12	12	12	12	12	12	12	12	12
	13	13	13	13	13	13	13	13	13	13	13	13	13	13	13	13
	14	14	14	14	14	14	14	14	14	14	14	14	14	14	14	14
	15	15	15	15	15	15	15	15	15	15	15	15	15	15	15	15
	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16
	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17
	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18
	19	19	19	19	19	19	19	19	19	19	19	19	19	19	19	19
	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20
	21	21	21	21	21	21	21	21	21	21	21	21	21	21	21	21
	22	22	22	22	22	22	22	22	22	22	22	22	22	22	22	22
	23	23	23	23	23	23	23	23	23	23	23	23	23	23	23	23
	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24

Noted: Other lengths and size available. Grooved end, SQ end and Bevel end available. Contact us for details.

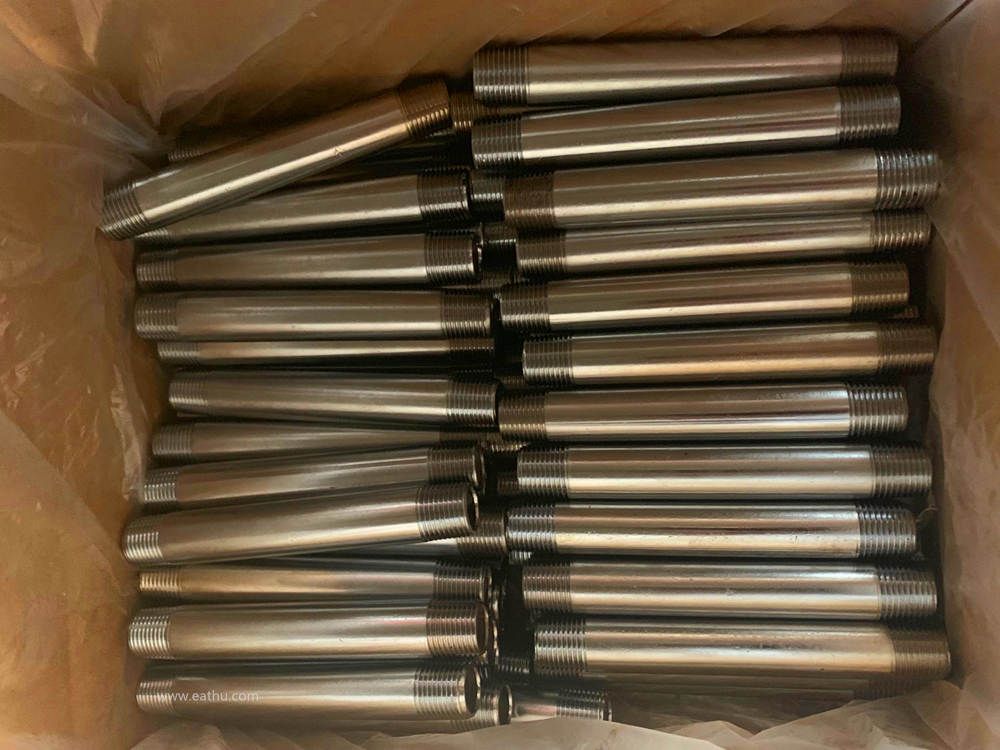

Hard Hromium Plating Barrel Nipple ASTM A733
