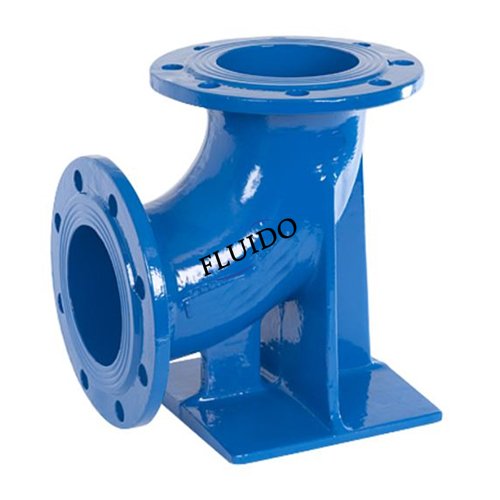

90° Double Flanged Duckfoot Bend

Ductile Iron Pipe Fitting For DI Pipe

Types: Dismantling Joint, Universal Flange Adaptor, Universal Coupling, Ductile Iron Loose Flange Joint, DI Pipe Fitting, Saddle for PVC Pipe, Repair Clamp, Qucick Flange Adaptor, Gibault Joint, Restrained Flange Adaptor, Restrained Coupling, Valve, etc.

Material: MATERIAL: Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083 for ductile iron fitting body and retainer, EPDM/NBR for ring, steel zinced/dacro for stub.


Introduction


Specification: DN50-DN2000(2"-80"), available with PN10, PN16, PN25 and PN40 flanges

Ductile Iron Flange Fittings Standard: ISO2531, ISO4179, ISO8179, BS EN 545, BS EN598, BS4772, ISO7005-2, EN1092-2:1997, DIN2501, GBT13295

Flange: PN10, PN16 or PN25 drilling in accordance with ISO 7005-2/EN 1092-2.

Fluid Temperature: 0°C-50°C, excluding frost.

Pipe ends: Spigot, socket or flanges.

Internal coating: Cement mortar lining comply with ISO4179 or bitumen painting (Ave. min.70 micron) or Fusion Bonded Epoxy Coating

External coating: Sprayed metallic zinc coating (min.150g/m²) according to ISO8179 + bitumen painting (min.70 micron) or epoxy powder coating or epoxy painting or according to customer’s requirements.

Types: Dismantling Joint, Universal Flange Adaptor, Universal Coupling, Ductile Iron Loose Flange Joint, DI Pipe Fitting, Saddle for PVC Pipe, Repair Clamp, Qucick Flange Adaptor, Gibault Joint, Restrained Flange Adaptor, Restrained Coupling, Valve, etc.

Material: MATERIAL: Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083 for ductile iron fitting body and retainer, EPDM/NBR for ring, steel zinced/dacro for stub.

Application: Municipal Use, Waterworks Pipelines, Piping Fittings, Water Engineering, Potable Water Use, Irrigation Use, Water Supply Project Use, Water Treatment Plants Use, Pumping Stations, Water Utility Sectors, Water-Supply Pressure Pipeline, Potable Water Pumping Station, Stormwater Lines, Fire Water Pumping Station, Fresh Water Pumping Station, ect.

Test: In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test.


Dimensions of 90° Double Flanged Duckfoot Bend

DNLHMass (kg)standard
PN10PN16PN25PN40
40140907.87.87.87.8
50150959.19.19.19.1ISO2531/EN545
6016010010.310.310.110.1ISO2531/EN545
6516510011.511.511.311.3ISO2531/EN545
8016511014.114.114.114.2ISO2531/EN545
10018012517.817.818.818.8ISO2531/EN545
100x8018012517171818
12520014023.523.524.527.5ISO2531/EN545
15022016030.530.532.537ISO2531/EN545
150*8022016027.827.828.830.9
20026019046.54650.561.5ISO2531/EN545
25035022576.87683103ISO2531/EN545
300400255109108119149ISO2531/EN545
350450290141147164ISO2531/EN545
400500320185196219ISO2531/EN545
450550355230246268ISO2531/EN545
500600385292322346ISO2531/EN545
600700450446493521ISO2531/EN545
700800515562586


800900580768798


90010006459121050


1000110071013111380


1100120077515861656


1200130084019532063


1400127097028582926
