Knowing the pressure ratings of black iron pipe fittings is vital. It keeps piping systems safe and dependable. These ratings show the highest pressure a fitting can handle without breaking. By understanding pressure ratings, you can avoid system breakdowns.
Black iron pipe fittings are crafted from malleable iron. They often have a protective coating to fight rust. These fittings can handle tough conditions, like high pressure or hot temperatures. This makes them perfect for moving gas, steam, water, or some chemicals. Many industries, like building, plumbing, or factories, use them. They trust these fittings for strong, reliable performance.
Bushings link pipes of different widths. They keep the system strong. Choosing a bushing with the right pressure rating is key. It must handle the system’s highest pressure without failing.
Caps seal the ends of pipes. In systems with strong pressure, caps need the same pressure rating as other parts. This prevents leaks or bursts.
Couplings connect two pipe pieces for smooth flow. Their pressure rating is crucial in high-pressure setups.
Cross fittings join four pipes at one spot. They spread pressure in many directions.This stops system failures.

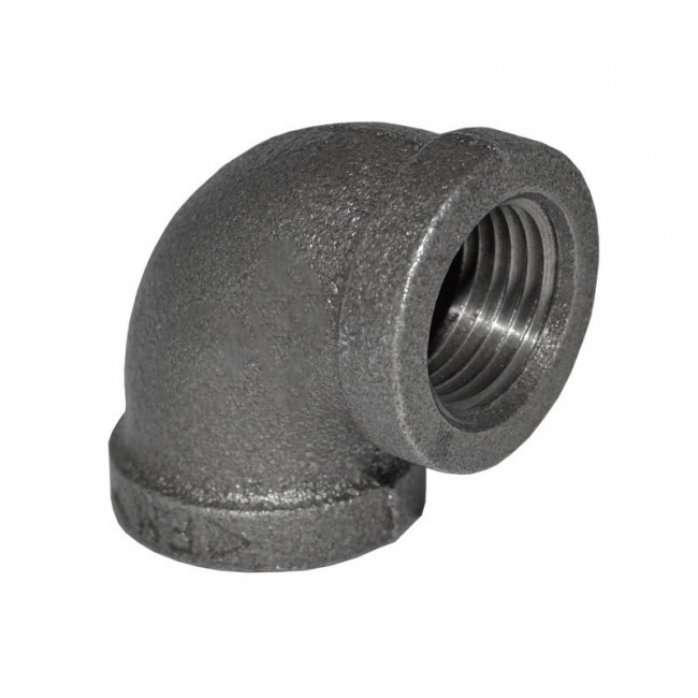

Elbows change the direction of pipes, like at 45 or 90 degrees. Elbows face extra stress compared to straight pipes. So, their pressure ratings need careful attention.
Nipples are short pipe pieces that connect two fittings. In high-pressure systems, nipples must have proper ratings. This avoids leaks or breaks at connection points.
Plugs close off pipe ends, either for a short time or forever. In systems with pressure, plugs must handle the maximum force to stay secure.
Tee fittings link three pipe sections. They let fluid flow in different directions. Tees often sit at important junctions.
The material of a fitting affects how much pressure it can take. For example, malleable iron in black iron pipe fittings is stronger than materials like PVC. This gives them better pressure resistance.
When temperatures rise, the material can weaken. This lowers the fitting’s pressure rating.
Threaded connections may not hold as much pressure as welded or flanged ones. Threads can create weak spots that leak under heavy pressure.
Most black iron pipe fittings have a standard rating of 150 PSI at normal temperatures. This fits well for tasks like natural gas lines, water systems, or low-pressure steam setups. Schedule 40 pipes are popular for these jobs. They have a medium wall thickness. This lets them handle pressures from 150 to 200 PSI, depending on pipe size and heat. These fittings work great for systems that don’t need extreme pressure strength. Yet, they still deliver solid performance.
For jobs needing more pressure strength, Schedule 80 black iron pipes are a great pick. These have thicker walls. They can handle up to 500 PSI or more. You’ll see them in industrial steam plants or high-pressure water systems. Durability is key in these settings. Also, Schedule 160 pipes have even thicker walls. They’re built for extreme high-pressure tasks, like hydraulic systems or factory processes. These can take pressures over 1000 PSI. They’re essential for critical jobs where safety and reliability matter most.
Pressure ratings for black iron pipe fittings change with temperature. For example, a fitting rated at 150 PSI at 70°F might only handle 100 PSI at 300°F. This happens because the material gets weaker as it heats up.
FLUIDO provides a wide range of high-quality pipe fittings. They meet many industrial needs. Since 1994, FLUIDO has specialized in steel valves, fittings, and flanges. Their products include forged pipe fittings, butt welding pipe fittings, ductile iron pipe fittings, and stainless steel threaded fittings.
By picking FLUIDO’s black iron pipe fittings, you get reliable solutions. These prioritize safety and efficiency for all kinds of tasks.
