Valve orifice size is the width of the inner hole in a valve. This is where liquid or gas passes through when the valve is open. The small channel, often called the orifice in pipe, links the entry to the exit. When the valve opens, fluid moves through this hole. When it closes, a part like a disc or ball seals the orifice. This stops the flow. Knowing what is orifice size is important. It controls how much fluid moves. It also affects how the system works. A wrong size can cause issues like low flow or high pressure.
Orifice size has a big impact on how well a valve performs. It changes flow speed, pressure levels, and system efficiency. A tiny orifice limits fluid. This can raise pressure or slow the system. A wide orifice lets more fluid pass. This lowers pressure loss but may reduce control.
Orifice size directly changes how much fluid flows through a valve. A bigger orifice allows more fluid. This increases the flow speed. A smaller orifice slows the flow. This is helpful for exact control in sensitive systems. The difference between small orifice and large orifice is clear. Small ones limit flow. Large ones let more through. Choosing the right orifice sizing ensures the system gets enough fluid.
A small orifice creates more resistance. This leads to a larger pressure drop. It can stress pumps. A bigger orifice has less resistance. So, the pressure drop is smaller. Knowing how to know which orifice to use helps avoid big pressure drops.
Small orifices make fluid move faster. This can cause turbulence or bubbles. These may harm valves or pipes over time. Larger orifices keep fluid speed lower. This reduces turbulence and wear. The difference between small orifice and large orifice affects system stability.

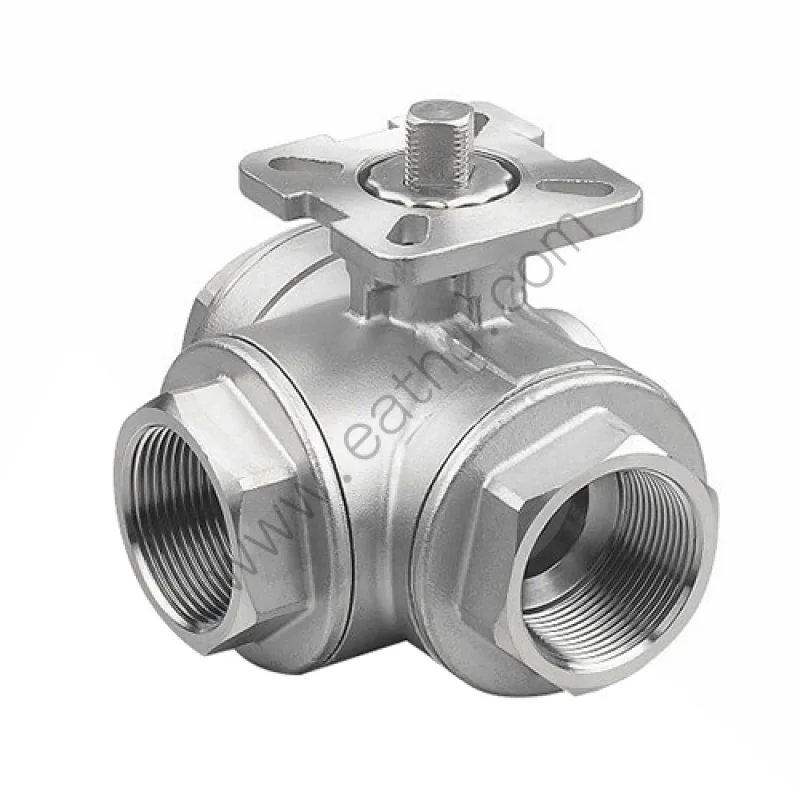

Ball valves use a round ball with a hole as the orifice. The size of this hole is the valve orifice size. Full-port ball valves have an orifice as wide as the pipe. This allows maximum flow with little pressure loss. Reduced-port ball valves have a smaller orifice. This limits flow and increases pressure drop.

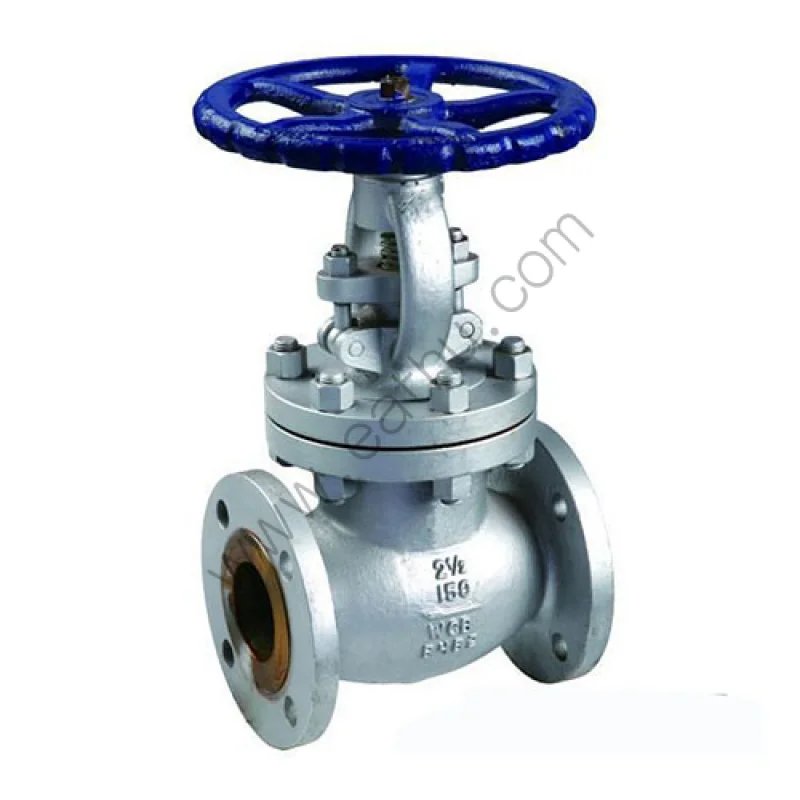

Globe valves adjust flow by moving a plug in and out of an orifice. This offers fine control. Needle valves have very small orifices. They’re great for exact flow in low-volume systems, like lab tools. Pressure relief valves use specific orifice sizes to release extra pressure safely. Each type depends on orifice sizing to match its task. For example, a too-small orifice in a relief valve could cause dangerous pressure buildup. This shows why valve orifice size matters across designs.
Picking the right valve orifice size starts with knowing the system’s flow and pressure needs. Engineers use a flow number, called Cv, to measure how much fluid a valve can handle. A low Cv means a small orifice. This may restrict flow too much. A high Cv means a larger orifice. Checking orifice dimensions against system demands ensures the valve meets flow goals. It avoids excess pressure loss.
Pipe size alone doesn’t tell the whole story. A 1-inch valve might have a much smaller orifice than the pipe. This is common in reduced-port or solenoid valves. Always check the valve’s datasheet for orifice sizing details. Look for Cv or orifice diameter. This prevents surprises, like low flow or high pressure. For example, ignoring orifice specs can lead to issues. People often ask, will a clogged orifice tube cause high pressure? Careful checks ensure the orifice in pipe fits the system’s needs.
Different fluids, like water or gas, act differently through orifices. Liquids can cause bubbles with small orifices. Gases may choke in tiny ones. Fluids with particles can clog small orifices. System changes, like sudden flow shifts, also matter. A slightly smaller orifice can stabilize flow. But too small restricts it.
In factories, valve orifice size controls fluid flow for machines and processes. Orifice plates in flow meters must be precise for accurate readings. Wrong orifice sizing can waste energy. It can also harm equipment.
In homes or buildings, orifice size affects water or air flow. Small orifices in shut-off valves can lower water pressure. Full-port valves keep flow strong.
Relief valves depend on exact orifice sizes to release extra pressure safely. A too-small orifice might not vent pressure fast enough. This risks system failure. A too-large orifice can cause unstable operation. It ensures reliable protection in high-pressure setups like boilers or chemical plants.
A too-small orifice limits fluid. This causes high pressure drops and low flow. Pumps work harder. High fluid speed through small orifices can create noise or bubbles. It can also damage pipes. In safety valves, undersized orifices are risky. They may not release pressure quickly. Proper orifice sizing avoids these problems. It ensures smooth and safe performance.
A too-large orifice reduces pressure drop.Valves may cycle too often. They might fail to seal properly. This leads to leaks or chatter.
FLUIDO, a trusted maker for over 20 years, offers a range of valves. These include butterfly, ball, gate, globe, and check valves. Serving 35+ countries, FLUIDO works with factories in Shandong and Hebei. Their expertise ensures valves with precise orifice sizing. This leads to top performance in industrial uses.
Valve orifice size may seem tiny. But it shapes flow, pressure, and system health. Choosing the right size prevents energy waste. It avoids equipment wear and safety risks. Whether managing industrial processes or plumbing, proper orifice sizing ensures efficiency. It also ensures reliability. Don’t let a small detail ruin your system. Check orifice specs. Match them to your needs. Contact FLUIDO for expert advice. Or explore their solutions to power your operations!
