In valve tech, sealing is super important. It keeps things safe and working right. Seals stop fluid or gas from leaking at connection points or moving parts. Valve seals split into two types: static seals and dynamic seals. This depends on whether the sealed parts move against each other. Each type has its own shapes, ways of working, and uses.
Static sealing happens between two fixed parts in a valve. There’s no movement, or it’s barely there, between the sealing surfaces when the valve runs. The main job of a static seal is to block leaks at steady joints, like between the valve body and bonnet or flange connections.
Static seals use the tight squeeze of bolts and the squishy nature of sealing materials to press tight against surfaces, closing off any leak paths.

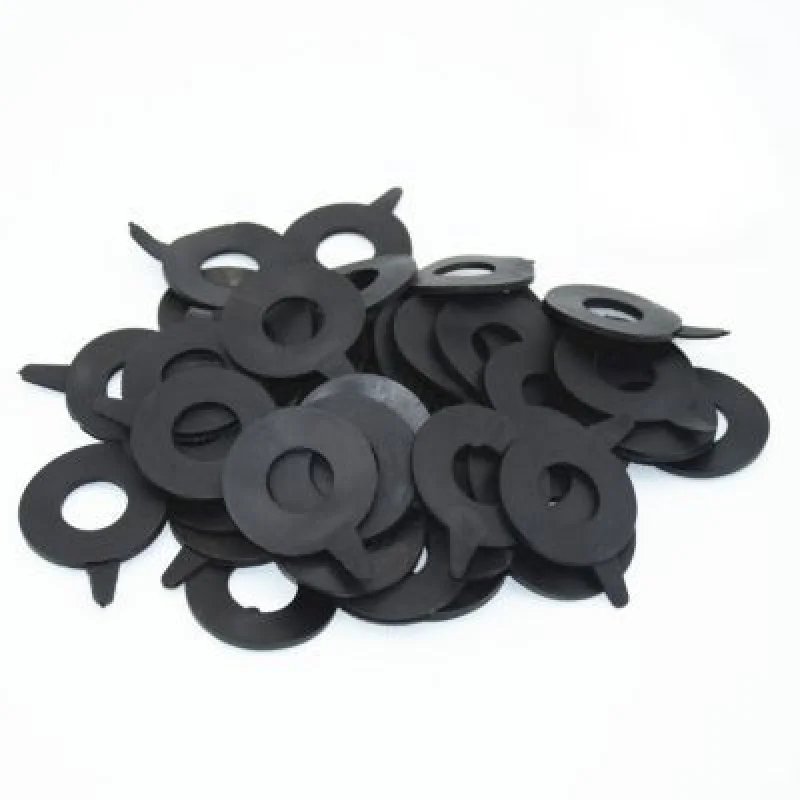

Gasket seals use a soft or bendy gasket between two fixed surfaces. Bolts or connectors squish the gasket to fill tiny gaps.
· Non-metallic gaskets, like rubber (NBR, FKM), asbestos, or graphite, work for low to medium pressure.
· Metallic gaskets, like flat metal or ring-type (octagonal or oval), handle high pressure or heat but need strong tightening.
· Composite gaskets, like spiral wound or metal jacketed, mix strength and flexibility. They’re popular for medium-to-high pressure pipelines.

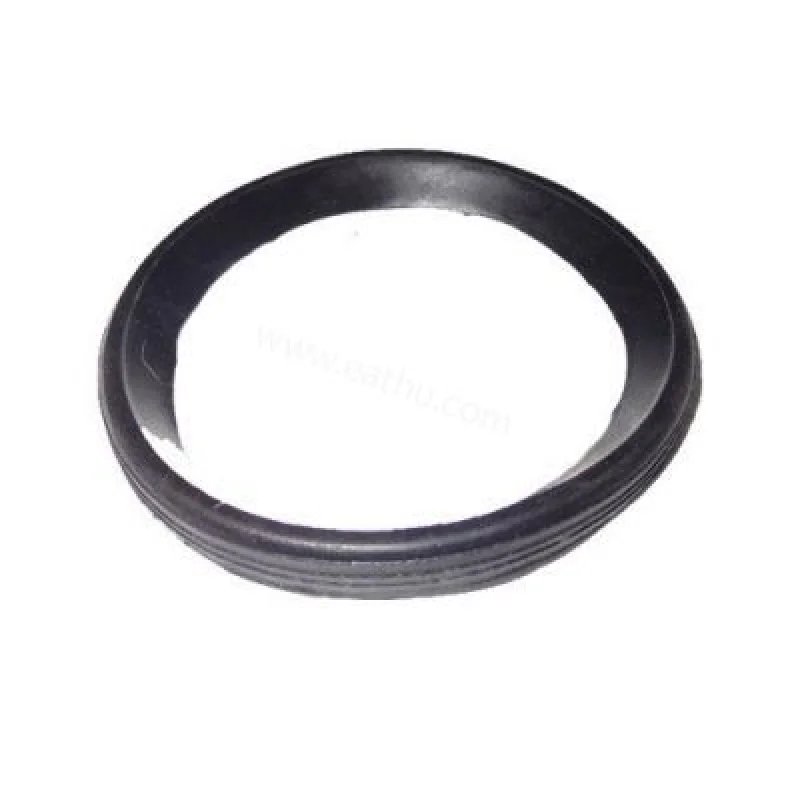

O-ring seals use round rubber rings. They squish in a groove to seal tightly. They’re simple, easy to put in, and cheap. They work in a wide range of temperatures, depending on the material, like NBR for oil or FKM for chemicals. These are common in end covers or body-bonnet joints.
Sealant seals use liquid sealants between surfaces. Once they dry, they form a stretchy layer to stop leaks. This works well for uneven or rough surfaces where gaskets might fail. It’s often used in low-pressure systems, like valve casting seams.
Metal seals use super precise metal-to-metal contact with no extra sealing stuff. They’re awesome for tough conditions, like high pressure, heat, or harsh media. But they need exact machining and strong tightening to work well.
Dynamic sealing happens between moving parts in a valve, like a rising stem or spinning shaft. There’s up-and-down, side-to-side, or twisting motion during use. The trick is keeping the seal tight while letting parts move without too much rubbing.
Packing seals stuff soft materials around a valve stem in a stuffing box. A gland follower squishes the material to hug the stem.
· Soft packing, like asbestos rope or PTFE yarns, works for low pressure.
· Metallic packing, like corrugated metal strips, suits high heat or pressure.
· Composite packing mixes metals with stuff like graphite for extra toughness.
Bellows seals use metal bellows that bend with stem movement. They keep an enclosed space to stop leaks. They avoid rubbing issues seen in packing seals. Bellows seals are great for hazardous media needing zero leaks but have limited stretch and cost more to make.
Harsh, corrosive media need tough materials like FKM rubber or Hastelloy alloys. Toxic or flammable stuff needs zero-leak options, like bellows or mechanical seals. For gritty slurries, abrasion-resistant labyrinth seals work best. Gaseous media need dense materials, like elastomeric O-rings, to stop leaks.
Pressure:
Low-pressure (≤1.6 MPa): Cheap rubber gaskets are suitable.
Mid-to-high pressure (1.6–10 MPa): Metallic composite seals are required.
Ultra-high pressure (>10 MPa): Hard metal-on-metal seals with sealants are necessary.
Temperature:
High temperature (>120°C): Use graphite-based seals.
Low temperature (< -50°C): Use flexible rubber seals.
For simple stuff like water lines, basic rubber gaskets work fine. Tough conditions, like superhot steam pipelines, need complex metallic seals, even if they cost more. Always weigh cost against how long the seal will last.
Static and dynamic seals are key to keeping valves working right in all sorts of conditions. Static seals work where parts don’t move, using squished gaskets or O-rings. Dynamic seals handle moving parts with fancy setups like packings or mechanical rings. Choosing depends on media type, pressure, temperature, leak limits, system complexity, and budget.
