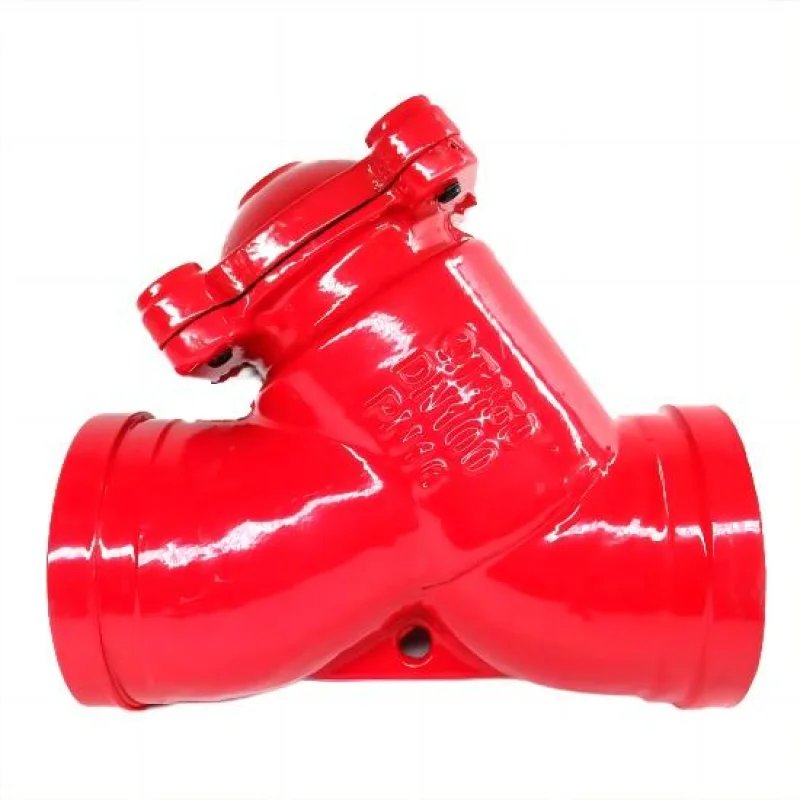

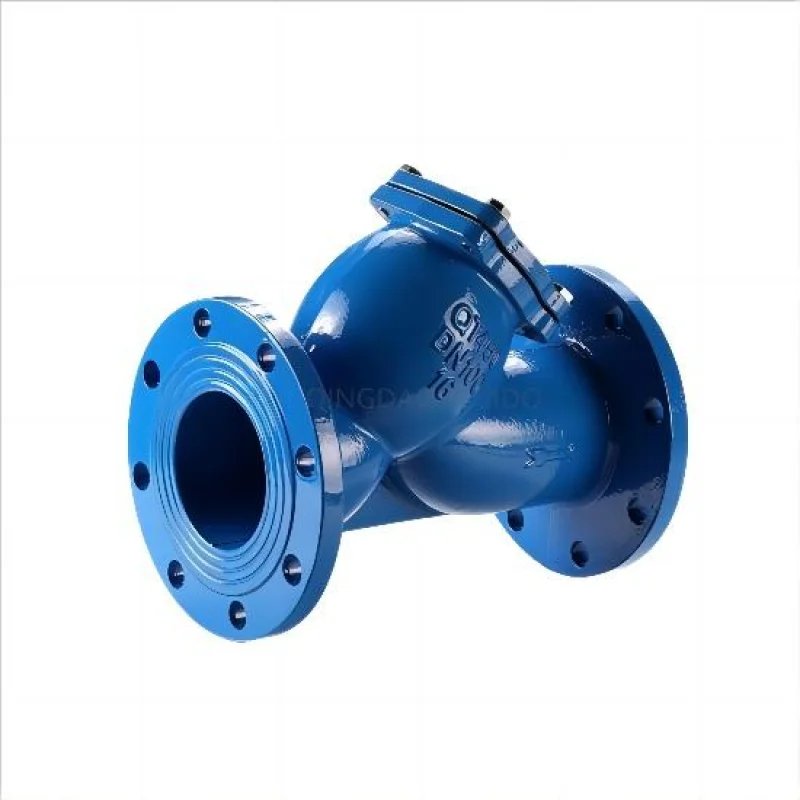

Y strainers are essential components in pipeline systems, designed to remove solid debris from fluid media and protect downstream equipment such as pumps, valves, and heat exchangers. Their effectiveness and longevity depend heavily on correct installation. The correctness of the installation direction directly affects the filtration efficiency, service life, and operational stability of the system. This article provides a comprehensive guide on how to correctly install a Y-strainer based on its core principles, pipeline layout, material compatibility, and system parameters.
All Y-strainers come with a clearly marked flow direction—typically an arrow etched or cast onto the valve body—that must match the actual flow direction in the pipeline. Installing against this direction can severely compromise functionality. If installed in reverse, the medium will strike the back of the mesh screen directly, preventing effective debris capture and potentially deforming or dislodging the filter screen due to pressure differentials.
The strainer chamber (where the filter mesh is housed) must be installed at the bottom side of the pipe—meaning inlet from below and outlet above—to allow gravity-assisted sedimentation of debris. This configuration ensures that impurities settle naturally at the chamber’s lowest point for easy discharge through the drain port located at its base. If installed incorrectly with the chamber above or sideways without proper inclination, sedimentation becomes inefficient and cleaning becomes more difficult.
Install the Y-strainer with the strainer chamber pointing vertically downward.
Avoid angles less than 45° from vertical to prevent debris buildup.
For vertical pipelines, place the strainer chamber sideways (horizontal), with the drain port facing down.
The actual flow must match arrow markings.
The angle of tilt for the strainer chamber should exceed that of pipe slope to ensure effective sedimentation at its lowest point.
Metallic strainers (e.g., carbon steel or stainless steel) are heavy; thus when installed horizontally with downward-facing chambers, ensure adequate support brackets are used to prevent pipe deformation. For vertical installations with side-mounted chambers, auxiliary supports may be required to prevent torsional stress.
Plastic strainers (e.g., PVC) have lower strength. Incorrect orientation may cause cracking under pressure differences or thermal expansion when handling hot fluids (>60°C).
In high-pressure systems (≥1.6MPa), directional accuracy becomes even more critical. Reverse installation may subject filter screens to forces exceeding their design limits—risking rupture or leakage—and increase local pressure drops dramatically. Always use calibrated tools like flow meters during setup in such environments.
For dirty fluids like sludge or wastewater:
ensure large-diameter drain ports (≥1/3 inlet diameter) and strict adherence to "chamber-downward" orientation.
For viscous media like oils:
a steeper downward tilt (≥60° from horizontal) is needed so impurities don’t cling inside due to adhesive forces.
High-temperature media require testing post-installation because reverse flows can cause thermal expansion mismatches between body and mesh leading to seal failure.
Before mounting:
· Use water injection tests across both ends to observe natural flow.
· Check system P&ID diagrams for process-based confirmation.
· Ensure arrow markings on valve body are visible; if worn off or unclear, consult manufacturer instead of guessing.
Use tools:
· Levels for horizontal alignment (deviation ≤1°).
· Plumb lines for vertical pipes ensuring upward flow.
· Inclinometers for tilted pipes confirming that strainer tilt > pipe gradient.
