Pipe repair clamps are components used to stop a leak or a pipe burst and provide a fast and effective solution to these problems. They usually consist of a metal sleeve and a flexible rubber padding on the inside that goes on the surface of the leaking pipe and serves to actually seal the leak. These clamps are essential tools in both emergency repairs and routine maintenance of pipelines, offering quick containment of leaks without the need for full pipe replacement.
A pipe repair clamp is one of the most convenient tool for repairing pipes. It can be applied while the pipeline is operational or shut down, making it suitable for various scenarios in residential, commercial, and industrial environments.
A repair clamp is essentially a pre-rolled piece of metal that is lined with rubber inside. To repair a pipe, the repair clamp is simply placed over the area that is leaking and then tightened with the welded bolts and nuts to keep the clamp in place.
Once the clamp is tightened, the force applied is converted into radial pressure on the rubber lining, which keeps the clamp in position and provides a good seal over the leak area for several years. This mechanism ensures that water or gas does not escape through cracks or holes in the pipeline.

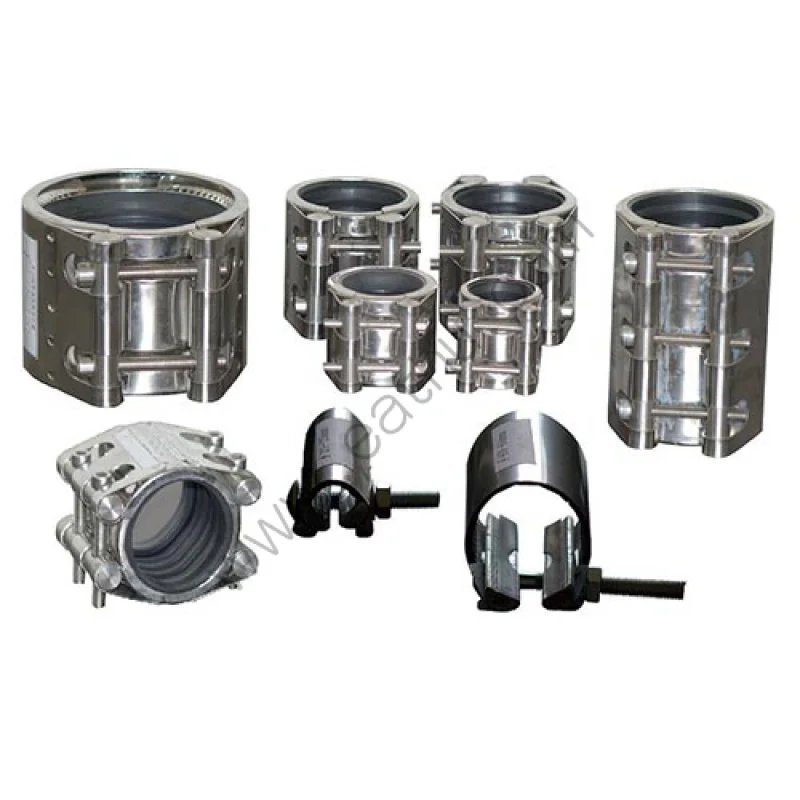

Repair clamps come in different designs to address various types of pipe damage. The most common types include:
· Full circle repair clamp
· Redi-clamp
· Bell-joint clamp
· Pin hole leak repair clamp
Each type has specific features tailored to different materials, diameters, and damage levels.

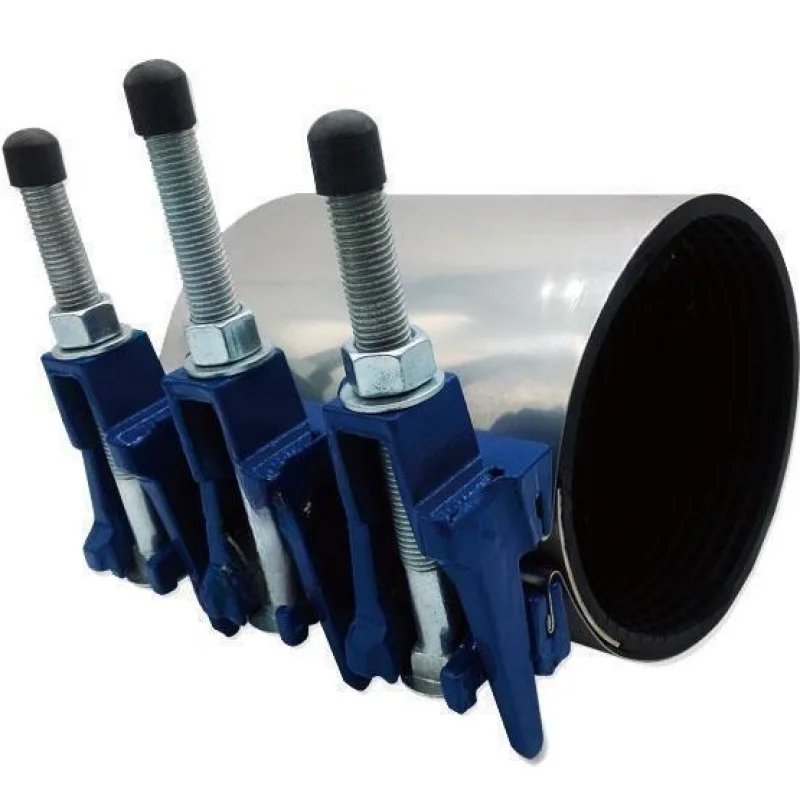

A full circle repair clamp is made from one or more stainless-steel bands that encircle the pipe to be repaired. It is safely attached with fabricated or cast lugs through which nuts or bolts are used to close the clamp.
These clamps have a girded, full encirclement gasket with tapered ends which helps to seal the pipe effectively. They are compatible with various materials such as steel, cast iron, asbestos cement, aluminum, glass, and plastic.
Use for the repair of pinhole leaks, punctures and splits in rigid copper, stainless steel, or plastic pipes. These clamps are characterised by a full circumferential gasket fitted with two recessed and bonded armour plates that enable a complete seal, all around the pipe.
Redi-clamps are used to repair pipes without dismantling connections, and to join pipes without threaded connections.
Bell-joint clamps provide a fast and economical way of sealing leaks in all types of ductile and cast-iron pipes. These clamps use a bell and spigot joints feature to fit both caulked joints and rubber gaskets of cast-iron and ductile pipes in varying sizes.
The installation process compresses a rubber gasket between rings using bolts, ensuring a permanent seal.
The pin-hole leak clamp is designed to repair small to minute, localised leak points in a pipe. The clamp comprises two halves that are fitted around the pipe and compressed with bolts.
This kind of clamp uses a locator pin which guides a pointed cone seal into the hole, which is then tightened with a force screw and applied pressure.
Repair clamps offer several notable benefits:
Low-cost solution that is inexpensive to purchase but provides long-lasting results.
Very easy to install They provide dependable sealing performance over time.
The type of clamp used, and the extent of the pipe damage, will determine the longevity of the pipe repair clamp.
Some applications may only require temporary sealing until permanent repairs can be made.
Once the pipe is in a fixed position, you can expect it to provide the adequate seal for many years to come.
Q1: Can I install a repair clamp myself?
Yes. Small repair clamps are very easy to install in household conditions, requiring only basic tools like wrenches.
Q2: Can they fix large cracks?
Full circle clamps can handle larger damage areas. For major structural issues though—especially those involving corrosion—you may need additional reinforcement or replacement.
Q3: Do they work on all materials?
Most do. They are used for many pipe types including steel, cast iron glass and plastic. Use caution on softer materials like PVC.
Q4: Are these permanent solutions?
They can be either temporary or permanent depending on application. Pipe repair clamps are chosen after structural risk assessments which determine their role in your system’s lifecycle.
For those looking for quality products backed by decades of expertise—FLUIDO offers an extensive range of durable repair clamps, valves, flanges and custom-made fittings.
As a leading manufacturer and exporter specializing in steel valves, fittings, and flanges, FLUIDO has been serving 35+ countries/regions for over 20 years.
In addition to manufacturing its own repair clamp products are carefully tested before shipment, ensuring reliability under pressure. Whether you need standard models or custom configurations—FLUIDO delivers consistent quality at competitive prices.
Contact FLUIDO via email at info@fluidovalve.com today for expert guidance on selecting your ideal solution.
