Ball vales are popular for their efficiency and toughness among many valve types. They come in two main kinds: standard port valves and full port valves. Full port valves have a wide-open flow path. Their bore matches the pipe’s diameter, allowing smooth flow. This feature is special to full port valves. This guide explains full port valves, their design, how they work, and why they’re better than standard port valves.

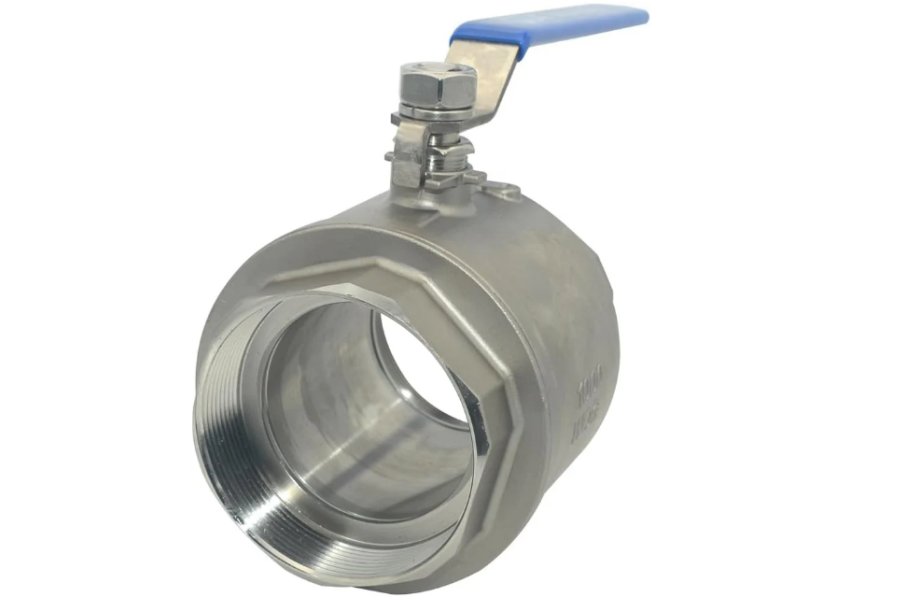

A full port ball valve has a bore that matches the pipe’s inner diameter. This ensures fluids or gases flow freely. It also boosts flow efficiency. These valves are great for systems where steady pressure and avoiding cavitation are important.

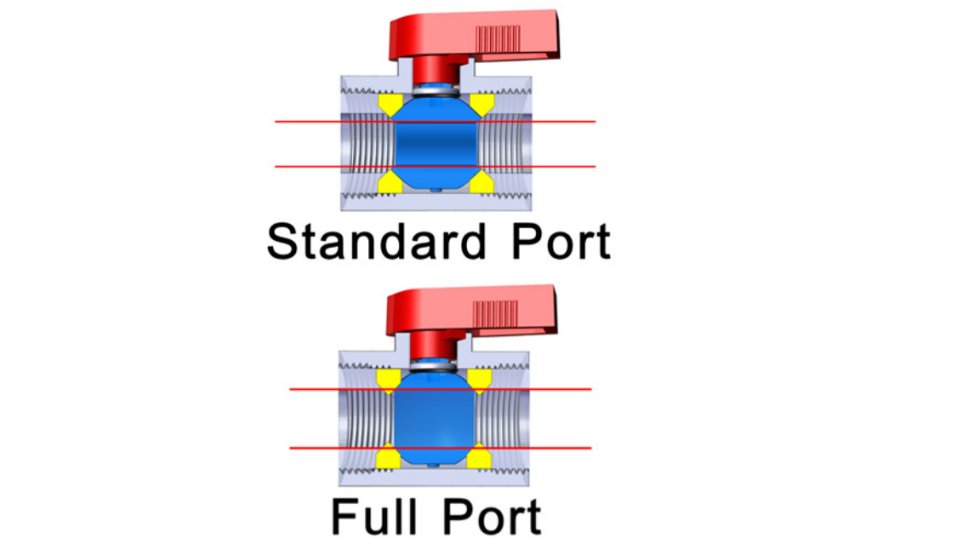

The big difference between full port and standard port valves is the bore size. Full port valves have a bore the same size as the pipe. Standard port valves have a bore one size smaller than the pipe.
Feature | Full Port Valves | Standard Port Valves |
Bore Size | Same as pipeline | One size smaller |
Flow Rate | High flow due to clear path | Lower flow due to restriction |
Cost | Higher due to size and features | Cheaper |
Space Requirement | Bigger body needs more room | Smaller, fits tight spaces |
Full port valves are key in fluid control systems. They greatly lower the chance of cavitation and pressure drops. Their ability to keep a steady flow rate makes them vital for systems needing precision and reliability.
Plus, full port valves handle both clean and gritty flows. This makes them useful in industries like oil and gas, chemical processing, and water treatment. Their strong design lets them manage liquids and solids well without losing performance.
The bore size directly affects how well a valve works for flow rate and system stability. In full port valves, the bore matches the pipe’s inner diameter. This prevents bottlenecks in the system, ensuring top performance.
Having no big pressure difference across the valve shows why a matching bore size matters. This design boosts efficiency and reduces wear on pumps and other parts by keeping conditions steady.
Full port ball valves are used widely because of their great performance:
· Fuel Line Shutoffs: They’re great for gasoline and diesel equipment because they reduce turbulence.
· Water Service Lines: They resist rust and seal well in big equipment.
· Plant Design Plumbing: Used where complete shutoff is needed.
· Transfer Operations: Common in oil & gas, automotive, and manufacturing for smooth material transfer.
These uses show how flexible full port ball valves are for different materials and conditions.
Picking the right valve means looking at a few things:
· System Needs: Know what your system needs. If you need fast shutoff or low cavitation, choose full port.
· Flow Control Needs: If low flow resistance is key, full port valves are better because they cut pressure drops.
· Space Limits: In small spaces, standard port valves may work better due to their smaller size.
· Budget: Full port valves cost more but perform better. Budget limits may affect your choice.
· Media Type: For mixed solid-liquid flows or rough materials, full port valves reduce blockages and maintenance.
FLUIDO is a top maker and exporter of steel valves, fittings, and flanges. They’ve served over 35 countries for more than 20 years. With experience in casting and forging, plus ISO9001-certified factories, FLUIDO offers high quality products that meet global standards.
They’ve passed European CE certification and SGS’s ISO9001 quality check. Their products include cast iron gate valves, globe valves, butterfly valves, and stainless steel ball valves. All are made with strict quality control. FLUIDO focuses on high-quality products at good prices with great service.
Whether you need ready-made or custom parts, FLUIDO's one-stop service ensure quality and ease.
