In piping systems, the pick of connection parts can greatly affect both working results and setup cost. Two usual—but often mixed-up—choices are the stub end flange (commonly used in lap-joint flange setups) and the flange adapter (also named flange coupling). Though they might look alike at first look, their build ideas, fitting ways, and best uses vary a lot.

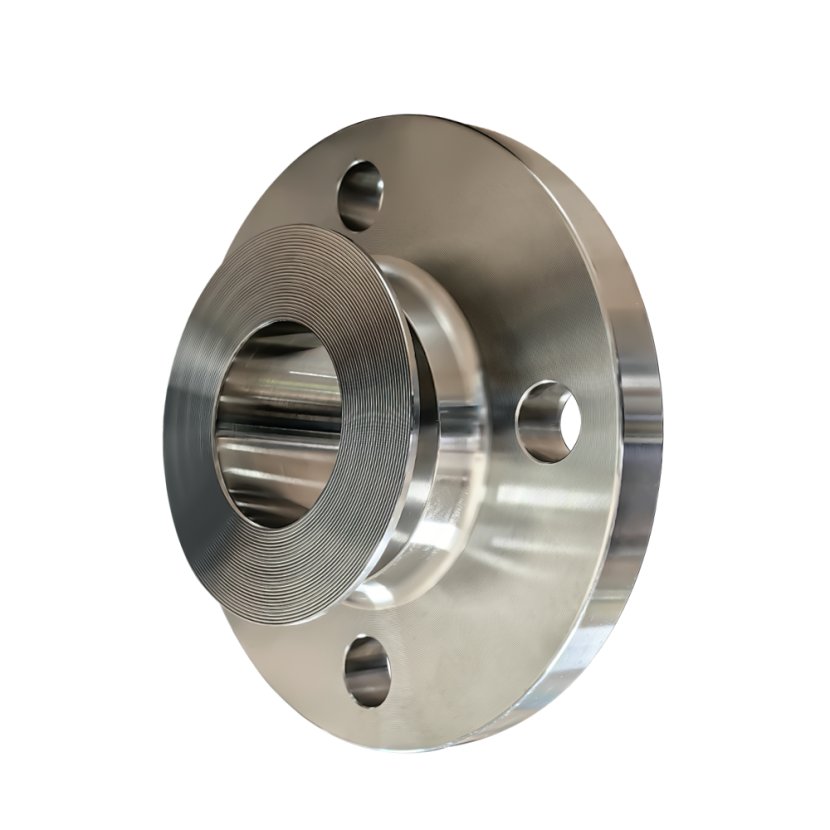

A stub end flange is really not one single item but a two-piece setup — made of a stub end and a backing flange. The stub end is welded to the pipe, sticking out a short bit outward. The backing flange, a round plate with bolt holes, slides over the stub end, letting it link to another flanged pipe or fitting.

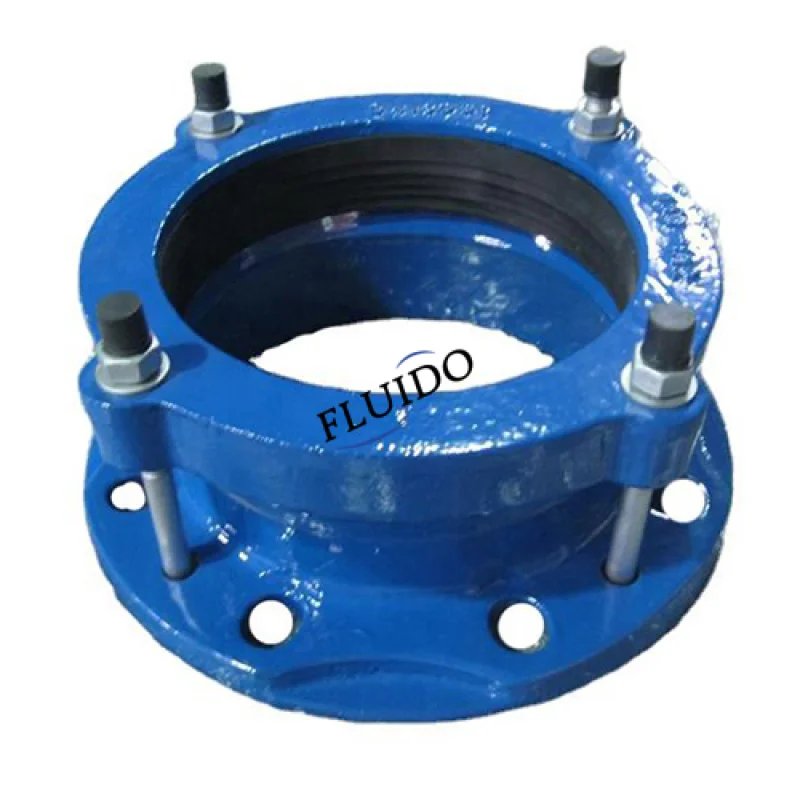

In contrast, a flange adapter is a single-piece part. On one side, it has a normal flange face (with bolt holes), while the other side is formed to fit another link type — for example, threaded, beveled (ready for welding), or socket-style. Some flange adapters even join two flanged ends (flange-to-flange adapters) or use grooved ends (“grooved flange adapters”). Because of this one-piece build, flange adapters are often more tight, cutting down needed room in a piping system.
The main goal for a stub end flange is to join one flanged pipe to another — usually when both pipes have close material and size. Its key trait is the turnable backing flange, which lets easy lining up of bolt holes when linking pipes, a big plus in large factory setups or in long pipeline paths where exact lining is hard.
Flange adapters, however, do well in cases where the two pipes or fittings to be linked differ a lot — whether in material, end link type, pipe width, or fitting rules.
Because of this bendiness, flange adapters act as a handy “adapter” for unmatched piping parts.
Because a stub end flange’s stub end is welded right onto the pipe, the joint tends to be very tough and leak-proof. As a result, stub end flanges — often made from steel, stainless steel or other strong alloys — are good for high-pressure, high-heat uses, giving solid trust in tough settings.
Flange adapters, by contrast, tend to be more usual in lower-pressure or lower-heat systems. Their links (threaded, grooved, push-fit or socket) tend to show more possible leak spots under pressure.
Stub end flanges are especially common in fixed piping systems of factory sites where lasting strength and long-term trust matter. Typical cases include: chemical plants, power generation facilities, and oil & gas pipelines.
By contrast, flange adapters tend to find favor in short-term, block, or changing systems — where bendiness and ease of put-together/take-apart matter more than max pressure strength. Common cases include: construction projects, water treatment plants, and HVAC or building retrofits.
Mixing up stub end flanges with flange adapters — or using one instead of the other — can lead to bad working or even break. For example:
· Using a flange adapter in a high-pressure steam line could cause leaks or break under stress
· Using a stub end in a case needing link between a threaded PVC pipe and a flanged steel pipe may be hard or impossible
· Ignoring lining issues: bolting two flanges without a turnable backing flange may result in wrong line, stress on bolts, or uneven sealing
Therefore, knowing the build differences, setup ways, and pressure/material match is key when picking flanges for piping systems.
A stub end flange is used to make a lap-joint flange: the stub end is welded to the pipe, and a separate backing flange is bolted onto it — letting a strong, turnable flange link to a matching flanged pipe or fitting.
In general, flange adapters are less fit for very high-pressure or high-heat systems, especially if they rely on threaded or grooved links or use non-metal materials. For such hard settings, a welded stub end flange setup is usually more trusty.
Yes — the stub end must be welded to the pipe, whereas flange adapters often use bolt, clamp, or socket-style links and typically do not need welding.
