Swing Check Valve vs. Spring Check Valve

Valves serve as essential components in piping and process systems. They manage the flow of liquids and gases effectively. Check valves, in particular, prevent reverse flow to maintain system integrity. Among these, swing check valves and spring check valves stand out for their reliability.

Introduction to Check Valves

Check valves allow fluid or gas to move in one direction only. They automatically close when flow reverses. This action protects pumps, compressors, and other equipment from damage. Common in water treatment, oil and gas, and HVAC systems, check valves come in various designs. Swing and spring types address different operational challenges. Both ensure compliance with standards like API 6D and ASME B16.34.

Swing Check Valves

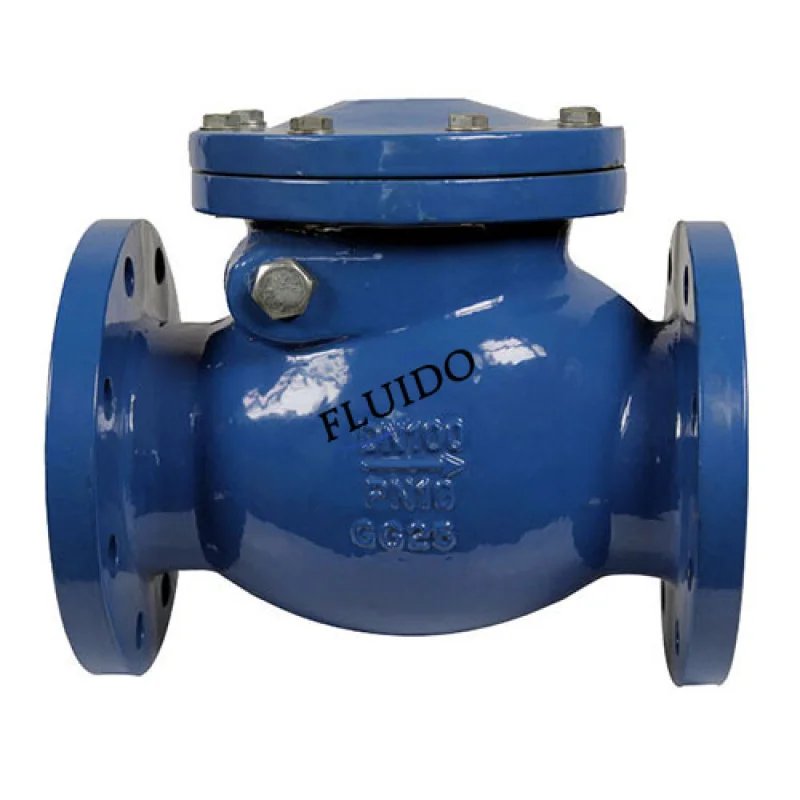

img.Swing Check Valve.png

Swing check valves feature a hinged disc or flapper. This component swings open with forward flow. As pressure drops, the disc returns to its seat, sealing the valve. The design supports high flow rates due to minimal obstruction.

How Swing Check Valves Work

Forward pressure pushes the disc away from the seat. This creates a clear path for media passage. Gravity and backpressure then swing the disc closed. The process relies on system dynamics rather than external forces.

Pros and Cons of Swing Check Valves

Pros

·  Cost-effective: Ideal for budget-conscious projects without sacrificing performance.

·  High-volume systems: Large flow capacity makes them efficient for high-volume systems

Cons

·  Limited installation: Downward flows risk improper seating.

·  Water hammer risk: Potentially causing noise and pipe stress

Applications of Swing Check Valves

These valves excel in sewage systems for flood prevention. Firefighting equipment benefits from their quick response. Toilet flush mechanisms and irrigation lines also use them frequently. Industries like municipal water supply favor swing checks for straightforward horizontal piping.

Spring Check Valves

img.Spring Check Valves.png

Spring check valves employ a spring-loaded disc or plunger. The spring maintains constant closing force. Forward flow compresses the spring to open the valve. This mechanism ensures reliable operation regardless of orientation.

How Spring Check Valves Work

Media pressure overcomes the spring tension, lifting the disc. Flow proceeds smoothly through the bore. Upon reversal, the spring snaps the disc back, providing instant sealing. This design minimizes reliance on gravity.

Pros and Cons of Spring Check Valves

Pros

·  Versatility: They function in any position, including vertical downward flows.

·  Noise reduction

Cons

·  Higher cost

·  Lower flow capacity: Suiting moderate-volume needs.

Key Differences Between Swing and Spring Check Valves

Installation and Maintenance Considerations

Proper installation enhances longevity. For swing valves, ensure horizontal piping to avoid disc hang-up. Align flanges carefully to prevent leaks. Spring valves require spring preload checks during setup. Torque bolts evenly for uniform seating.

FAQ

What is the main function of a check valve?

Check valves permit unidirectional flow, preventing backflow in piping systems.

Can swing check valves be used in vertical downward flow?

No, swing check valves are unsuitable for downward vertical applications due to gravity effects.

Why are spring check valves called silent check valves?

Their spring mechanism closes gently, minimizing noise from slamming compared to swing types.
