A loose flange has two separate parts. One is a stub end and the other is a backing ring. The ring does not get welded to the pipe permanently. Instead, it stays free to move around the stub end. This simple setup lets the ring turn on its own. That makes it much easier to line up with the opposite flange. Thanks to this removable design, people can check the joint, change the gasket, or take the system apart quickly. They never need to cut or damage the welded pipe section.

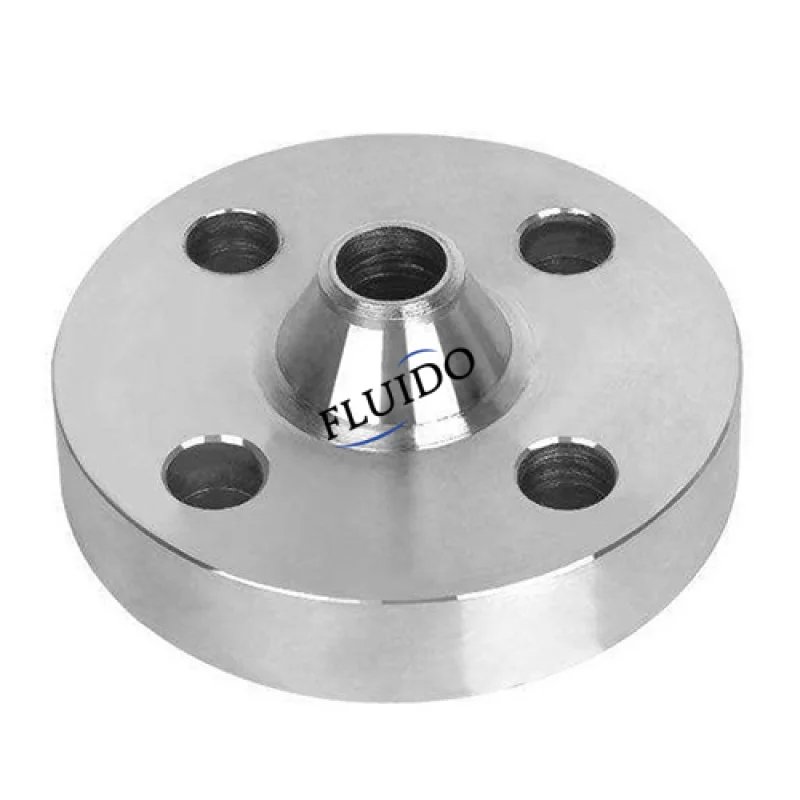

A fixed flange, usually called a weld-neck flange, is one solid piece. Workers weld it straight onto the pipe or fitting end. It normally comes with a long tapered neck. This neck slowly blends into the pipe wall. The shape spreads out stress and gives the connection extra strength. After welding, the joint becomes stiff and steady. It rarely twists, shifts, or leaks even under very high pressure or hot temperatures.
· Loose Flange: A two-piece unit (stub end + loose ring) that allows the ring to spin freely.
· Fixed Flange: One complete piece welded fully to the pipe to create a lasting connection.
The ring on a loose flange can turn easily. This feature makes bolt alignment much simpler and quicker. Even if the mating parts are slightly off, the job still goes smoothly. On the other hand, a fixed flange needs exact welding position from the start. Once it is welded, nothing can move or adjust anymore.
Loose flanges need far less welding work. That usually lowers the total installation expense. The ring itself faces no direct pressure, so builders can pick cheaper material for it. The stub end handles the real load. Fixed flanges demand top-quality forged steel and skilled welders. Both material and labor costs end up higher.
Loose flanges work very well in low-pressure or medium-pressure lines where people open the system often. You see them a lot in water supply networks, paper factories, and general processing plants. Fixed flanges shine in tough conditions. They handle high pressure and heat in chemical plants, power stations, offshore platforms, and petrochemical units where leaks simply cannot happen.
Maintenance stands out as the biggest benefit of loose flanges. Workers can slide the ring off quickly to clean, inspect, or replace the gasket. The welded stub end stays untouched. Fixed flanges usually need cutting or heavy disassembly for the same job.
Operating Conditions: Think about pressure, heat level, and the fluid type. Fixed flanges suit harsh, demanding environments better.
Maintenance Requirements: When the line needs regular service or quick disassembly, loose flanges cut downtime greatly.
Installation Constraints: In tight spaces or far-away locations, less welding saves a lot of trouble.
Stress Distribution: Fixed (weld-neck) flanges spread stress evenly through the tapered neck. This boosts resistance to repeated loading.
Alignment Flexibility: Loose flange rings turn freely, so mating faces line up even with small errors. This helps in repairs or tight pipe layouts.
For procurement teams, project engineers, and B2B buyers who need dependable industrial flanges, FLUIDO brings decades of real experience. FLUIDO has made flanges, valves, and pipe fittings since 1994 and holds ISO 9001 certification at all its plants.
Their wide range covers weld-neck, slip-on, socket weld, lap-joint, blind, and backing flanges built to ANSI/ASME, EN, and DIN standards.
To discuss custom needs, request drawings, or get a fast quote, reach out to FLUIDO as your trusted flange manufacturer and supplier.
