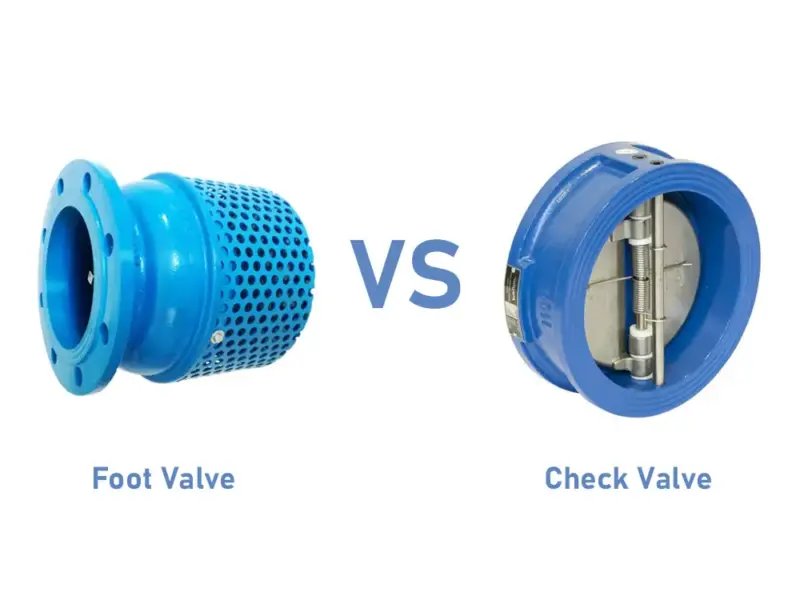

When people build or fix pump systems, picking the correct valve really matters for getting good performance and making equipment last longer. Two valves that often confuse people are foot valves and check valves. Both stop water from flowing backward and help keep the system working properly, but their shapes, uses, and effects on pump efficiency are quite different.
A foot valve is a special kind of one-way valve placed right at the lower end of the suction pipe, usually under water. Its main jobs are simple yet important:
1. Keeping Prime: When the pump stops running, the foot valve shuts tightly. This traps water inside the suction line so the pump stays ready to start again without air problems.
2. Blocking Dirt: Nearly all foot valves come with a built-in strainer. This mesh screen catches sand, leaves, and small stones before they reach the pump and cause damage.
3. Easy Working Style: Inside, it usually has a flapper or poppet part. Suction lifts it open easily. When suction stops, gravity and the water weight above push it closed again.
Materials change based on the job. Common choices stay brass, stainless steel, and PVC. People pick them for rust protection, toughness, temperature limits, and pressure needs.
A check valve, sometimes called a non-return valve, lets liquid move only one way. It blocks reverse flow automatically. Unlike foot valves, workers can mount check valves almost anywhere along the pipe. The valve reacts to pressure difference. Higher pressure on the inlet side pushes it open. When pressure drops or reverses, it closes by itself.
There are several common styles of check valves:
· Ball check valves: A small ball rises with flow and drops back to seal the seat. These work well in upright pipes.

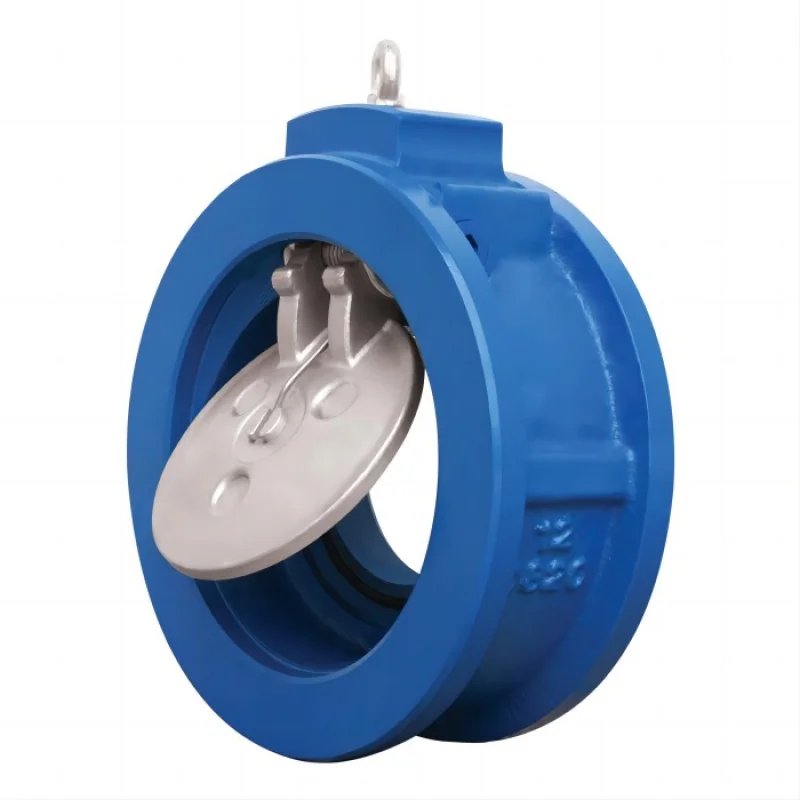

· Swing check valves: A hinged disc swings open for forward flow and swings shut when flow tries to go backward.
· Lift check valves: The inside piece moves straight up with flow and falls down to block reverse movement.
People use check valves on both suction and discharge sides in many industries.
Knowing how each valve is built helps decide the best choice:
· Foot Valve Design: These valves have a strong body that includes a strainer and a basic closing part (flapper or poppet). The strainer keeps solids away from the pump. Because of the extra strainer, foot valves usually create a bit more flow resistance.
· Check Valve Design: Most check valves stay smaller and simpler. Ball and swing types especially have fewer parts. This design lowers pressure loss during normal operation.
These building differences affect speed, system layout, and daily upkeep.
· Foot Valve: Workers place it at the very bottom of the suction line, fully under water. It connects with NPT threads, flanges, or similar fittings. The valve must stay completely covered by liquid and sit above muddy bottoms to avoid blocking. Once set in deep wells, reaching it for repair becomes tough.
· Check Valve: It fits anywhere in the line — suction side, discharge side, or middle sections — as long as the arrow points the right way. Maintenance stays much easier because the valve stays reachable.
Choosing depends largely on how the whole piping system is arranged.
Brass: Tough and resists rust well; handles temperatures around 200 °F.
PVC: Light and cheap; fits irrigation or shallow wells (up to 150 psi), but not for hot water.
Cast Iron: Chosen when large flow and heavy strength are needed.
Stainless Steel: Perfect for harsh chemicals or very hot/cold settings; common in food and chemical plants.
Bronze: Great for seawater areas because it fights saltwater corrosion.
CPVC / Plastic: Fine for gentle liquids at normal temperatures.
Material decisions depend on the liquid type, working pressure, heat level, and outdoor conditions.
Well Systems: Deep wells or high-lift setups stay primed with a foot valve.
Irrigation: Pumps pulling from lakes or tanks keep water in the line thanks to foot valves.
Sump Pumps: Basement flood pumps stay ready because the valve holds water.
Municipal Water Supply: Stops water from flowing back into mains.
HVAC Systems: Controls refrigerant or cooling liquid direction.
Industrial Processes: Protects equipment in refineries and chemical lines.
Fire Protection Systems: Makes sure water moves only forward during emergencies.
Advantages:
· Keeps pump primed so it starts fast every time.
· Built-in strainer stops dirt from harming the pump.
Disadvantages:
· Strainer can clog and needs regular cleaning.
· Hard to reach when placed deep underground.
· Poor maintenance might cause sudden pressure spikes.
Advantages:
· Blocks backflow reliably in almost any position.
· Simple parts mean fewer breakdowns.
· Works in horizontal or vertical pipes.
· Many styles fit different flow speeds.
Disadvantages:
· Some styles create noticeable pressure drop.
· Moving parts can wear quickly at high speed.
· Wrong mounting direction ruins performance.
When deciding between foot valves and check valves for best pump efficiency, think about these points consider system configuration, maintenance needs, and operating conditions.
Foot valves maintain prime and include a protective strainer. Check valves offer easier installation in complex piping, lower flow resistance, simpler maintenance, and lower upfront cost, making them suitable for applications where accessibility matters.
No — foot valves are built only for suction lines and close using gravity plus water weight. Check valves work better on discharge because they react only to pressure changes.
It depends on water cleanliness. In muddy or leafy sources, check and clean monthly. In clear water, every three to six months may be enough.
If the sealing part fails, water can rush backward. This may harm the pump or create strong water hammer shocks. Regular checks and correct mounting prevent most problems.
