In any pipeline system, getting the valve flow direction right is non-negotiable for smooth operation and long-term reliability. Install them backward, and the consequences range from minor leaks to catastrophic failures: seals blow, flow turns chaotic, pressures spike, and equipment can suffer irreversible damage.

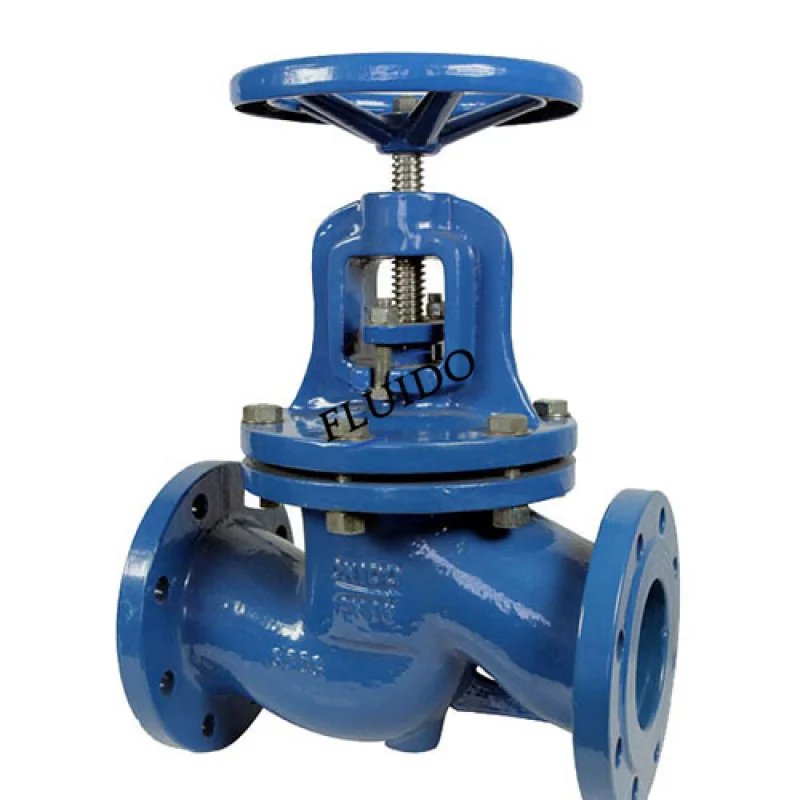

Globe valves are the go-to for throttling and isolation in industrial lines. The stem sits perpendicular to the flow path, and the disc presses flat against the seat. Fluid must enter below the disc and exit above—the classic “low-in, high-out” rule.
· Sealing boost from fluid pressure: In the correct direction, the media helps push the disc onto the seat for a tighter seal.
· Smooth throttling: The disc-seat gap creates precise resistance only when flow is correct. Backward installation throws control out the window—torque skyrockets, adjustment becomes jerky, and stem damage is almost guaranteed.
Look for the arrow cast into the body—it points the only way fluid is allowed to go.
Check valves (also called non-return or one-way valves) exist for one job: stop fluid from flowing backward. That makes flow direction their entire reason for being.

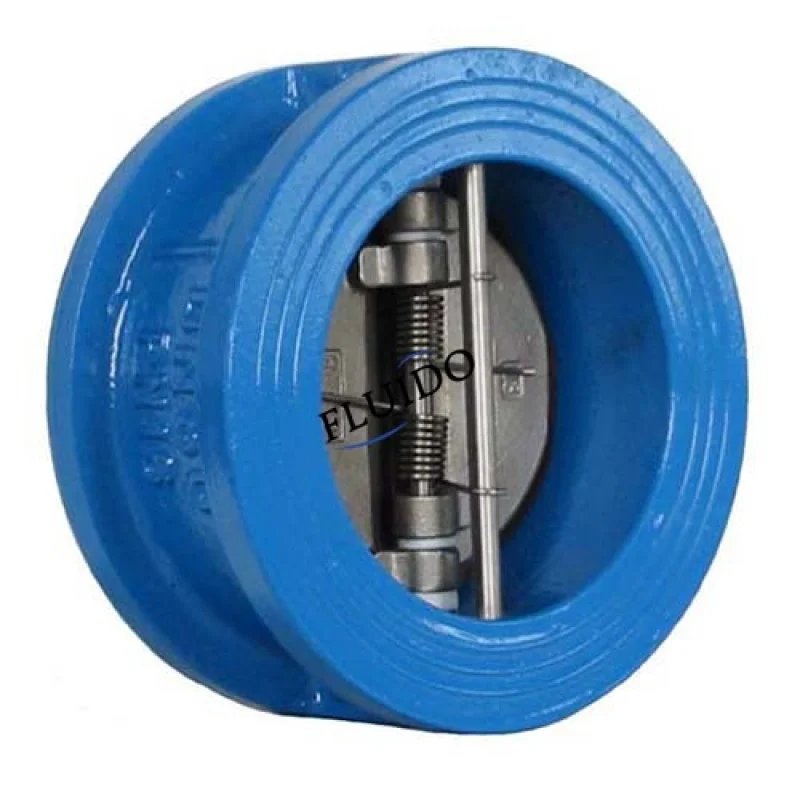

These passive guardians rely on pressure differences to work—no handles, no actuators. Common types include lift check valve, swing check valve, and dual-plate check valve, but the rule is universal: forward open, backward closed.
Pressure reducing valves (PRVs) take high inlet pressure and deliver a steady, lower outlet—automatically. The sequence is fixed: high → throttle → low, controlled by discs, seats, springs, and diaphragms.
Correct flow sends high pressure through a controlled orifice. Outlet pressure feeds back through a diaphragm or piston to adjust the opening and maintain stability.
Install it backward? High pressure floods the feedback chamber and spring. The valve can’t regulate—pressure either stays high (no reduction) or surges uncontrollably. Pipes burst. Equipment fails. In gas systems, explosions become real risks.
Safety valves are the system’s emergency vent: when pressure exceeds the set limit, they open to release excess and prevent rupture.
Inside: a spring-loaded disc. System pressure pushes up against the spring; when it wins, the disc lifts and fluid escapes. Pressure drops, spring wins, disc reseats.
The outlet must also vent freely to atmosphere or a safe drain—never blocked or reversed.
Several specialized valves also require correct orientation:
Automatically drain condensate while trapping steam. Forward flow uses condensate weight to open the mechanism; steam buoyancy keeps it closed. Backward: Condensate can’t enter, steam leaks, efficiency drops. Arrow points to drain outlet.
Standard diaphragms are forgiving, but straight-through models for chemicals or food need correct flow to evenly load the diaphragm. Backward: Uneven pressure warps the diaphragm, causing tears and leaks. Arrow follows media path.
1. Look for the arrow – If it’s there, flow direction matters. Period.
2. Check the internals – Discs, springs, diaphragms, or throttling elements usually mean direction-sensitive.
1. Never override the arrow for convenience.
2. Verify high/low sides before mounting (especially PRVs and safety valves).
3. Leave access space for future corrections.
4. Pressure test after install – Leaks, binding, or poor control? Check flow direction first.
