Ball valves and gate valves both fall under the group of shut-off valves. In hydraulic setups, these tools stop or control fluid movement. They work based on fully open, closed, or middle settings. Ball valves open and close fast. They mainly stop or cut off flow instead of adjusting it. Gate valves let you open them partway. Yet, this can cause fluid swirling and extra drag losses.
A gate valve — also called a sluice valve — has a gate or wedge-shaped disc. This disc shifts straight across the fluid path. When you lift the gate, fluid moves freely. When you drop it, the flow stops.
img.Metal-seal Flanged End Gate Valve.webp
Many kinds of gate valves exist. In the FLUIDO product line, materials include cast iron, ductile iron, cast steel, stainless steel, and forged steel. Connection types can be flanged or butt-welded. Construction styles include rising-stem, non-rising-stem, and OS&Y (outside-screw & yoke).
Gate valve design often has “full port” flow paths. It includes solid or split wedges. There are renewable seat rings. Options like extended stems or impact handwheels depend on customer needs.
Because they block little when open and come in many materials and sizes, gate valves work well in big pipelines. They suit industrial fluid systems and wastewater treatment. They fit other tough jobs where you need strong shut-off or almost clear passage when open.
A ball valve uses a hollow, pierced sphere. This sphere turns around its axis to manage fluid flow. When the ball's hole lines up with the pipe, fluid passes. When you rotate the ball 90°, the hole sits sideways and blocks the flow.
img.1PC Stainless Steel Threaded Ball Valve.png
The action needs just Nod a quarter turn. So, the valve opens or closes quickly with little effort. This makes ball valves very handy for jobs that need often or swift shut-off.

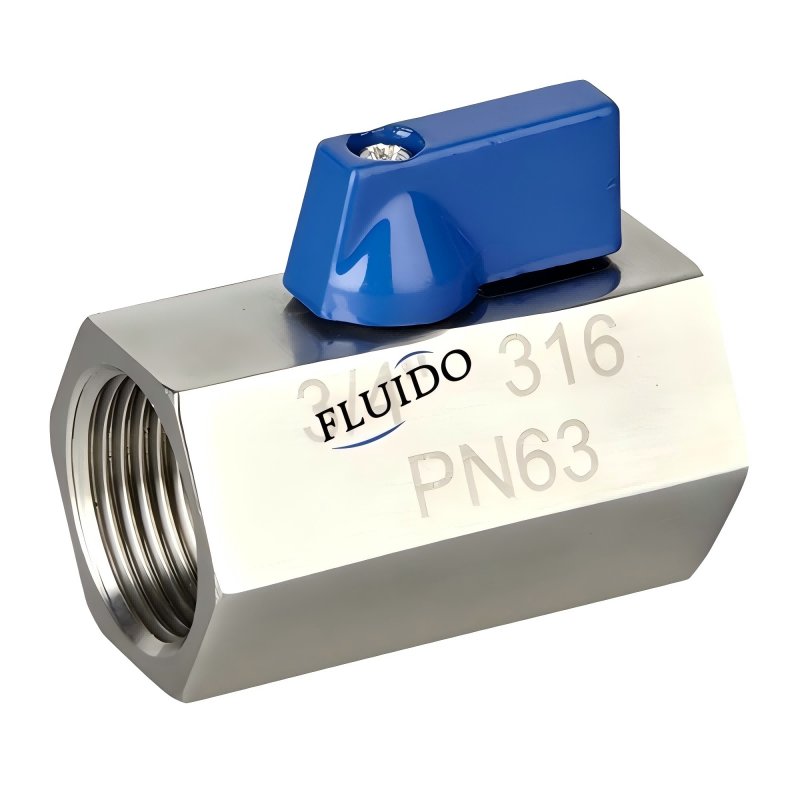

These include stainless steel threaded ball valves (1pc ball valve, 2pc ball valve, 3pc ball valve). There are flanged ball valves, floating ball, full-welded, wafer type, and even 3-way and multi-way ball valves.
Ball valves usually provide tight shut-off rather than flow control. Still, some styles (like metal-seated or special-port) may allow a bit of flow adjustment.
Their main strengths include a fully clear path when wide open. They cause minimal pressure drops. This keeps hydraulic performance at its best. In middle spots, gate valves choke flow inside pipes well.
The name "gate valve" comes from the closing disc's shape. It comes in straight blade-style or slanted wedge forms. The blade type fits big-volume tasks. Both kinds use the disc's up-and-down motion for sealing. You turn a threaded stem linked to the disc. A handwheel's spinning motion drives it. It takes several turns to go from open to closed. This makes the process careful and slow. Such steady action stops hydraulic shocks. It protects pipes from quick pressure jumps.
The closing part is a round disc with a hole in line with the flow. When open, the hollow ball fits smoothly into the pipe. It allows free fluid movement. You close it by turning the ball 90 degrees. This fully stops the flow.
This quarter-turn motion allows quick hand or machine control. It suits cases that need fast action. Air or electric actuators help link into auto systems. You see this in drug or food making sites.
In short, gate valves focus on separation and little resistance in high-flow, rare-use cases. Think pipeline fixes. Ball valves excel in quick-shut-off tasks across clean fluid setups, like auto factory processes. Picking the right valve boosts system trust, cuts energy costs, and lengthens gear life.
Gate valves need several twists of the handwheel for full opening or closing. This gives steady flow control. Ball valves work with one 90-degree turn for fast shut-off.
No, ball valves are built for on/off service only. Using them partway can cause wear and is not advised. Gate valves provide better throttling skills, though not perfect.
Quick closing in ball valves can create water hammer. This might harm pipes. Gate valves' slower action reduces this risk. It makes them good for delicate hydraulic networks.
Factory work needs dependable fluid control answers to keep efficiency and safety. As a leading manufacturer, supplier, and factory focusing on top-quality valves, FLUIDO offers a wide range of gate valves and ball valves made for various uses. With over 25 years of skill, FLUIDO makes cast iron gate valves that meet API 600. This ensures smooth fit into petroleum, chemical, and city systems. Contact FLUIDO today to talk custom specs, ask for quotes, or check catalog downloads. Boost projects with tested accuracy and performance.
