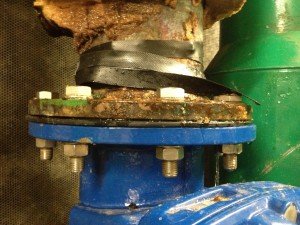

In factory pipes and pressure gear upkeep, flange joint leaks stay a tough problem. Especially when carbon steel or stainless steel flanges join with 304-grade bolts, workers often see quick leaks during work—even after tight setup at start.
Fixing leaks needs basic know-how of bolt stuff. These four types fit in the austenitic stainless steel 300 series (called "18-8 stainless steel"), matched to ANSI/ASTM rules. The chart below shows main gaps:
Material | ASTM Designation | Carbon Content (%) | Yield Strength at Room Temp (MPa) | Max Recommended Temp (°C) | Key Differences |
304 | AISI 304 | ≤0.08 | 205 | 816 | Base grade, good corrosion resistance, medium strength |
304L | AISI 304L | ≤0.03 | 170 | 538 | Low-carbon variant, superior intergranular corrosion resistance |
316 | AISI 316 | ≤0.08 | 210 | 816 | Molybdenum-added for enhanced corrosion and heat resistance over 304 |
316L | AISI 316L | ≤0.03 | 200 | 538 | Low-carbon with molybdenum, dual benefits in corrosion and intergranular resistance |
Two key points come from stuff guides:
1. The "L" means low carbon (≤0.03%). It makes 304L/316L tougher against intergranular corrosion. This issue pops up in hot, wet spots. So, they suit chemical or drug jobs with harsh fluids.
2. Molybdenum in the 316 series ups fight to pitting in chloride spots (like seawater or salty mixes). And it boosts heat steadiness. Thus, it fits shore or hot setups.
Yet, a common weak spot stays: pretty low power. Yield strengths peak at 210 MPa. That's way under high-strength alloy steels (for example, 35CrMoA at ≥835 MPa). This flaw opens door for leaks in hard flange uses.

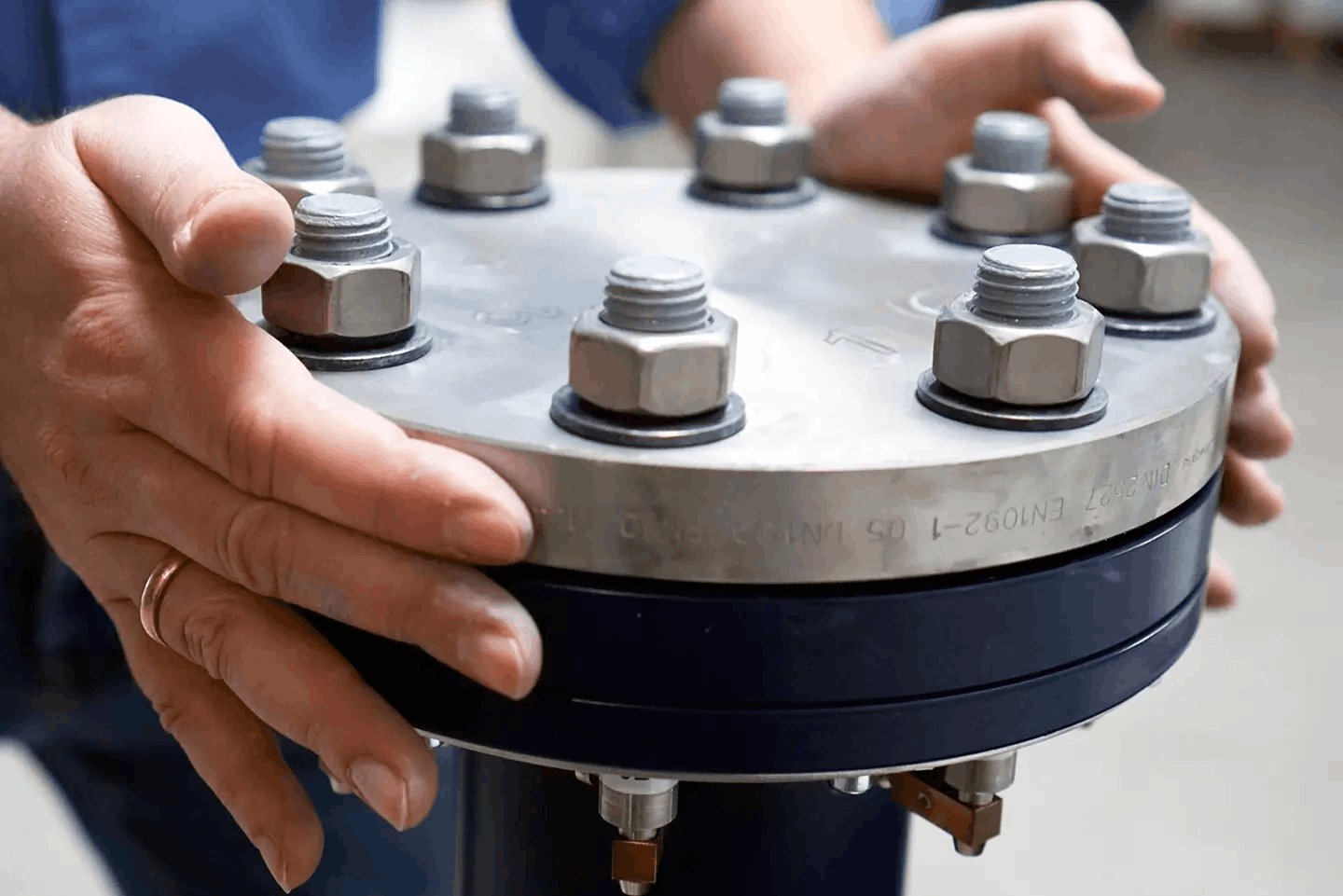

Stainless bolts look solid from rust fight. But flange seal depends on keeping bolt preload. This squeezes the gasket well. Problems hit in three big spots when using 304/316 bolts:
Thermal Expansion Mismatch Causes Preload Loss on Heating Mixing carbon steel flanges with 304 stainless bolts brings uneven growth. It eases bolt pull.
1. Data: At 50°C, 304 stainless grows at 16.51×10⁻⁶/°C. Carbon steel does 11.12×10⁻⁶/°C (from growth guides).
2. Impact: As heat climbs, bolts stretch more than fixed flanges. They act shorter under squeeze. And preload drops.
Hot plans need growth gap differences ≤5×10⁻⁶/°C. 304-carbon steel pairs go over this. So, leak risks hide from day one.
Insufficient Strength to Meet Sealing Preload Requirements Gasket push needs high bolt preload. 304/316 often can't hold it.
1. Requirements: Bolt stress must hit 70% of yield for lasting seal. For 304 (205 MPa yield), top preload stress is 143.5 MPa. Alloy steels like 35CrMoA let 584.5 MPa—over four times more.
2. Problem: Class 150+ flanges or ones with metal/spiral-wound gaskets want preload past 304 caps. It's like tying big weight with thin cord.
Fastener rules limit austenitic bolts with yield ≤250 MPa to no-pressure or low-pressure rubber gasket cases.
Creep Relaxation at Elevated Temperatures Leads to Progressive Loosening Hot runs spark creep in 304/316 stainless. That's slow shape change under steady stress.
1. Data: At 300°C for 10,000 hours (~14 months), 304 bolts drop over 50% preload. At 400°C, losses top 70% (per pressure vessel design data).
2. Cycle: Lower preload weakens gasket squeeze. Leaks start. Tightening again risks yielding the bolt. It leads to lasting bend. And failure on reuse or break.
These reasons show why "tight at install" joints fail later. This hits cyclic or high-pressure systems most.
Not every 304-series bolt is bad—pick depends on grade. ASTM sorts 304/316 bolts into groups:
Material | ASTM Class | Treatment | Yield Strength (MPa) | Applicable Scenarios |
304 | B8 Class 1 | Solution-treated only | 205 | Prohibited for pressure flanges |
304 | B8 Class 2 | Solution + strain-hardened | 550 (for ≤3/4" sizes) | High-temp, medium-pressure |
316 | B8M Class 1 | Solution-treated only | 210 | Prohibited for pressure flanges |
316 | B8M Class 2 | Solution + strain-hardened | 550 (for ≤3/4" sizes) | High-temp, corrosive media |
Pressure vessel and flange setup guides pick B8 Class 2 (304) or B8M Class 2 (316) for pressure joints. This goes extra for heat cycles. Their power doubles normal grades. It keeps seal safe.
For Class 300+ high-pressure jobs, alloy steel bolts like ASTM A193 B7 (same as 35CrMoA) shine in creep and tire fight. They suit long high-pressure work per high-pressure piping guides.
Q: What causes sudden flange leaks despite initial tight installation?
A: Thermal expansion mismatch, insufficient bolt strength, and creep relaxation reduce preload over time, allowing gasket decompression.
Q: How does molybdenum improve 316 bolts?
A: It enhances pitting corrosion resistance in chlorides and stabilizes performance at higher temperatures.
Q: When should alloy steel bolts be used over stainless?
A: In high-pressure (Class 300+) or severe creep conditions, where yield strengths exceed 500 MPa are needed.
Q: Can low-carbon "L" grades prevent leaks?
A: They improve corrosion resistance but do not address strength or expansion issues—pair with proper grading.
