Flanges are vital parts in industrial piping setups. They act as links between pipes, valves, pumps, and other gear. Among these unique types, blind flanges and spectacle blind flanges are notable. They excel at stopping or adjusting fluid movement effectively.

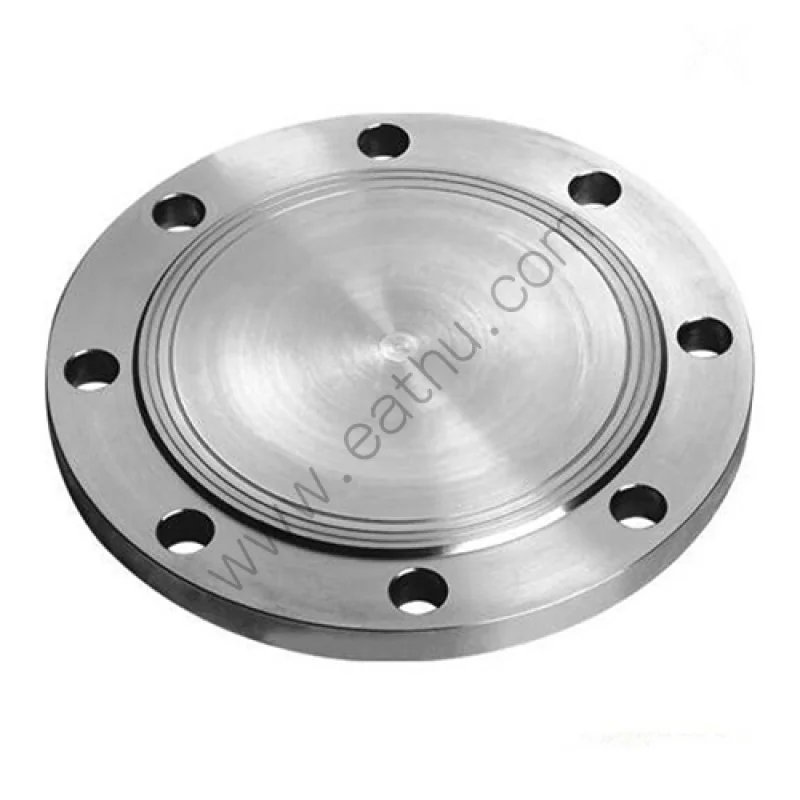

A blind flange is a firm, round piece with no opening in the middle. It is crafted to fully close off a piping system’s end. Its main job is to halt pipelines, stop fluid flow, and enable pressure checks. Blind flanges come in materials like carbon steel, stainless steel, and alloy steel. This variety ensures they suit different industrial settings.

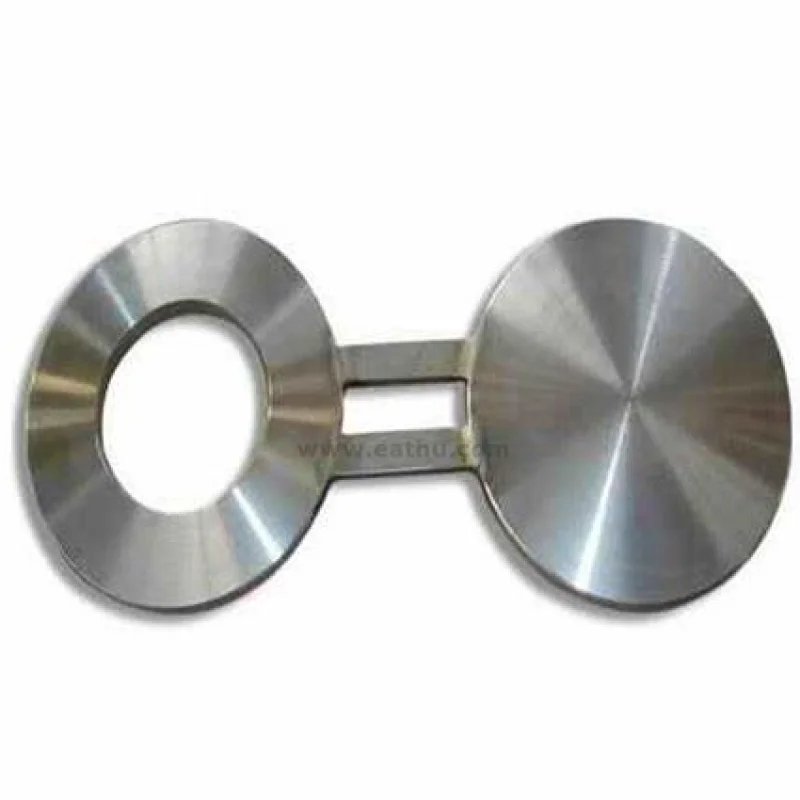

A spectacle blind flange includes two metal circles joined by a slim metal strip, looking much like eyeglasses. One circle is solid and blocks flow, while the other has a hole to let fluid pass. This setup lets workers shift between open and shut states without taking the flange out entirely.
Spectacle blind flanges are often used where systems need regular flow adjustments or brief isolation for checks and repairs.
Design Difference: Blind flanges are basic, single-unit items that permanently stop fluid until removed. On the other hand, spectacle blind flanges have a two-part structure. This allows swift changes between flow and blockage without full removal.
Material choices for both depend on aspects like pressure levels, temperature settings, and rust resistance needs. Spectacle blind flanges require a trickier production process due to their moving sections.
Function Difference:
Blind flanges are typically placed at pipeline ends. Their sturdy build offers great resilience and longevity, fitting them for high-pressure zones.
A spectacle blind flange functions by turning between two states—open and closed. In the open state, the pipeline stays clear, letting fluid move freely. When turned to the closed state, the solid part blocks the line, stopping fluid flow.
The raised face (RF) design enhances sealing power by focusing pressure on the gasket zone. Both blind and spectacle blind flanges can have this feature. It improves their sealing ability in high-pressure uses.
Raised face spectacle blinds seal better than flat-face versions. This makes them a top pick in fields where leaks must be avoided. The extra force on the gasket ensures a firm, leak-proof bond.
Blind flanges suit high-pressure setups needing lasting or short-term isolation. They often appear in pipeline endings, water pressure tests, and expansion plans.
Spectacle blind flanges fit piping systems requiring regular access for cleaning, checks, or upkeep.
Blind and spectacle blind flanges find wide use in fields like oil and gas, chemical processing, and water treatment. These areas demand dependable pipeline isolation to maintain efficiency and safety. Spectacle blinds especially help in refineries. There, fluid control and safety rules call for adaptable yet secure options.
lCorrect positioning, gasket choice, and bolt tightening are key for a safe blind flange installation.
lSafety steps, like easing pressure before removal, are vital in high-pressure systems.
lMark "open" and "closed" positions clearly.
lProper alignment during setup prevents undue strain on the piping system.
Removing a blind flange under pressure demands caution to avoid mishaps. Workers must first release internal pressure with safe methods before loosening bolts. Special tools might be needed for secure removal in high-pressure areas.
With more than 20 years in the field, FLUIDO excels at making high-quality steel valves, fittings, and flanges. Serving over 35 countries, FLUIDO provides tailored blind and spectacle blind flanges. Sizes range from ½” to 24”, with pressure ratings of Class 150–900LB. Their items face tough quality controls and surface treatments to meet top industry benchmarks.
We provide precise crafting, rust-proof coatings, and pressure rating adherence. Strict quality checks and thorough testing are crucial.
Blind flanges and spectacle blind flanges play distinct yet equally critical roles in industrial piping systems. Blind flanges deliver a simple, affordable way to seal pipelines. Meanwhile, spectacle blind flanges provide flexibility for systems needing regular access.
Boost your pipeline safety and efficiency with FLUIDO’s expertly crafted blind and spectacle blind flanges. Check out our customization services to match your project’s specific needs—reach out to our team today!
