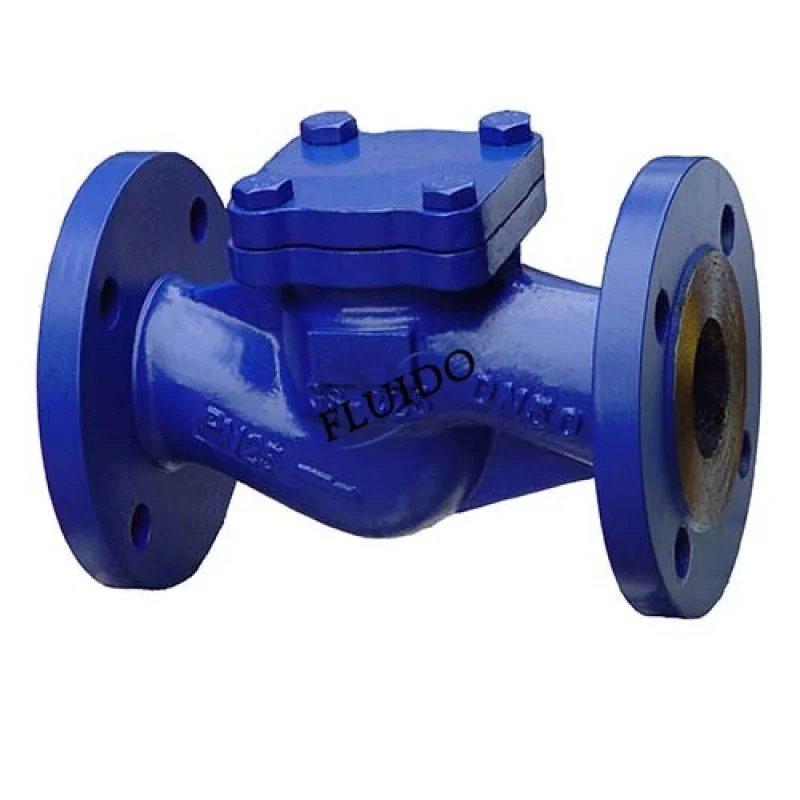

A lift check valve is a crucial component in many piping systems, designed to ensure unidirectional fluid flow and prevent backflow. These valves are ensuring backflow prevention and maintaining continuous, dependable unidirectional flow even under challenging pressure conditions. The primary function of these valves is to allow fluid to flow in one direction while automatically stopping reverse flow, protecting the system from potential damage.
![Lift Check Valves 2\](http://vhost-hk-s06-cdn.hcwebsite.com/97d2166b701070e62f784e29579f247f/data/thumb/res/en/20250613/8387afcd362ac84e.png_20250613120551_1920x0.jpeg?v=3ltExMKA "Lift Check Valves 2\")
Lift check valves are widely used across various industries due to their reliability and efficiency. They are commonly found in water supply systems, HVAC systems, oil refineries, chemical processing plants, and power generation facilities. These valves are particularly vital in applications involving high-pressure or high-temperature fluids.
Lift check valves need to be placed flat. Gravity helps them close. A proper flat setup makes the valve work great. The disc or ball inside moves easily with the liquid. If set up wrong, the valve might not work right. It could even break.
Gunmetal, also called red brass, is often used for the lift check valve body. It fights rust well. This material mixes copper, tin, and zinc. It’s tough and resists wearing out.
The disc is the moving piece. It controls liquid flow. It can be shaped like a plug or a ball. When liquid flows the right way, the disc lifts off its seat. If flow stops or goes backward, gravity or back pressure pulls it down to close.
The seat makes a tight seal when the disc shuts. This stops backflow. The seat’s material depends on the place it’s used and the kind of liquid.
Lift check valves use pressure changes in pipes to work.
In normal flow, pressure from the start side lifts the disc off its seat. This lets liquid pass through. When flow stops or goes backward, gravity or back pressure pushes the disc back down. This blocks the wrong-way flow fast.
The difference in pressure between the start and end sides runs the lift check valve. Higher start pressure lifts the disc to open it. If pressures even out or flip, the disc closes on its own.
The auto-closing system uses gravity and back pressure. It acts fast when flow reverses. This keeps the system safe from harm caused by backflow.
Knowing how lift check valves stack up against other types helps pick the right one.
Feature/Criteria | Spring-Loaded Check Valves | ||
Operation | Disc lifted by fluid flow | Hinged disc swings open | Spring compresses/expands |
Advantages | Good sealing for high-pressure use | Low pressure drop | Can be installed in any orientation |
Limitations | Higher pressure drop | Slower response time | Higher cost |
Applications | Clean fluid systems | Water/wastewater systems | Systems needing quick response |
Installation Flexibility | Horizontal only | Primarily horizontal | Any orientation |
Cost | Moderate | Low | Higher |
Pros: Durability, Low Maintenance, High Pressure Suitability
Lift check valves are sturdy parts. They need little upkeep. Their tough build makes them great for high-pressure places like steam or oil lines.
Cons: Water Hammer, Debris Sensitivity, High Pressure Drop
One problem is water hammer when they close fast. Dirt can also stick in moving parts like discs. This means more fixes. The bigger power loss across these valves might use more energy.
Water Supply Systems: Lift check valves stop backflow and keep pressure steady.
Boiler and HVAC Systems: In boilers, lift check valves stop backflow of steam or hot water. They control flow of coolants and other liquids.
Oil & Gas Pipelines: Lift check valves stop backflow of oil, gas, or other liquids. Their sturdy build handles super high pressures and heat in oil and gas work.
Chemical Processing:Lift check valves stop backflow that could mess up products or cause danger.
Fire Protection and Marine Systems: In fire systems, lift check valves keep water from going back into the main line
1. Connection Size and Type
2. Temperature Range
3. Material (Body and Seals): Gunmetal (red brass) is a top choice for the body. It fights rust well. Seal materials like Teflon (PTFE) handle heat and chemicals great. This makes them last in tough spots.
4. Maximum Pressure Rating:Common max pressure limits are 16 bar and 20 bar. This makes them good for high-pressure jobs like steam lines or factory pipes.
