In industrial piping setups, butterfly valves have become go-to components thanks to their compact footprint, robust flow handling, and straightforward operation. That said, traditional concentric (centerline) butterfly valves often hit roadblocks like rapid seal wear, steep operating torque, and shortened lifespans in high-pressure, high-temperature, or gritty environments.
This piece breaks down the core benefits of eccentric designs in butterfly valves, explores the main types, and shares practical tips for deploying them in real-world applications.

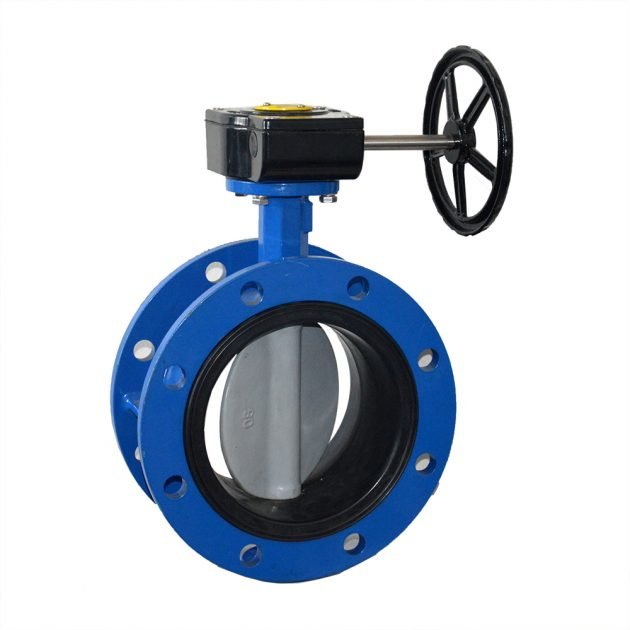

To see why eccentric designs are a big deal, let's first spotlight the flaws in traditional concentric butterfly valves. Here, the valve stem lines up perfectly with the body and disc centerlines. When closed, the disc presses fully around the seat for a "face-to-face" seal. It sounds balanced on paper, but in the field, problems pile up fast:
· Aggressive Seal Wear: As the disc opens and closes, it rubs directly against the seat, creating friction. Throw in particles or high pressure, and you get scratches, dents, and leaks.
· Sky-High Torque Demands
· Narrow Operating Window
The magic starts with precise offsets that let the disc lift off the seat right at the start of opening—and only touch down at the very end of closing. No more dragging across the entire stroke.
By playing with leverage, eccentric designs turn fluid pressure into a helper during opening—instead of a roadblock like in concentric valves.

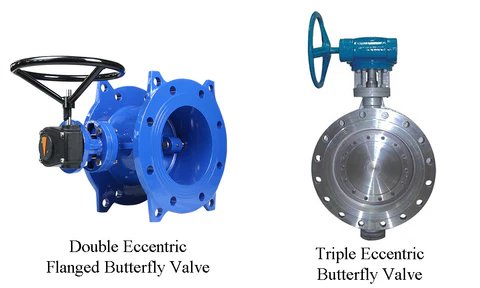

Eccentric butterfly valves come in three flavors, based on how many (and which) offsets they pack. Each one's tuned for specific demands—pick wisely to match your system without overpaying.
The entry-level eccentric: The stem sits parallel to—but shifted from—the disc centerline, usually toward the seat.
· How It Works: On opening, the disc swings away from the seat early, skipping the slide. Closing uses fluid pressure for a snug fit.
· Standouts: Dead-simple build, proven reliability, and budget-friendly. Great for mid-low pressure (PN ≤ 2.5 MPa) and temps up to 300°C in clean-ish flows like HVAC ducts or water mains.
· Watch Out: A bit of friction lingers, so skip it for super-dirty or high-pressure jobs.
· Best For: Everyday lines where you want eccentric perks without the premium price.
Level up: Adds a second offset, tilting the stem away from both the disc center and body centerline for true bidirectional action.
· How It Works: The disc follows an "elliptical path," popping off the seat fast and sealing via a "wedge" effect—line contact with even, intense pressure.
· Standouts: Top-tier shutoff, low torque, and scalability for big pipes (DN ≥ 500 mm). Handles PN ≤ 4.0 MPa, temps to 400°C, and light particulates in steam, chem transport, or power cooling.
· Real-World Win: A chem plant swapped concentric for double eccentric on a DN300 caustic soda line (PN2.5 MPa, 80°C). Seal life jumped from 3 months to 2 years—saving $10,000/year on fixes.
The heavy hitter for extremes: Layers in a third offset with a cone-shaped seat angled off the body plane.
· How It Works: Offsets team up for a "corkscrew" motion—zero rub on open/close, plus self-tightening under pressure for dead-tight seals. The cone shrugs off grit and corrosion.
· Standouts: Gold-standard leak-proofing (ANSI Class VI, zero leakage); thrives at 600°C, PN ≤ 10.0 MPa, and nasty stuff like acids or hot flue gas. Built to last with minimal upkeep.
· Watch Out: Trickier to make (and pricier), but worth it for high-stakes spots.
· Best For: Petrochem crackers, scrubbers, or nuclear cooling where failure isn't an option.
· Low-Pressure, Room-Temp, Clean Flows (e.g., drinking water, compressed air): Go single eccentric—solid value play.
· Mid-High Pressure/Temp, Mild Dirt (e.g., steam, mild chems): Double eccentric for leak-free muscle without breaking the bank.
· Extreme Heat/Pressure, Heavy Corrosion, Zero Tolerance (e.g., flue gas, acids): Triple eccentric—your reliability anchor.
· Big Pipes (DN ≥ 500 mm): Lean double or triple to tame torque and simplify ops.
Since 1994, FLUIDO has led the charge as a top butterfly valve manufacturer and supplier, crafting high-stakes eccentric models right from our cutting-edge Qingdao, China factory. ISO9001-certified and CE-marked, we deliver single, double, and triple offset valves that nail API 609, EN 593, and GB/T compliance—built for the grind.
