The material detailed information for the butt welding pipe fittings

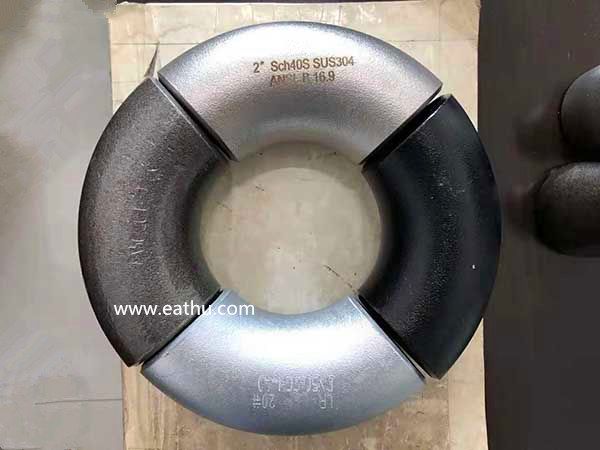

ASME B16.9 is the standard for factory-made wrought butt-welding pipe fittings in sizes 1/2" through 48". Generally speaking, butt-welding pipe fittings are fabricated pieces of pipe that are used either to make changes of direction(elbow&return), close the pipeline end(end caps), branch from the main pipe(tee), or make a reduction in line size(reducer). They can be made from seamless pipes, welded pipes or plates. For material, eathu can provides a wide selection of butt welding pipe fitings, for example, the carbon steel, stainless steel, aluminum alloy and Titanium, the details as below:


1) ASTM A234 Grade. WPB, WPC, WP1, WP12 CL1, WP12 CL2, WP11 CL1, WP11 CL2, WP11 CL3, WP22 CL1, WP22 CL3, WP5 CL1, WP5 CL3, WPR, WP91, WP911


2) ASTM A860 Grade. WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65, WPHY 70


3) ASTM A403 Grade. WP304, WP304L, WP316, WP316L, WP317, WP317L, WP347,WP310S, WPS31254, WP321, WPS31725, WPS31726, WPS33228, WPS34565, WP347H, WP348


4) ASTM B366 Gr. N02200(Ni), N04400(Ni-Cu,Monel), N06600(Ni-Cr-Fe, Inconel 600), N08020(Cr-Ni-Fe-Mo-Cu-Cb, Alloy 20), N08825(Ni-Fe-Cr-Mo-Cu, Incoloy825), N08031(Ni-Fe-Cr-Mo-Cu-Low C, Alloy 31), N06625(Ni-Cr-Mo-Cb, Inconel 625), N02201(Ni-Low Carbon), N08800(Ni-Fe-Cr, Incoloy 800),N08810(Ni-Fe-Cr, Incoloy 810), N10276(Low C-Ni-Mo-Cr, Hastelloy C276), N06022(Low C-Ni-Mo-Cr, Hastelloy C22), N08904(Ni-Fe-Cr-Mo-Cu, 904L)


5) Aluminium Alloy: EN AW-1050 / 1060, EN AW-5083, EN AW-6060 / 6061 / 6063, EN AW-6082, EN AW-5754


6) ASTM B363 Titanium Gr.1, Gr. 2, Gr. 3, Gr. 4, Gr. 5, Gr. 7, Gr. 9, Gr. 12
